Family Designation: EX C# (CAMFIX extension) CAMFIX (ISO 26623-1/2 standard) extension adapters.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  SURFACE FINISH N5  COOLANT THROUGH TOOL
Item Designation: C6 EX C6X100
DCONMS DCONWS LPR CRKS OAL DCP  CSP  GICATGIREMgiic
63.0063.00100.00M20138.00~02.231~4509500 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
4509500 1400504<a href="javascript:OpenDxf('4509500', 'C6 EX C6X100' , 'IscarDxf' , '4509500-C6 EX C6X100');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4509500&itemDesc=C6 EX C6X100"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=4509500&itemDesc=C6 EX C6X100"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
For Adaptation Click on "More Info"
3D Representation
Assembly Video

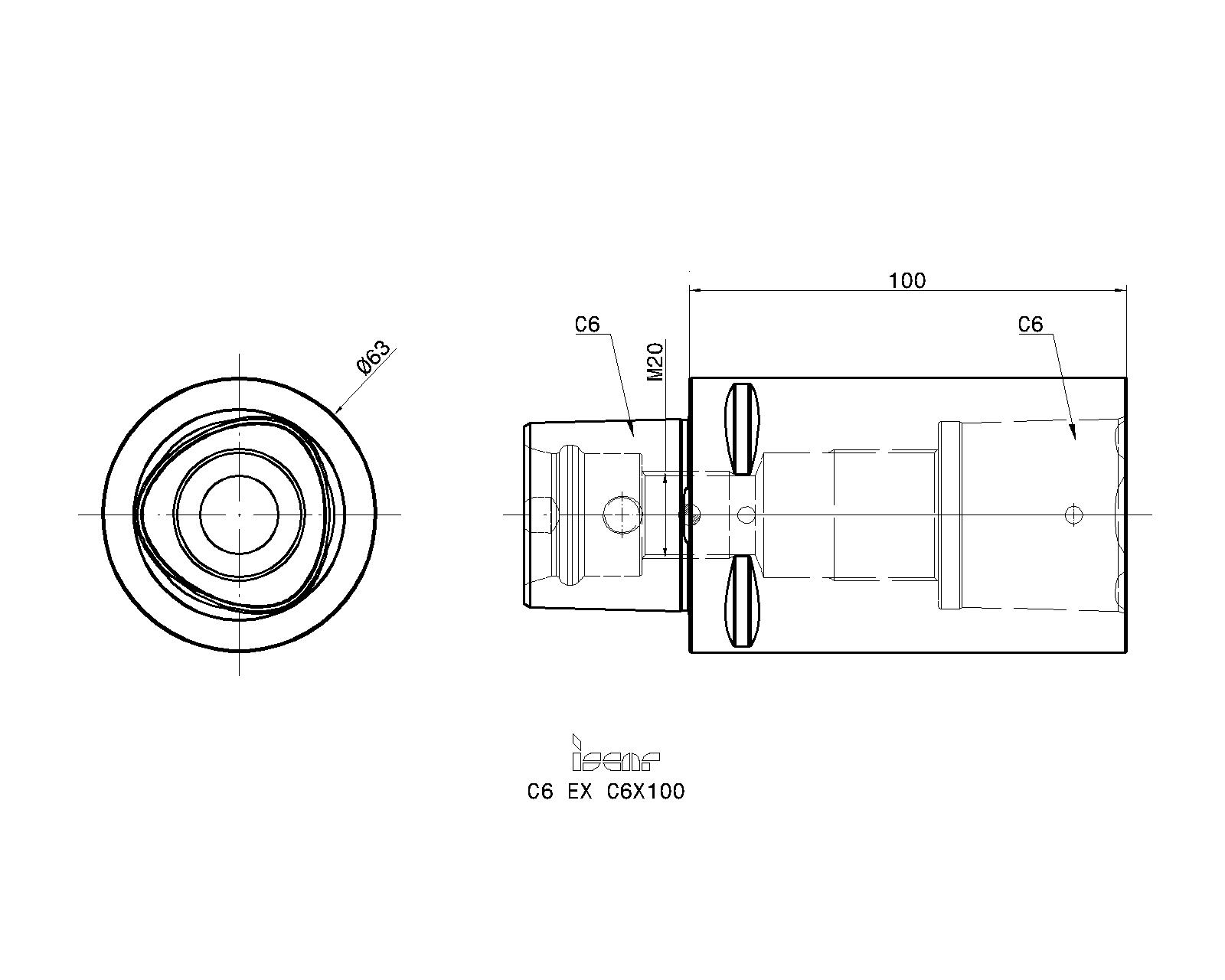

2D Representation
  Spare Parts
4510263SR M20X87 C6/8Tool clamping screw
Details
7004545HW 14.0
(Optional, should be ordered separately)
Hex key
Details
4510265MT RING M30X24XC6/8Ring
Details
4561606COOLING TUBE C6
(Optional, should be ordered separately)
Cooling tube
Details
3313026WRENCH COOL TUBE C6
(Optional, should be ordered separately)
Cooling tube wrench
Details
4510463WRENCH C6-8 DRW NUT
(Optional, should be ordered separately)
Wrench-open
Details
