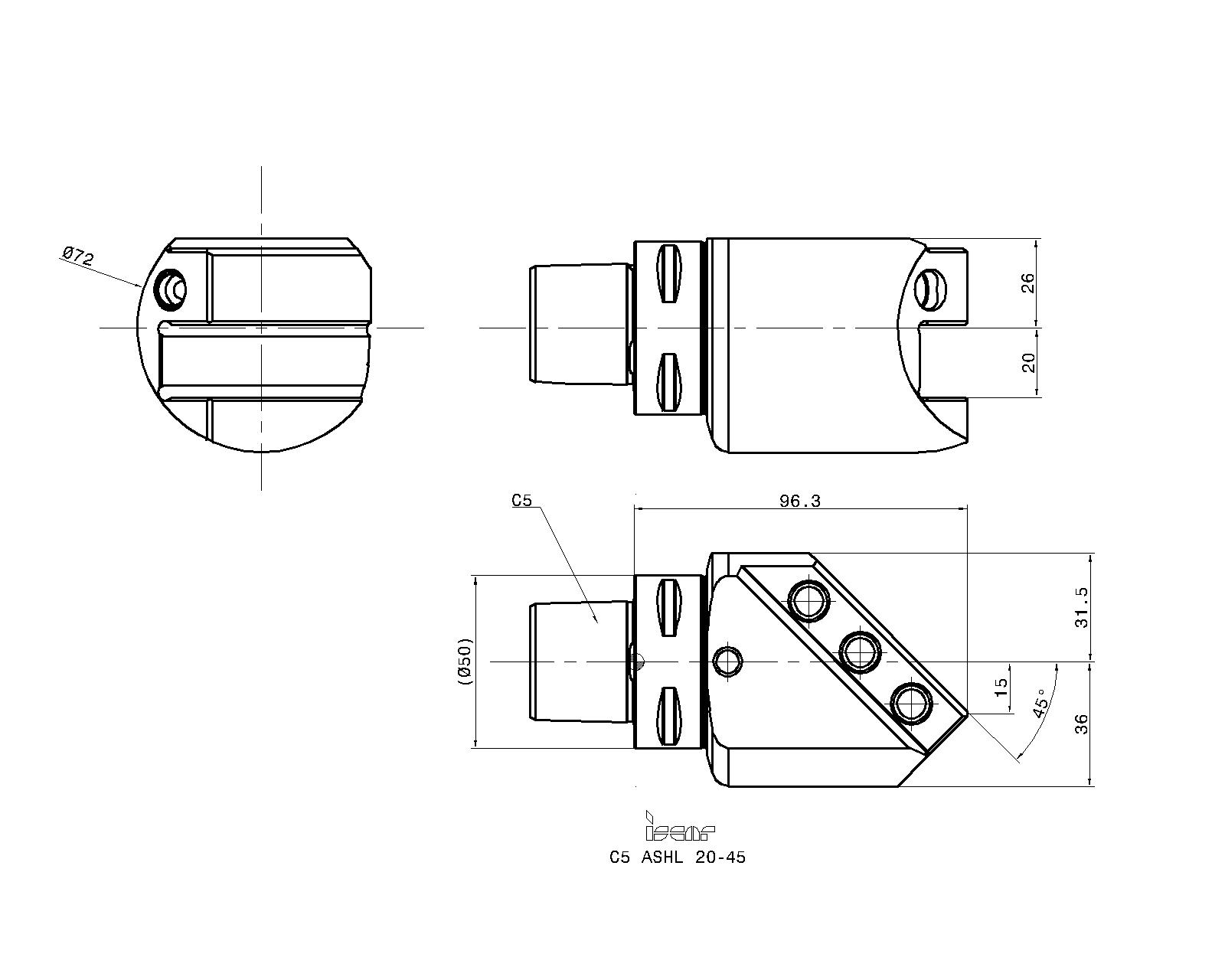

Family Designation: C#-ASHR/L-45 Holders with CAMFIX (ISO 26623-1 standard) shanks, carrying square shank tools for 45° mounting on turn-mill machines.
A left-hand tool in a right-hand adapter are shown

A left-hand tool in a right-hand adapter are shown

 100 BAR (1450 PSI) MAX.
Item Designation: C5 ASHL 20-45
DCONMS H WSC WF LPR LSCWS OAH RADW OAW OAL HAND BD CSP  DCP  GICATGIREMgiic
50.0020.020.015.0096.30-62.0036.067.50157.00~L72.001~14509619 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
4509619 300<a href="javascript:OpenDxf('4509619', 'C5 ASHL 20-45' , 'IscarDxf' , '4509619-C5 ASHL 20-45');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4509619&itemDesc=C5 ASHL 20-45"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=4509619&itemDesc=C5 ASHL 20-45"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
3D Representation
Assembly Video
2D Representation
  Spare Parts
7005680SR M10X25 DIN915Socket head cap screw
Details
7000045HW 5.0
(Optional, should be ordered separately)
Hex key
Details
7003854SATZ-M10X1-M5Cooling nozzle
Details
7006159WRENCH NOZZLE HP M10
(Optional, should be ordered separately)
Cooling tube wrench
Details
4561605COOLING TUBE C5
(Optional, should be ordered separately)
Cooling tube
Details
3313025WRENCH COOL TUBE C5
(Optional, should be ordered separately)
Cooling tube wrench
Details
