Family Designation: C#-ASHR/L-45

Holders with CAMFIX (ISO 26623-1 standard) shanks, carrying square shank tools for 45° mounting on turn-mill machines.

A left-hand tool in a right-hand adapter are shown

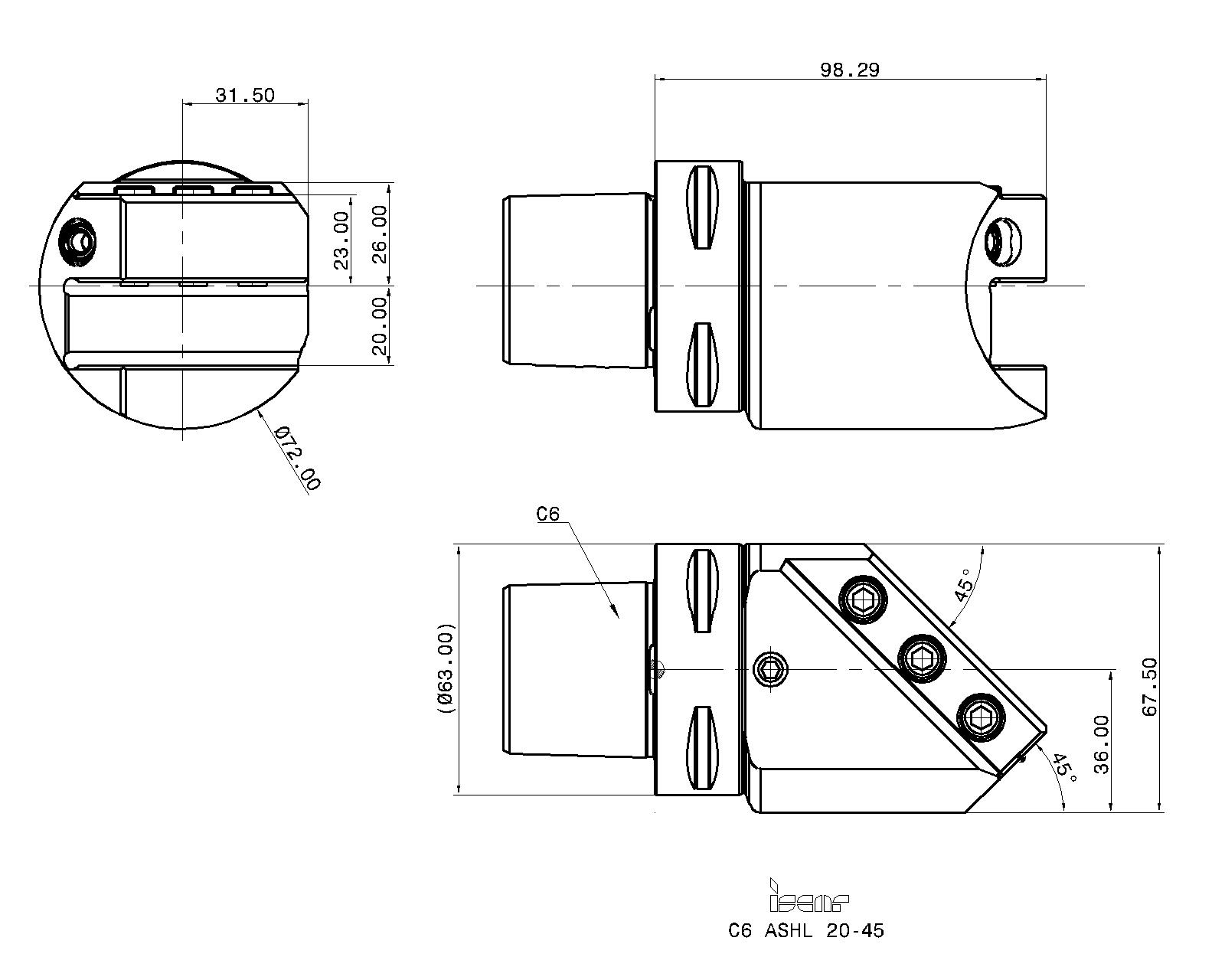

Item Designation: C6 ASHL 20-45

DCONMS	H	WSC	WF	LPR	LSCWS	OAH	RADW	OAW	OAL	HAND	BD	CDI	CSP	GICAT	GIREM	giic
63.00	20.0	20.0	15.00	98.30	-	62.00	36.0	67.50	140.00~	L	72.00	1	1~	4509621		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4509621		3	0	3				<a href="javascript:OpenDxf('4509621', 'C6 ASHL 20-45' , 'IscarDxf' , '4509621-C6 ASHL 20-45');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4509621&itemDesc=C6 ASHL 20-45"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4509621&itemDesc=C6 ASHL 20-45"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1


7005680	SR M10X25 DIN915	Socket head cap screw	Details
7000045	HW 5.0 (Optional, should be ordered separately)	Hex key	Details
7003854	SATZ-M10X1-M5	Cooling nozzle	Details
7006159	WRENCH NOZZLE HP M10 (Optional, should be ordered separately)	Cooling tube wrench	Details
4561606	COOLING TUBE C6 (Optional, should be ordered separately)	Cooling tube
3313026	WRENCH COOL TUBE C6 (Optional, should be ordered separately)	Cooling tube wrench
