Family Designation: C#-ABB

Adapters with CAMFIX (ISO 26623-1 standard) exchangeable shanks for boring bars with reduction sleeves.

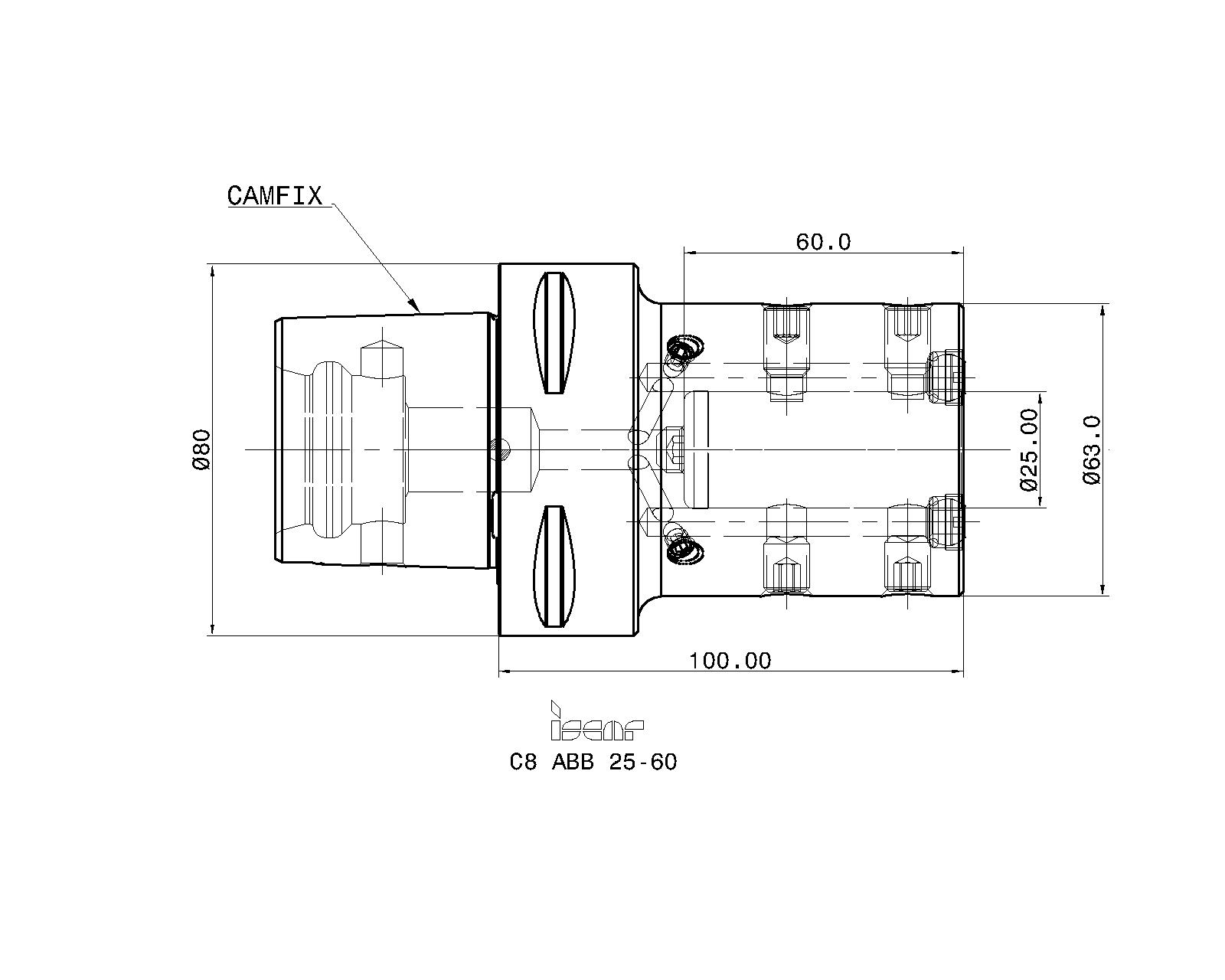

Item Designation: C8 ABB 25-60

DCONMS	DCONWS	BD	LPR	LSCWS	CSP	OAL	CCMS	DCP	TDZ	GICAT	GIREM	giic
80.00	25.00	63.00	100.00	60.0	1~	148.00~	CCS01C0800$$$$~	1	-~	4509624		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4509624		3	0	72				<a href="javascript:OpenDxf('4509624', 'C8 ABB 25-60' , 'IscarDxf' , '4509624-C8 ABB 25-60');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4509624&itemDesc=C8 ABB 25-60"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4509624&itemDesc=C8 ABB 25-60"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

Spare Parts
	4516003	SR M10X12 DIN1835-B	Socket flat head screw	Details
Used on A-type sleeves
	7005679	SR M10X20 DIN915	Socket head cap screw	Details
Used on B-type sleeves
	4506448	SR M10X6DIN913	Socket set with flat	Details
Rear stopper screw
	7000045	HW 5.0 (Optional, should be ordered separately)	Hex key	Details
	7003855	SATZ-M12X1-M6	Cooling nozzle	Details
	7005914	WRENCH NOZZLE HP M12 (Optional, should be ordered separately)	Wrench-open Cooling tube wrench	Details
	4561607	COOLING TUBE C8 (Optional, should be ordered separately)	Cooling tube
	3313027	WRENCH COOL TUBE C8 (Optional, should be ordered separately)	Cooling tube wrench	Details
