Family Designation: C#-ASHA Perpendicular holders with CAMFIX (ISO 26623-1 standard) shanks for external square shank tools.


 100 BAR (1450 PSI) MAX.
Item Designation: C5 ASHA 20
DCONMS H WSC LPR LSCWS LF RADW OAW OAH BD CSP  OAL DCP  GICATGIREMgiic
50.0020.020.058.0046.0038.0038.076.0076.590.001~88.00~14509724 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
4509724 100<a href="javascript:OpenDxf('4509724', 'C5 ASHA 20' , 'IscarDxf' , '4509724-C5 ASHA 20');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4509724&itemDesc=C5 ASHA 20"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=4509724&itemDesc=C5 ASHA 20"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
3D Representation
Assembly Video

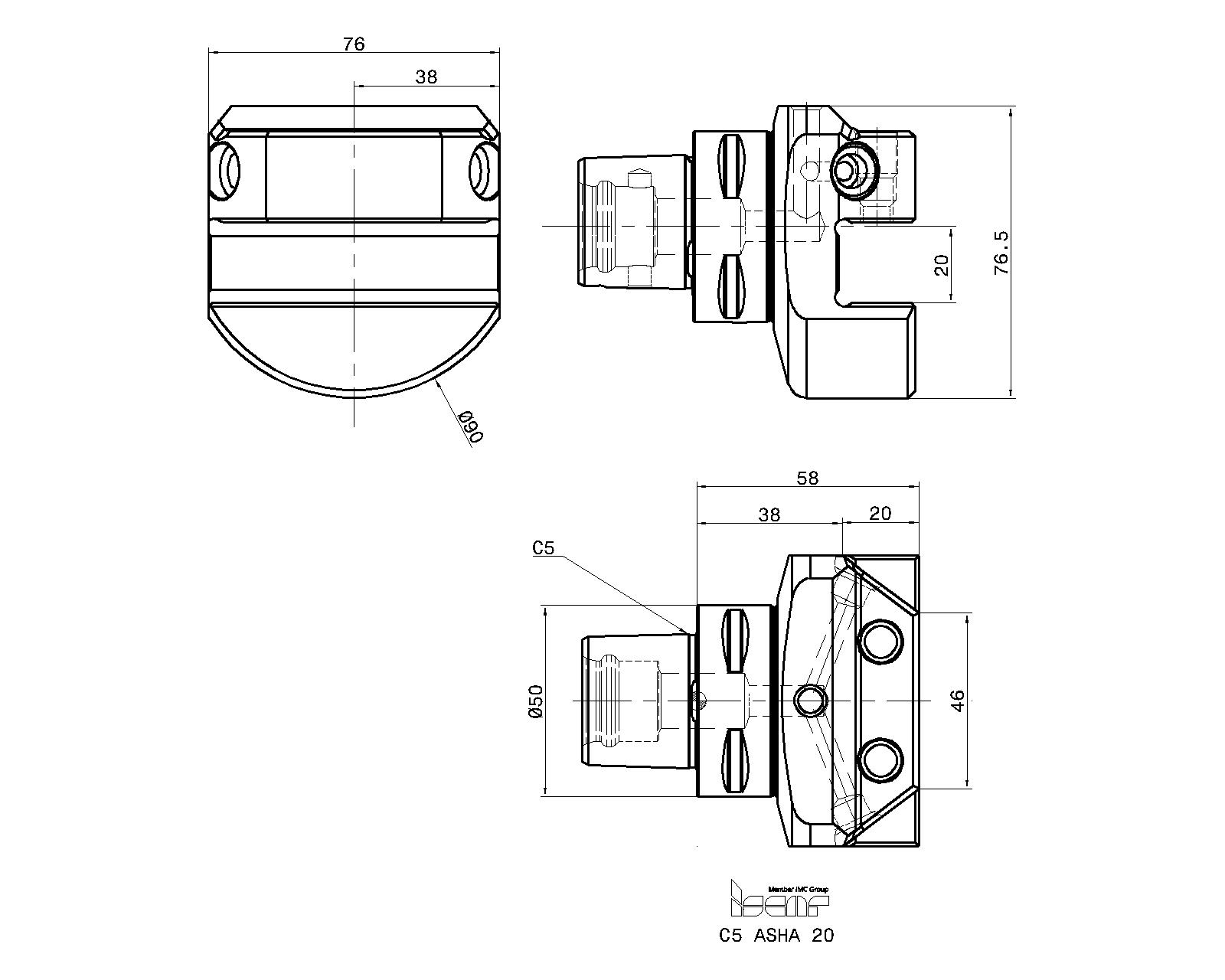

2D Representation
  Spare Parts
7005680SR M10X25 DIN915Socket head cap screw
Details
7000045HW 5.0
(Optional, should be ordered separately)
Hex key
Details
7003854SATZ-M10X1-M5Cooling nozzle
Details
7006159WRENCH NOZZLE HP M10
(Optional, should be ordered separately)
Cooling tube wrench
Details
4561605COOLING TUBE C5
(Optional, should be ordered separately)
Cooling tube
Details
3313025WRENCH COOL TUBE C5
(Optional, should be ordered separately)
Cooling tube wrench
Details
