Family Designation: BT-FC-MAXIN MAXIN power chucks with BT MAS-403 face contact AD tapered shanks.


 RUNOUT (INT) 0.003MM(.00012  TAPER  HARDNESS 58-60  SURFACE FINISH N5  COOLANT THROUGH TOOL
Item Designation: BT50 FC MAXIN32X106
SS DCONMS DCONNWS  DCONXWS  BD LPR LB ADJRGA LSCWS THID CRKS OAL CSP  DCP  CCMS GICATGIREMgiic
5050.00~6.032.069.90106.0068.014.3083.3M20X2M24209.30~1~03.92SKG51C0500$$$$~4509796 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
4509796 300<a href="javascript:OpenDxf('4509796', 'BT50 FC MAXIN32X106' , 'IscarDxf' , '4509796-BT50 FC MAXIN32X106');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4509796&itemDesc=BT50 FC MAXIN32X106"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=4509796&itemDesc=BT50 FC MAXIN32X106"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
For adaptation details, click on "More Info".
3D Representation
Assembly Video

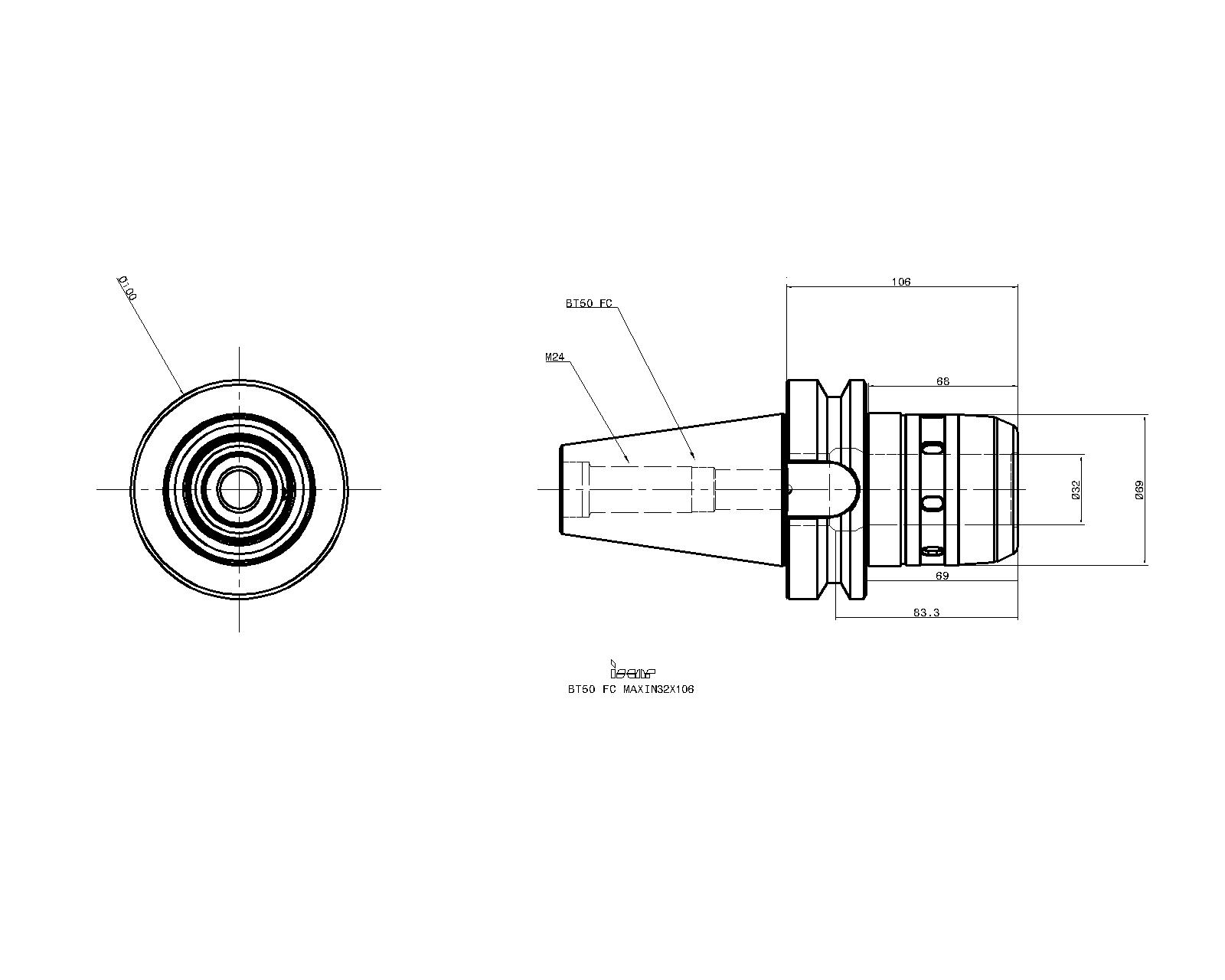

2D Representation
  Spare Parts
4504183WRENCH MAXIN 32 HOOK
(Optional, should be ordered separately)
MAXIN wrench
Details
4504401EXTRACTOR SC COLLETS
(Optional, should be ordered separately)
SC extracting hook
