ISCAR Cutting Tools - Metal Working Tools - BT-FC-SRKIN : 4509885

Geometry Checker ×

Family Designation: BT-FC-SRKIN

Thermal shrink chucks with BT MAS-403 face contact AD tapered shanks, for solid carbide HSS and steel tools.

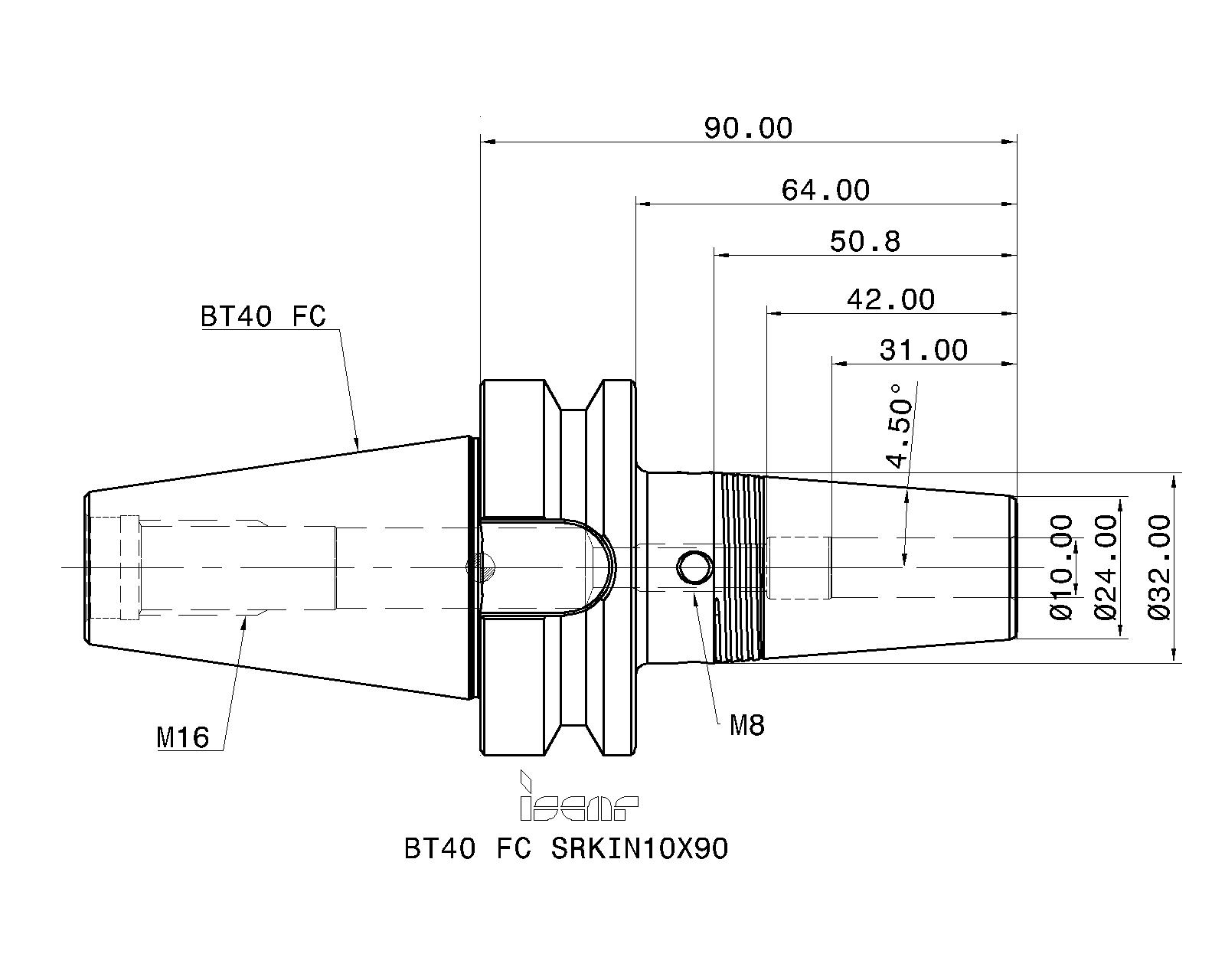

Item Designation: BT40 FC SRKIN10X90

SS	DCONWS	DCONMS	BTED	BD	LPR	LBX	LB	ADJRGA	LSCWS	THID	CRKS	OAL	CSP	CDI		CCMS	GICAT	GIREM	giic
40	10.00	40.00~	24.00	32.00	90.00	64.0	50.80	11.00	42.0	M8	M16	156.40~	1~	0	1.29	SKG51C0400$$$$~	4509885		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4509885		1	0	64				<a href="javascript:OpenDxf('4509885', 'BT40 FC SRKIN10X90' , 'IscarDxf' , '4509885-BT40 FC SRKIN10X90');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4509885&itemDesc=BT40 FC SRKIN10X90"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4509885&itemDesc=BT40 FC SRKIN10X90"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Use only inductive heating device for SRKIN holders
For adaptation details, click on "More Info"

Spare Parts
	4503917	PRESET M8X20B	SRKIN preset screw	Details
