Family Designation: C#-ADI

Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for boring bars.

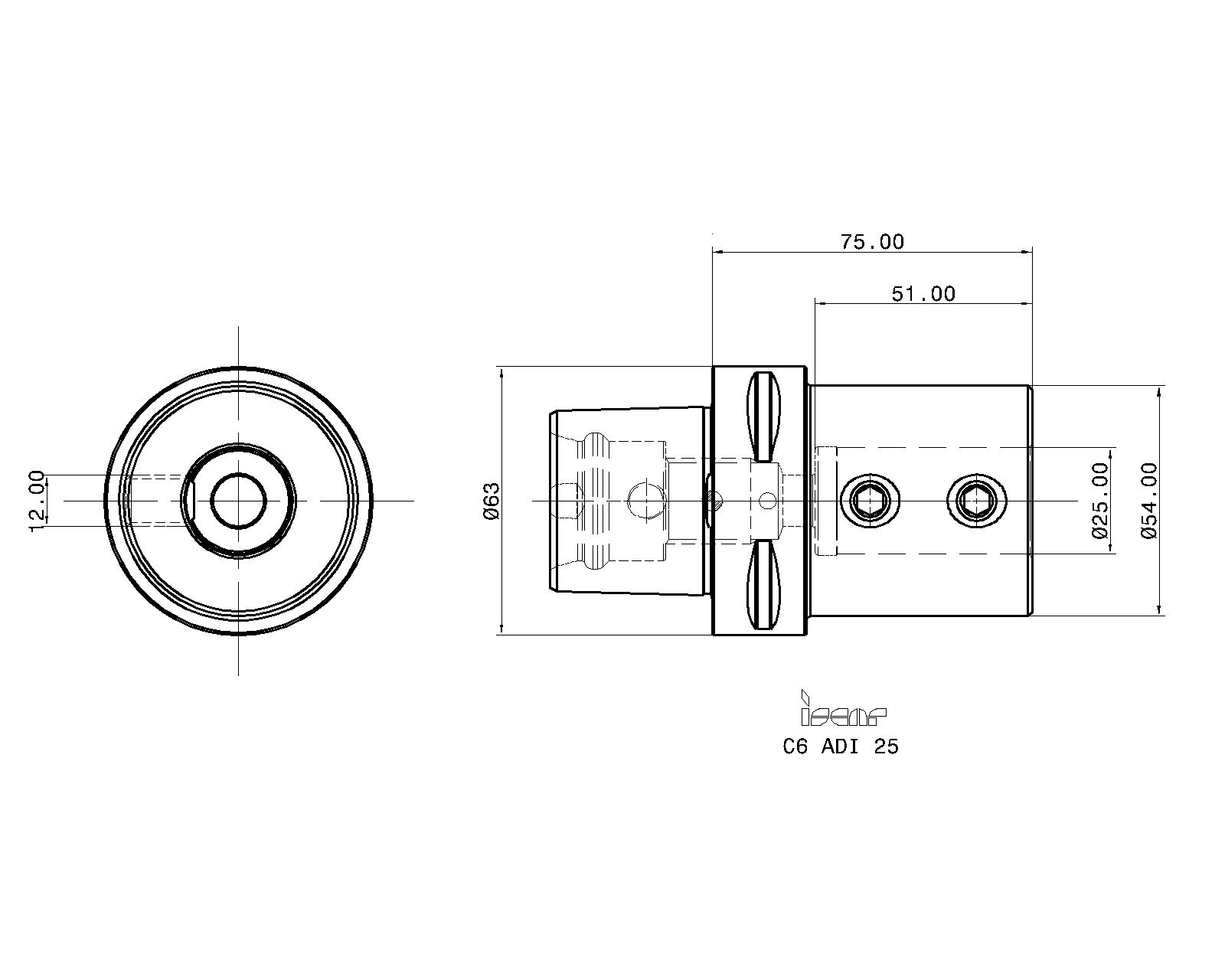

Item Designation: C6 ADI 25

DCONMS	LPR	LSCWS	DCONWS	BD	TDZ		OAL	CCMS	CDI	CSP	GICAT	GIREM	giic
63.00	76.00	51.0	25.00	54.00	M12	0.80	114.00~	CCS01C0630$$$$~	1	1~	4509942		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4509942		1	0	560				<a href="javascript:OpenDxf('4509942', 'C6 ADI 25' , 'IscarDxf' , '4509942-C6 ADI 25');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4509942&itemDesc=C6 ADI 25"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4509942&itemDesc=C6 ADI 25"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Use the tools with "AD" suffix
Regular tools should be shortened


4516004	SR M12X16 DIN1835-B	Socket flat head screw	Details
7000049	HW 6.0 (Optional, should be ordered separately)	Hex key	Details
4561606	COOLING TUBE C6 (Optional, should be ordered separately)	Cooling tube
3313026	WRENCH COOL TUBE C6 (Optional, should be ordered separately)	Cooling tube wrench
