Family Designation: HSK-C#

CAMFIX (ISO 26623-1) holders with HSK ISO 12164-3 form A Tapered shanks.

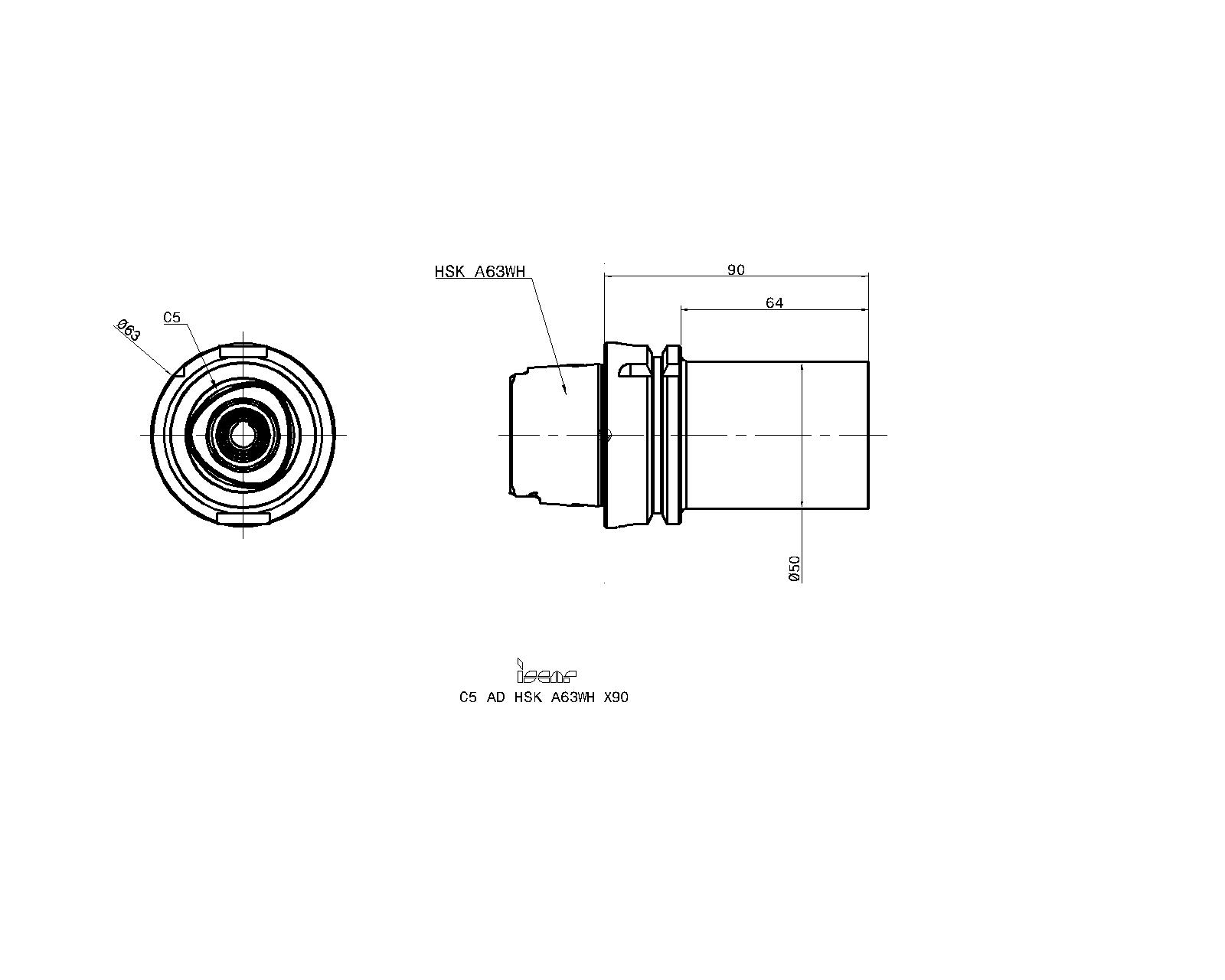

Item Designation: C5 AD HSK A63WHX90

DCONMS	DCONWS	LPR	LB	CDI		CSP	CCMS	GICAT	GIREM	giic
63.00	50.00	90.00	64.00	1	1.44	1~	HSK01C0630$$$$~	4510250		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4510250		1	0	928				<a href="javascript:OpenDxf('4510250', 'C5 AD HSK A63WHX90' , 'IscarDxf' , '4510250-C5 AD HSK A63WHX90');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4510250&itemDesc=C5 AD HSK A63WHX90"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4510250&itemDesc=C5 AD HSK A63WHX90"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Note: To enable clamping the part to be attached, first remove the cooling tube


4510262	SR M16X70 C5	Tool clamping screw	Details
7002350	HW 10.0 (Optional, should be ordered separately)	Hex key	Details
4510264	MT RING M25X20XC5	Ring	Details
4510267	COOLING TUBE HSK A63 C5	Cooling tube	Details
4561258	WRENCH COOL TUBE HSK63 (Optional, should be ordered separately)	Cooling tube wrench
4510462	WRENCH C5 DRW NUT (Optional, should be ordered separately)	Wrench-open	Details
