Family Designation: HSK-C#

CAMFIX (ISO 26623-1) holders with HSK ISO 12164-3 form A Tapered shanks.

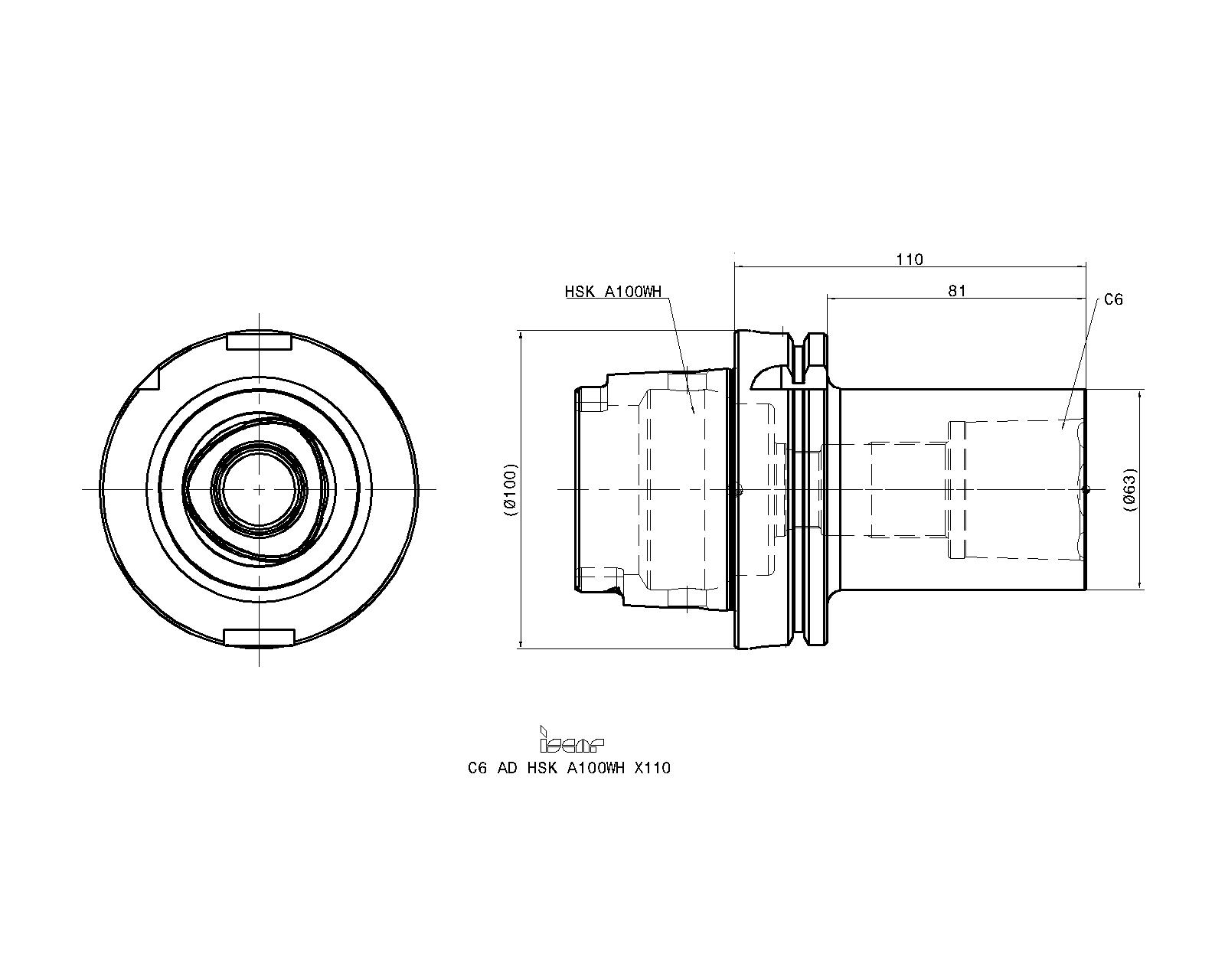

Item Designation: C6 AD HSK A100WHX110

DCONMS	DCONWS	LPR	LB	CDI		CSP	CCMS	GICAT	GIREM	giic
100.00	63.00	110.00	81.00	1	3.61	1~	HSK01C1000$$$$~	4510251		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4510251		1	2	840				<a href="javascript:OpenDxf('4510251', 'C6 AD HSK A100WHX110' , 'IscarDxf' , '4510251-C6 AD HSK A100WHX110');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4510251&itemDesc=C6 AD HSK A100WHX110"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4510251&itemDesc=C6 AD HSK A100WHX110"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Note: To enable clamping the part to be attached, first remove the cooling tube


4510263	SR M20X87 C6/8	Tool clamping screw	Details
7004545	HW 14.0 (Optional, should be ordered separately)	Hex key	Details
4510265	MT RING M30X24XC6/8	Ring	Details
4510266	COOLING TUBE HSK A100C6/8	Cooling tube	Details
4561259	WRENCH COOL TUBE HSK100 (Optional, should be ordered separately)	Cooling tube wrench
4510463	WRENCH C6-8 DRW NUT (Optional, should be ordered separately)	Wrench-open	Details
