Family Designation: HSK-C#

CAMFIX (ISO 26623-1) holders with HSK ISO 12164-3 form A Tapered shanks.

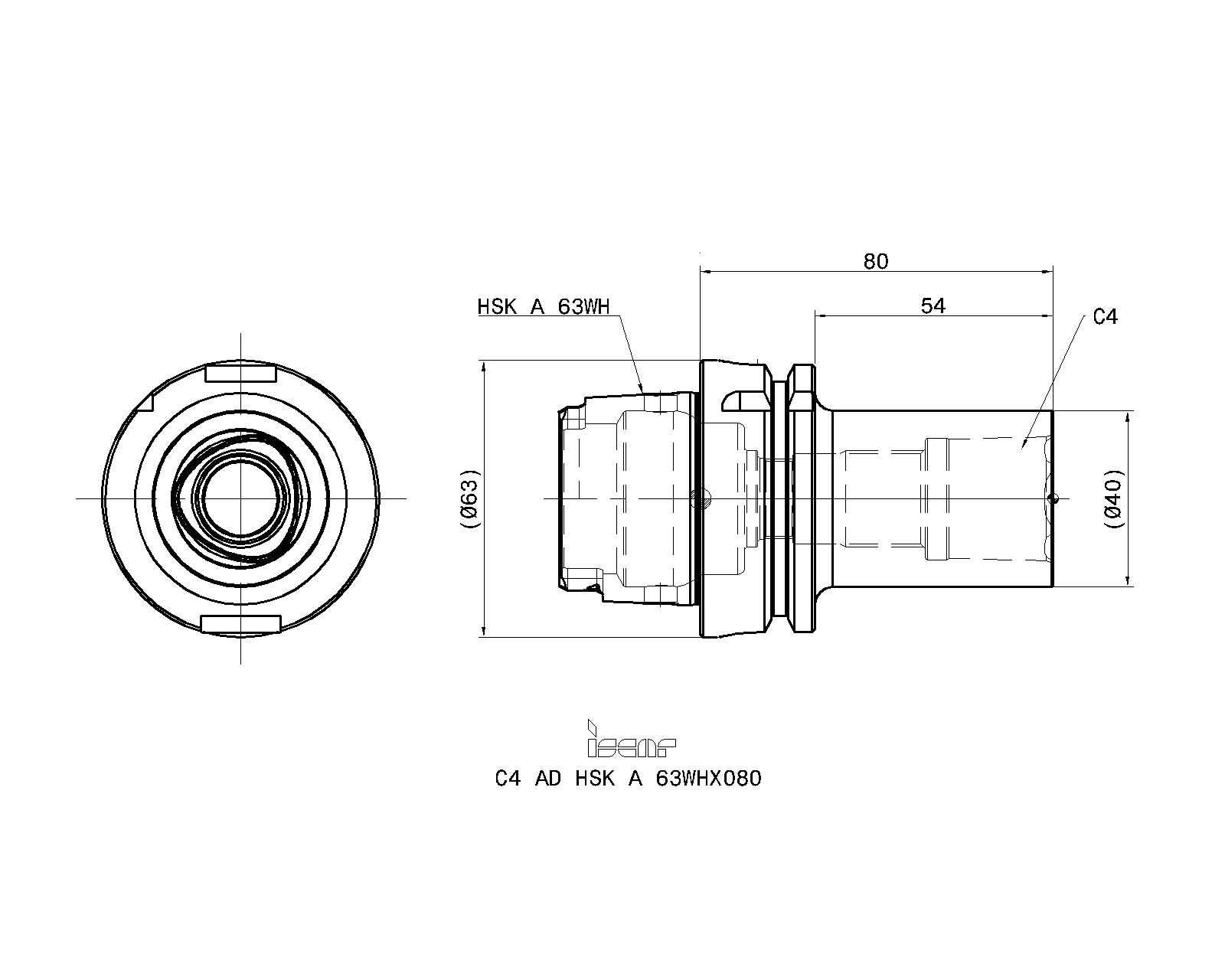

Item Designation: C4 AD HSK A63WHX080

DCONMS	DCONWS	LPR	LB	CDI		CSP	CCMS	GICAT	GIREM	giic
63.00	40.00	80.00	54.00	1	1.10	1~	HSK01C0630$$$$~	4510337		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4510337		1	9	71				<a href="javascript:OpenDxf('4510337', 'C4 AD HSK A63WHX080' , 'IscarDxf' , '4510337-C4 AD HSK A63WHX080');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4510337&itemDesc=C4 AD HSK A63WHX080"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4510337&itemDesc=C4 AD HSK A63WHX080"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Note: To enable clamping the part to be attached, first remove the cooling tube


7007167	SR M14X58 C4	Tool clamping screw	Details
7002043	HW 8.0 (Optional, should be ordered separately)	Hex key	Details
7007169	MT RING M22X17XC4	Ring	Details
4510267	COOLING TUBE HSK A63 C5	Cooling tube	Details
4561258	WRENCH COOL TUBE HSK63 (Optional, should be ordered separately)	Cooling tube wrench
4510461	WRENCH C4 DRW NUT (Optional, should be ordered separately)	Wrench-open	Details
