Family Designation: RE-C# CAMFIX reduction adapters.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  SURFACE FINISH N5  COOLANT THROUGH TOOL
Item Designation: C6 RE C3X070
DCONMS DCONWS LPR LB CDI  CSP  GICATGIREMgiic
63.0032.0070.0039.0001.10~4510345 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4510345 300<a href="javascript:OpenDxf('4510345', 'C6 RE C3X070' , 'IscarDxf' , '4510345-C6 RE C3X070');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4510345&itemDesc=C6 RE C3X070"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=4510345&itemDesc=C6 RE C3X070"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
For Adaptation Click on "More Info"
3D Representation
Assembly Video

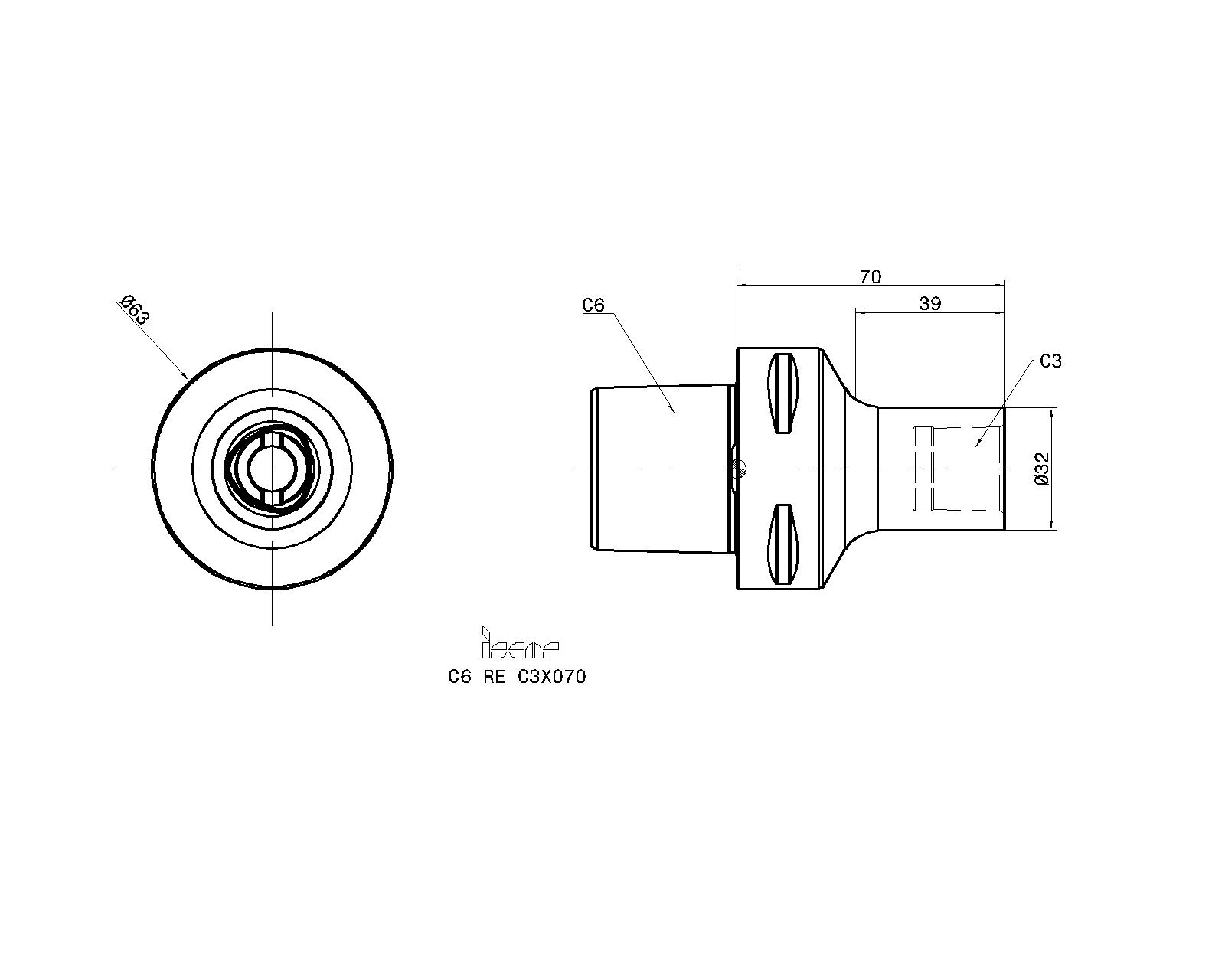

2D Representation
  Spare Parts
7007166SR M12X50 C3Tool clamping screw
Details
7000050HW 7.0
(Optional, should be ordered separately)		Hex key
Details
7007168MT RING M18X15XC3Ring
Details
4561606COOLING TUBE C6
(Optional, should be ordered separately)		Cooling tube
3313026WRENCH COOL TUBE C6
(Optional, should be ordered separately)		Cooling tube wrench
4510460WRENCH C3 DRW NUT
(Optional, should be ordered separately)		Wrench-open
Details
