Family Designation: BT-SRKIN-CX

Thermal shrink chucks with BT MAS-403 Form AD tapered shank and coolant jet channels along the shank bore. Suitable for solid carbide HSS and steel tools with h6 tolerance.

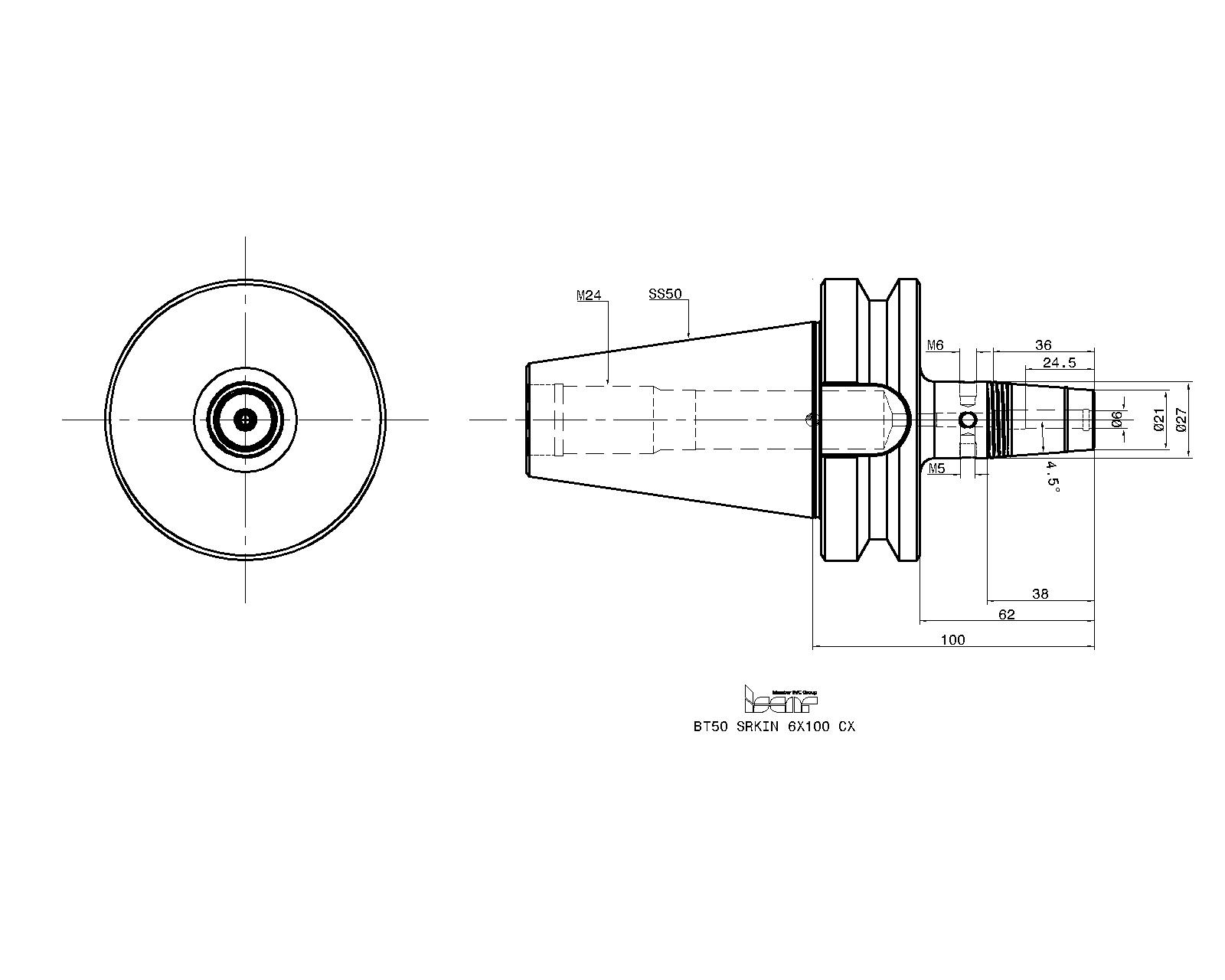

Item Designation: BT50 SRKIN 6X100 CX

Ord	SS	DCONWS	d2	BTED	BD	LPR	LBX	LB	LSCWS	ADJRGA	THID	Key	CRKS	G	CDI		Shank	CCTMS	S. Std.	Mod	BMC	UST	DF	LS	ISCTMP	BD_2	BSC	CCFMS	CCFWS	CCMS	CCTWS	CCWS	ClssID	CMCS	CNSC	CSP	CUBPMS	CUBPWS	CXSC	CZCMS	CZCWS	GTC	HTA	ISYC	LTA	MCO	TCDCONMS	TCDCONWS	WTA	GICAT	GIREM	giic
100~	50	6.00	6.00~	21.00	26.00	100.00	62.00	32.00	34.00	9.50	M5	2.50	M24	M24~	0	3.67	C~	SKG~	~	~	S~	M~	100.00~	101.8~	BT To Cylindrical~	-~	3~	51~	01~	SKG51C0500$$$$~	ZYL~	ZYL01F6000h$06~	71EAD3871D313~	4~	1~	1~	C~	F~	4~	0500~	6000~	ADPRS_MSKG51_WZYL01~	~	401-02~	100.00~	~	$$$$~	h6~	0.00~	4510446		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
4510446		3	0	256				<a href="javascript:OpenDxf('4510446', 'BT50 SRKIN 6X100 CX' , 'IscarDxf' , '4510446-BT50 SRKIN 6X100 CX');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4510446&itemDesc=BT50 SRKIN 6X100 CX"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4510446&itemDesc=BT50 SRKIN 6X100 CX"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Use only inductive heating device for SRKIN holders
ISCAR cannot guarantee an unbalance value less than 1 gr x mm
For shrink units information, Click on "More Info"
Preset screw CX allows supply of coolant via JET channels - do not remove

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	3305382	PRESET CX M5X13	Preset screw	Details
