Family Designation: DIN69871-ER (form ADB)

DIN 6499 ER collet chucks with a DIN 69871 form ADB taper shanks.

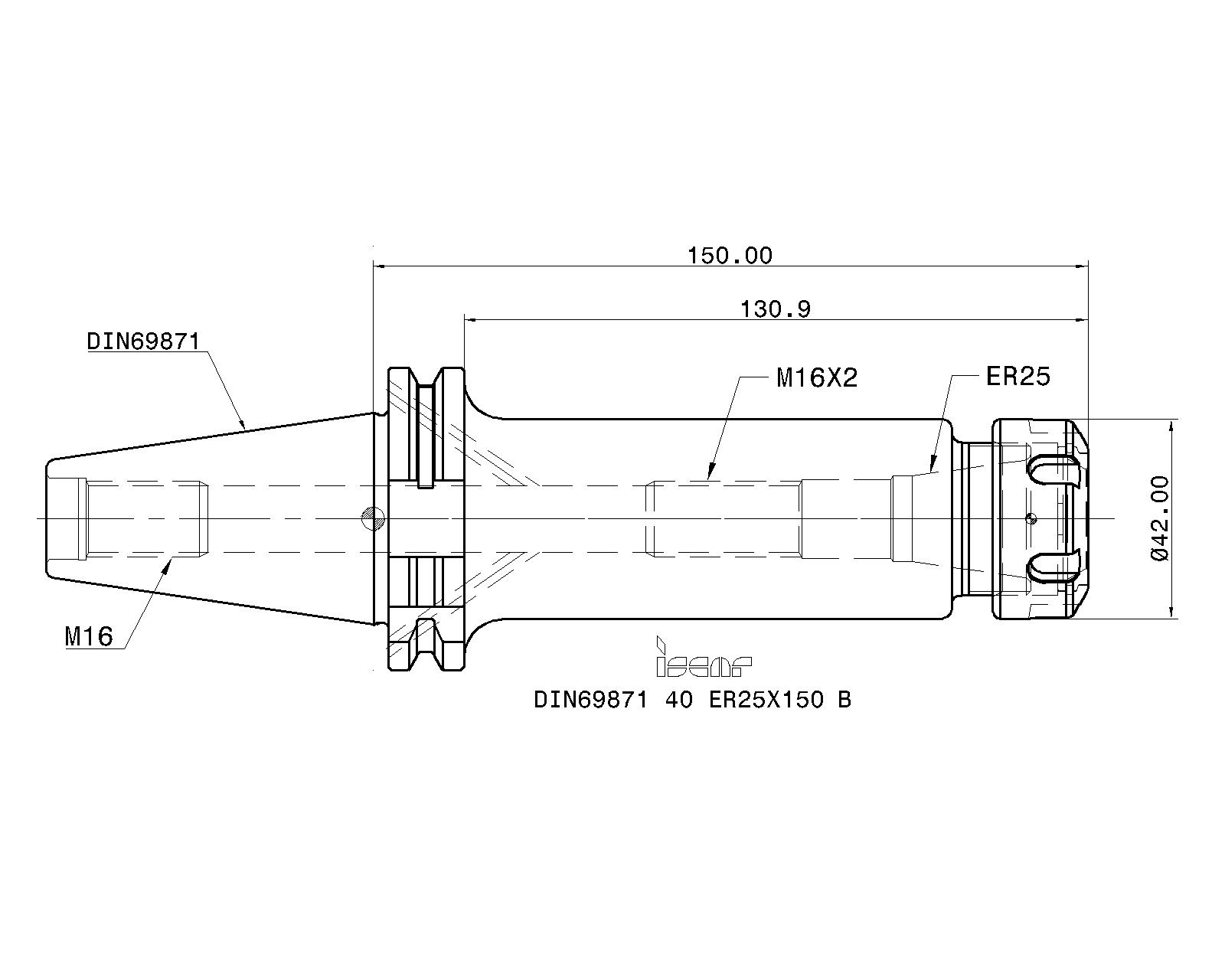

Item Designation: DIN69871 40 ER25X150 B

SS	CSI	DCONNWS	DCONXWS	LPR	LBX	LB	BD	BD_2	CRKS	THID	CSP	OAL	DCP		CCMS	GICAT	GIREM	giic
40	ER25	1.0	16.0	150.00	130.9	-	42.00	-	M16	M16X2	1~	218.40~	0	1.81	SKG17C0400$$$$~	4511617		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4511617		3	0	96				<a href="javascript:OpenDxf('4511617', 'DIN69871 40 ER25X150 B' , 'IscarDxf' , '4511617-DIN69871 40 ER25X150 B');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4511617&itemDesc=DIN69871 40 ER25X150 B"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4511617&itemDesc=DIN69871 40 ER25X150 B"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
B is the designation for coolant through flange.


4513026	NUT ER25 TOP	ER clamping TOP nut
4509076	NUT ER25 TOP BIN (Optional, should be ordered separately)	Balanceable ER nut
4513013	WRENCH ER25 (Optional, should be ordered separately)	Wrench for ER chuck nut
4513095	PRESET ER-JET 16X2 (Optional, should be ordered separately)	Preset screw
4513096	PRESET ER-JET 16X2L (Optional, should be ordered separately)	Preset screw
