Family Designation: PS BT-MAZAK (Pull Stud)

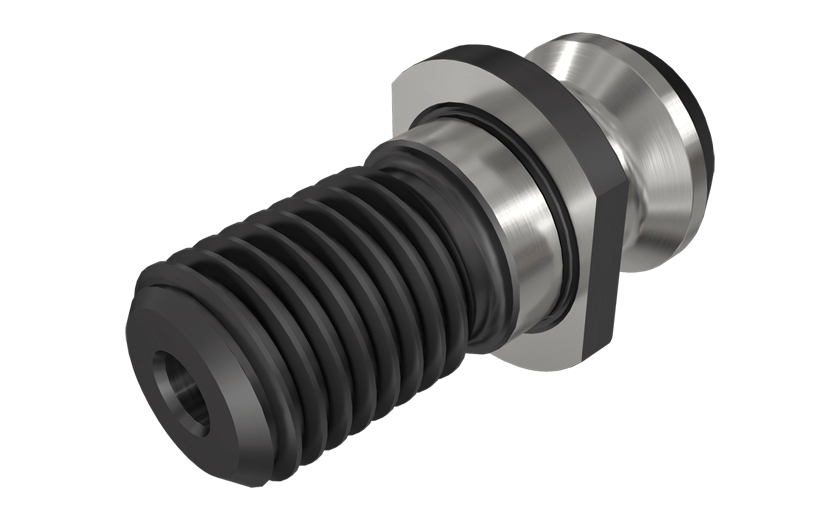

BT pull stud with ANSI Retention knob for MAZAK machines.

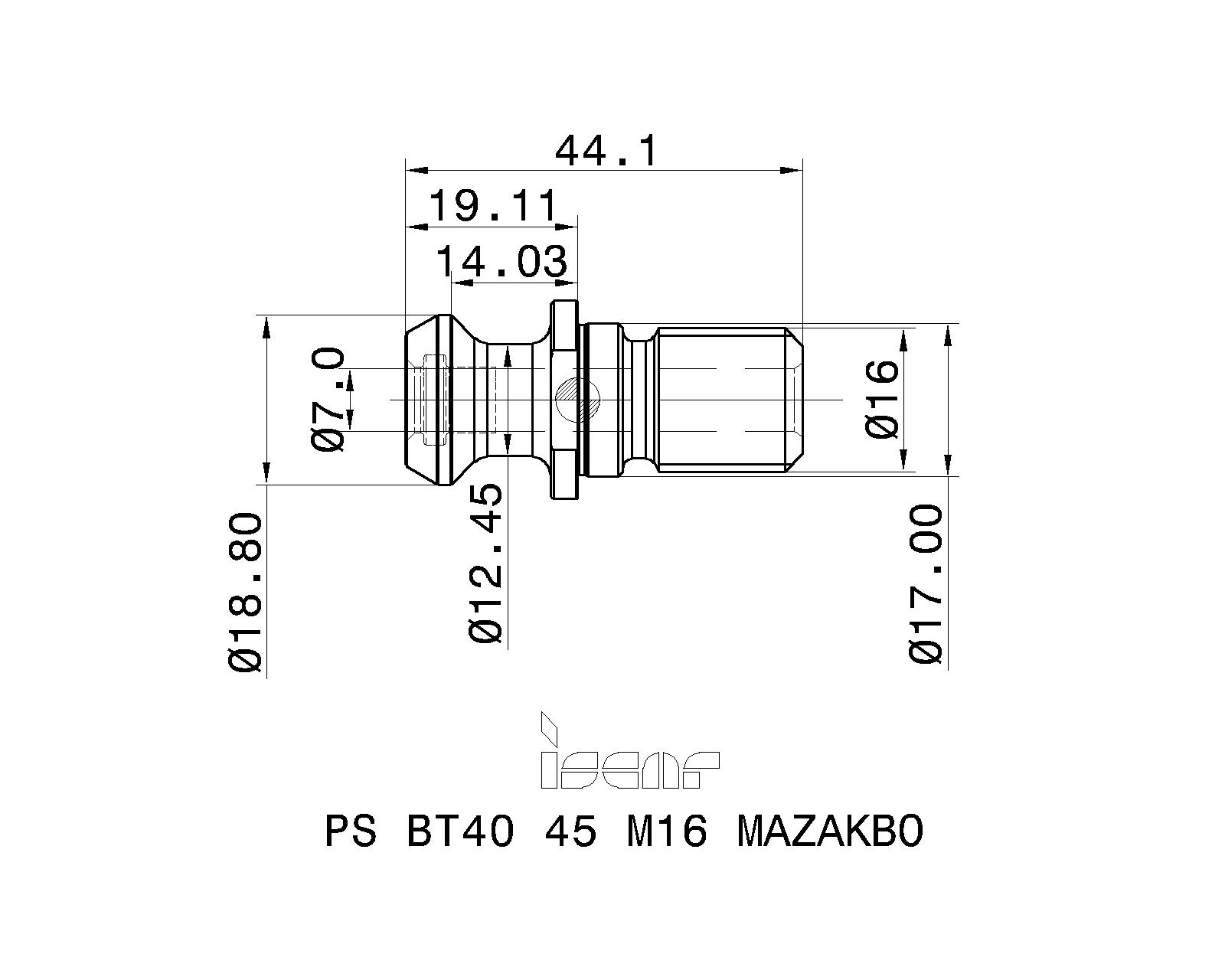

Item Designation: PS BT40 45 M16 MAZAKBO

SS	CRKS	BD_3	BD_2	BD	CND	LB	OAL	LB_2	BHTA	Fig.	CSP	GICAT	GIREM	giic
40	M16	18.80	12.40	17.00	7.0	14.03	44.1	19.10	45.0	2	1	4517119		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	GIFUT5	GTC	Stock Availability US EU E. Asia	STP	STPL	StockPerUser
4517119		1	160	1080		0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4517119&itemDesc=PS BT40 45 M16 MAZAKBO"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4517119&itemDesc=PS BT40 45 M16 MAZAKBO"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4517119&itemDesc=PS BT40 45 M16 MAZAKBO"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>

Items Per Package : 1

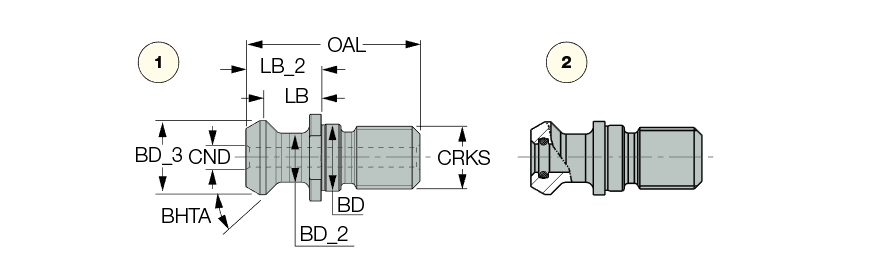

Fig 1: With coolant hole only
Fig 2: With coolant hole and internal O-ring
