Family Designation: BT-SRKIN-CX Thermal shrink chucks with BT MAS-403 Form AD tapered shank and coolant jet channels along the shank bore. Suitable for solid carbide HSS and steel tools with h6 tolerance.


 RUNOUT (INT) 0.003MM(.00012  TAPER  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  COOLANT THROUGH TOOL  G2.5/BT40=25000/BT50=20000
Item Designation: BT40 SRKIN 10X90 CX
SS DCONWS BTED BD LPR LBX LB LSCWS ADJRGA THID Key  CRKS CDI  CCMS CSP  GICATGIREMgiic
4010.0024.0032.0090.0063.0050.8039.809.30M84.00M1601.23SKG51C0400$$$$~1~4517262 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4517262 10360<a href="javascript:OpenDxf('4517262', 'BT40 SRKIN 10X90 CX' , 'IscarDxf' , '4517262-BT40 SRKIN 10X90 CX');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4517262&itemDesc=BT40 SRKIN 10X90 CX"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4517262&itemDesc=BT40 SRKIN 10X90 CX"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
Use only inductive heating device for SRKIN holders
ISCAR cannot guarantee an unbalance value less than 1 gr x mm
For shrink units information, Click on "More Info"
Preset screw CX allows supply of coolant via JET channels - do not remove
3D Representation
Assembly Video

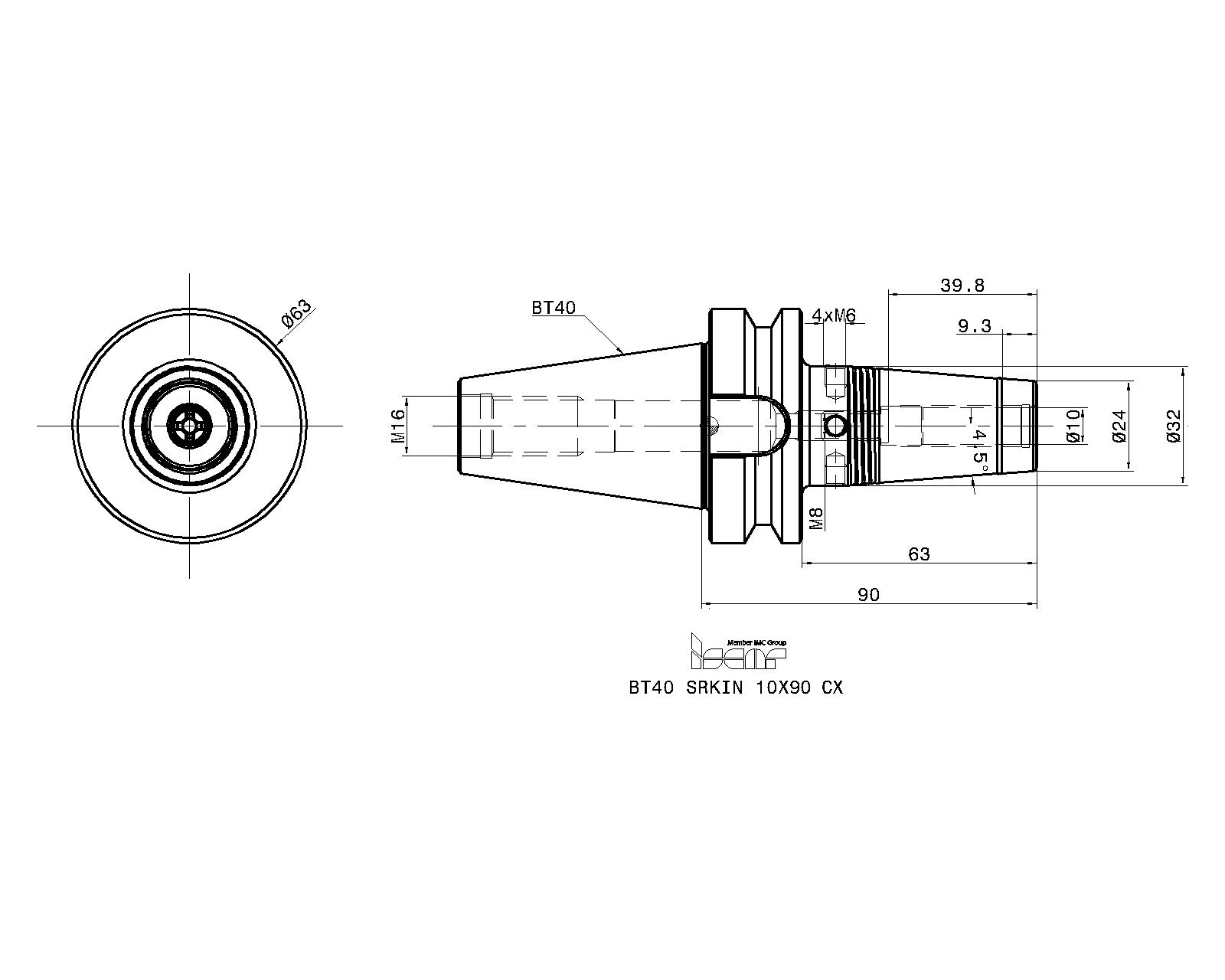

2D Representation
  Spare Parts
7007533PRESET CX M8X16Preset screw
