Family Designation: DIN69871-SRKIN-CX Thermal shrink chucks with DIN69871 Form AD tapered shank and coolant jet channels along the shank bore. Suitable for solid carbide HSS and steel tools with h6 tolerance.


 RUNOUT (INT) 0.003MM(.00012  TAPER  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  G2.5/SK40=25000/SK50=2000  COOLANT THROUGH TOOL
Item Designation: DIN69871 40 SRKIN 12X80CX
SS DCONWS BTED BD LPR LBX LB LSCWS ADJRGA THID Key  CRKS CSP  CDI  GICATGIREMgiic
4012.0024.0032.0080.0060.9051.0044.809.30M105.00M161~01.054517278 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4517278 10112<a href="javascript:OpenDxf('4517278', 'DIN69871 40 SRKIN 12X80CX' , 'IscarDxf' , '4517278-DIN69871 40 SRKIN 12X80CX');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4517278&itemDesc=DIN69871 40 SRKIN 12X80CX"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4517278&itemDesc=DIN69871 40 SRKIN 12X80CX"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
Use only inductive heating device for SRKIN holders
ISCAR cannot guarantee an unbalance value less than 1 gr x mm
For shrink units information, Click on "More Info"
Preset screw CX allows supply of coolant via JET channels - do not remove
3D Representation
Assembly Video

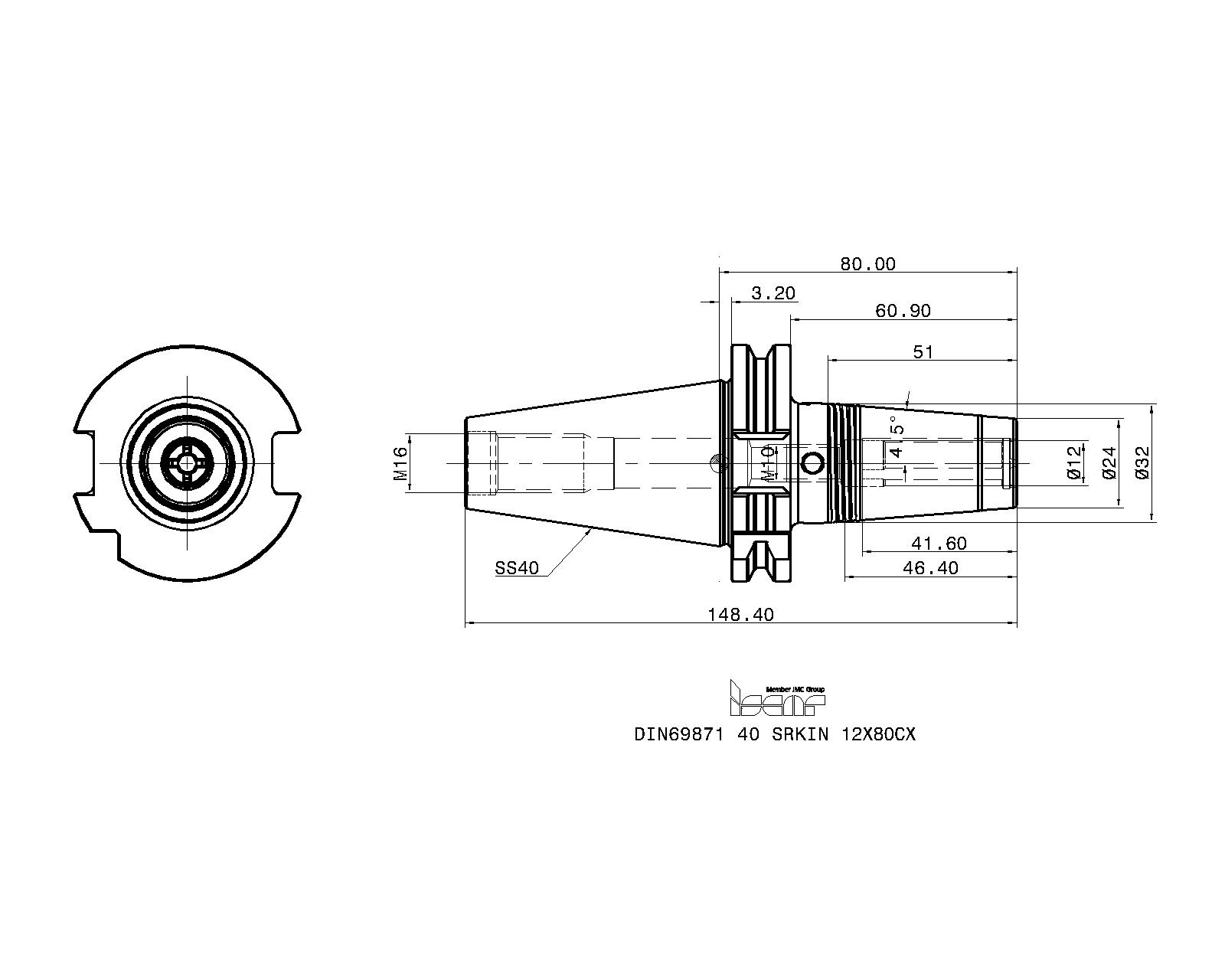

2D Representation
  Spare Parts
7007534PRESET CX M10X16Preset screw
