ISCAR Cutting Tools - Metal Working Tools - C#-SRKIN-CX : 4517321 - C6 SRKIN 10X80 CX
Geometry Checker ×

Family Designation: C#-SRKIN-CX Thermal shrink chucks with CAMFIX (ISO 26623-1) tapered shank and coolant jet channels along the shank bore. Suitable for solid carbide HSS and steel tools with h6 tolerance.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  TAPER  COOLANT THROUGH TOOL  G2.5/SIZE 50,63=20K
Item Designation: C6 SRKIN 10X80 CX
DCONMS DCONWS BTED BD LPR LBX LB LSCWS ADJRGA THID Key  CDI  CCMS CSP  TDZ GICATGIREMgiic
63.0010.0024.0032.0080.0058.0050.8039.809.30M84.0011.07CCS01C0630$$$$~1~-~4517321 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4517321 100<a href="javascript:OpenDxf('4517321', 'C6 SRKIN 10X80 CX' , 'IscarDxf' , '4517321-C6 SRKIN 10X80 CX');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4517321&itemDesc=C6 SRKIN 10X80 CX"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4517321&itemDesc=C6 SRKIN 10X80 CX"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
Use only inductive heating device for SRKIN holders
ISCAR cannot guarantee an unbalance value less than 1 gr x mm
For shrink units information, Click on "More Info"
Preset screw CX allows supply of coolant via JET channels - do not remove
3D Representation
Assembly Video

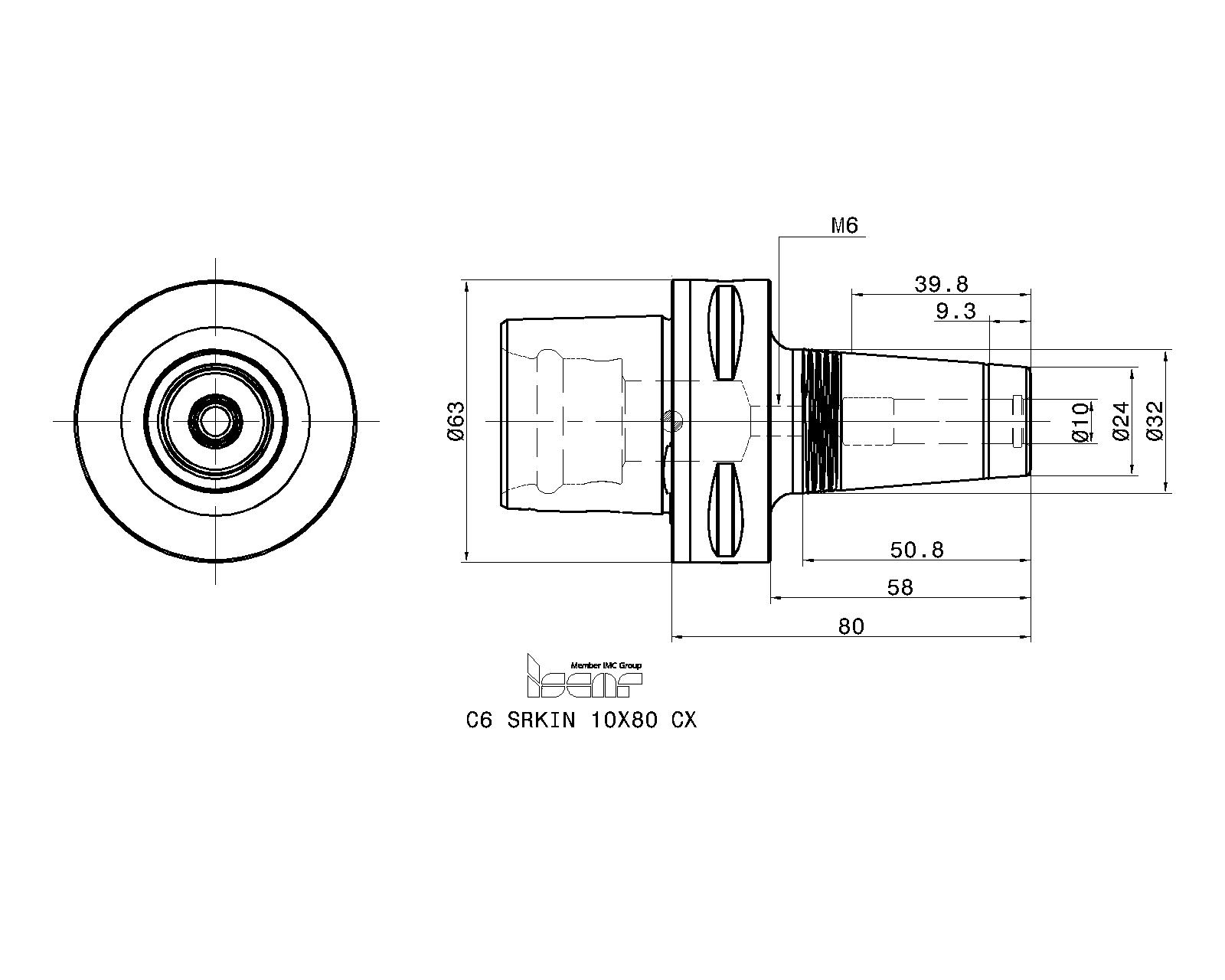

2D Representation
  Spare Parts
7007533PRESET CX M8X16Preset screw
Details
4561606COOLING TUBE C6
(Optional, should be ordered separately)		Cooling tube
3313026WRENCH COOL TUBE C6
(Optional, should be ordered separately)		Cooling tube wrench
