ISCAR Cutting Tools - Metal Working Tools - BT-EM (DIN 1835 Form B) : 4529005

Geometry Checker ×

Family Designation: BT-EM (DIN 1835 Form B)

DIN6359 / DIN 1835 form B Weldon endmill holders with BT MAS-403 ADB tapered shanks

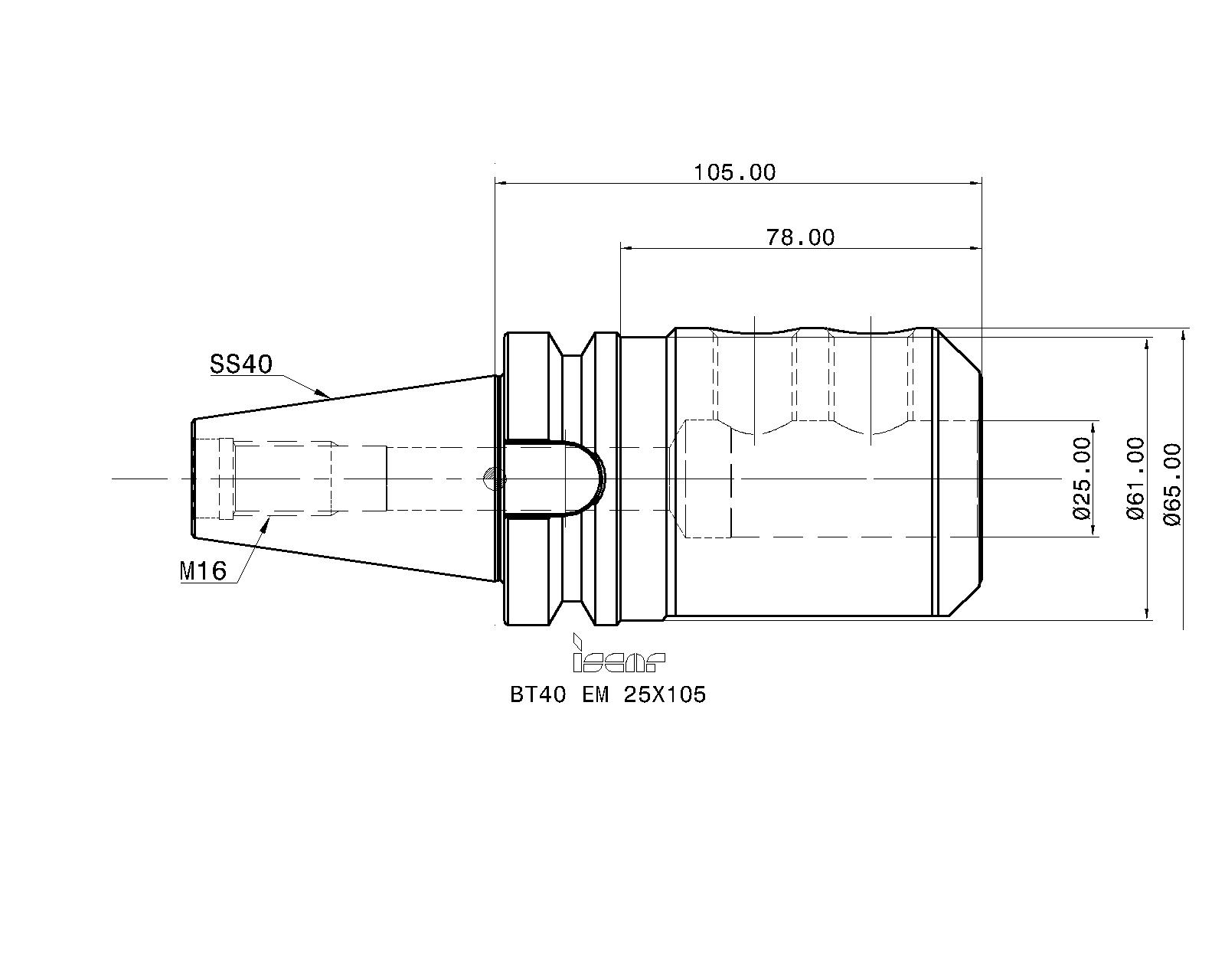

Item Designation: BT40 EM 25X105

SS	DCONWS	LPR	BD	BD_2	LBX	LB	CRKS	CSP	OAL	DCP		CCMS	GICAT	GIREM	giic
40	25.00	105.00	65.00	61.00	78.0	68.00	M16	1~	170.40~	0	2.61	SKG57C0400$$$$~	4529005		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4529005		1	0	80				<a href="javascript:OpenDxf('4529005', 'BT40 EM 25X105' , 'IscarDxf' , '4529005-BT40 EM 25X105');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4529005&itemDesc=BT40 EM 25X105"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4529005&itemDesc=BT40 EM 25X105"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

Spare Parts
	4516007	SR M18X2X20 DIN1835-B	Socket flat head screw	Details
