Family Designation: ER-CF (CLICKFIT)

DIN 6499 ER collet chucks with CLICKFIT quick change adaptations.

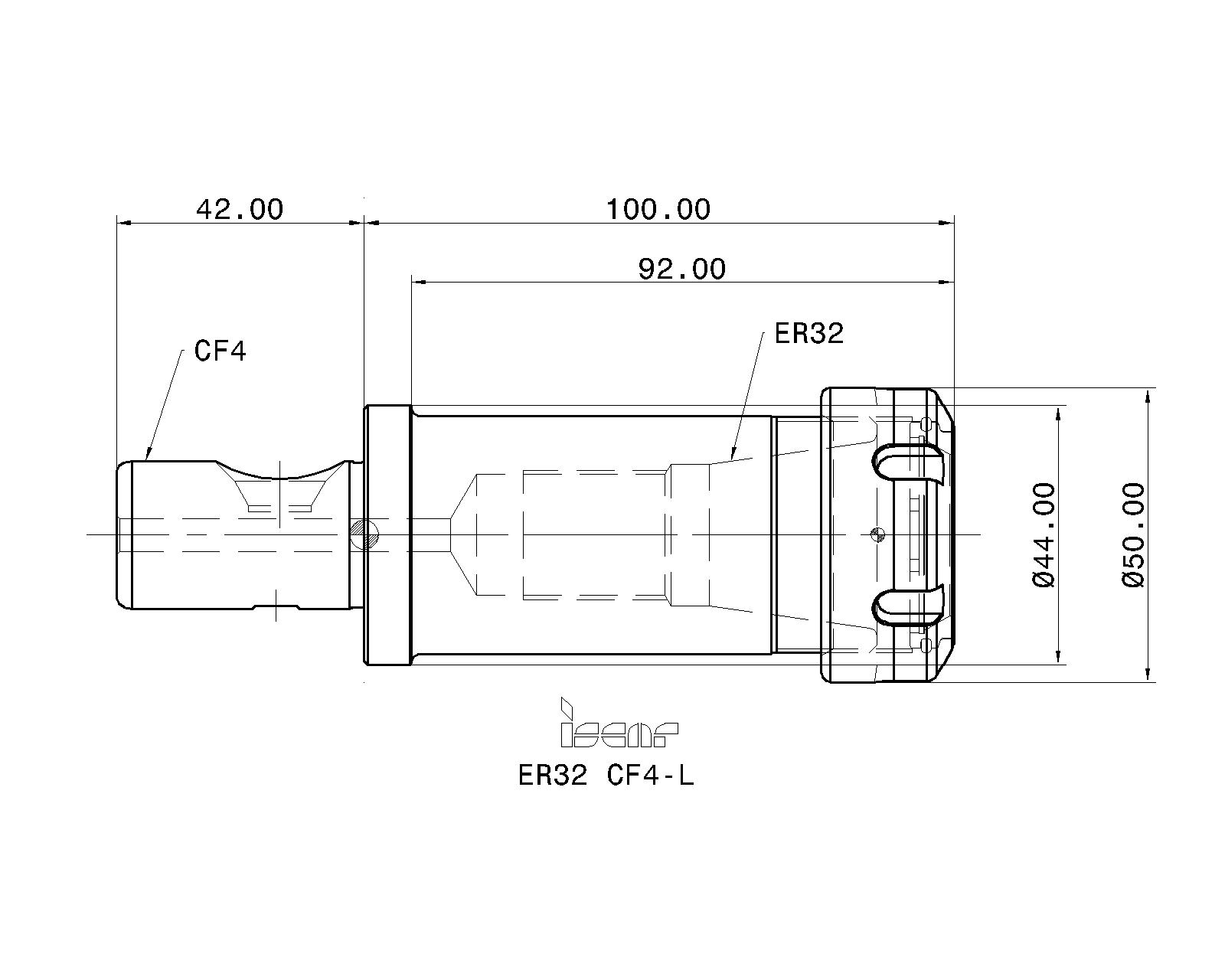

Item Designation: ER32 CF4-L

CSI	SS	DCONMS	DCONNWS	DCONXWS	LPR	LB	LS	BD	DF	OAL		CSP	GICAT	GIREM	giic
ER32	CF4	4.00~	2.0	20.0	100.00	92.0	42.00	50.00	44.00	142.00~	0.77	~	4548016		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4548016		3	0	5				<a href="javascript:OpenDxf('4548016', 'ER32 CF4-L' , 'IscarDxf' , '4548016-ER32 CF4-L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4548016&itemDesc=ER32 CF4-L"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4548016&itemDesc=ER32 CF4-L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Tightening torque: 6 Kgxm.
For adaptation click on "More Info"

Spare Parts
	4513027	NUT ER32 TOP	ER clamping TOP nut
	4513014	WRENCH ER32 (Optional, should be ordered separately)	Wrench for ER chuck nut
