Family Designation: GTIN ER-DIN (tapping) ER collet tapping attachments, tension and compression DIN type used for CNC milling and turret lathe machines. A compact design with a misalignment compensating mechanism.


 HARDNESS 58-60  SURFACE FINISH N5

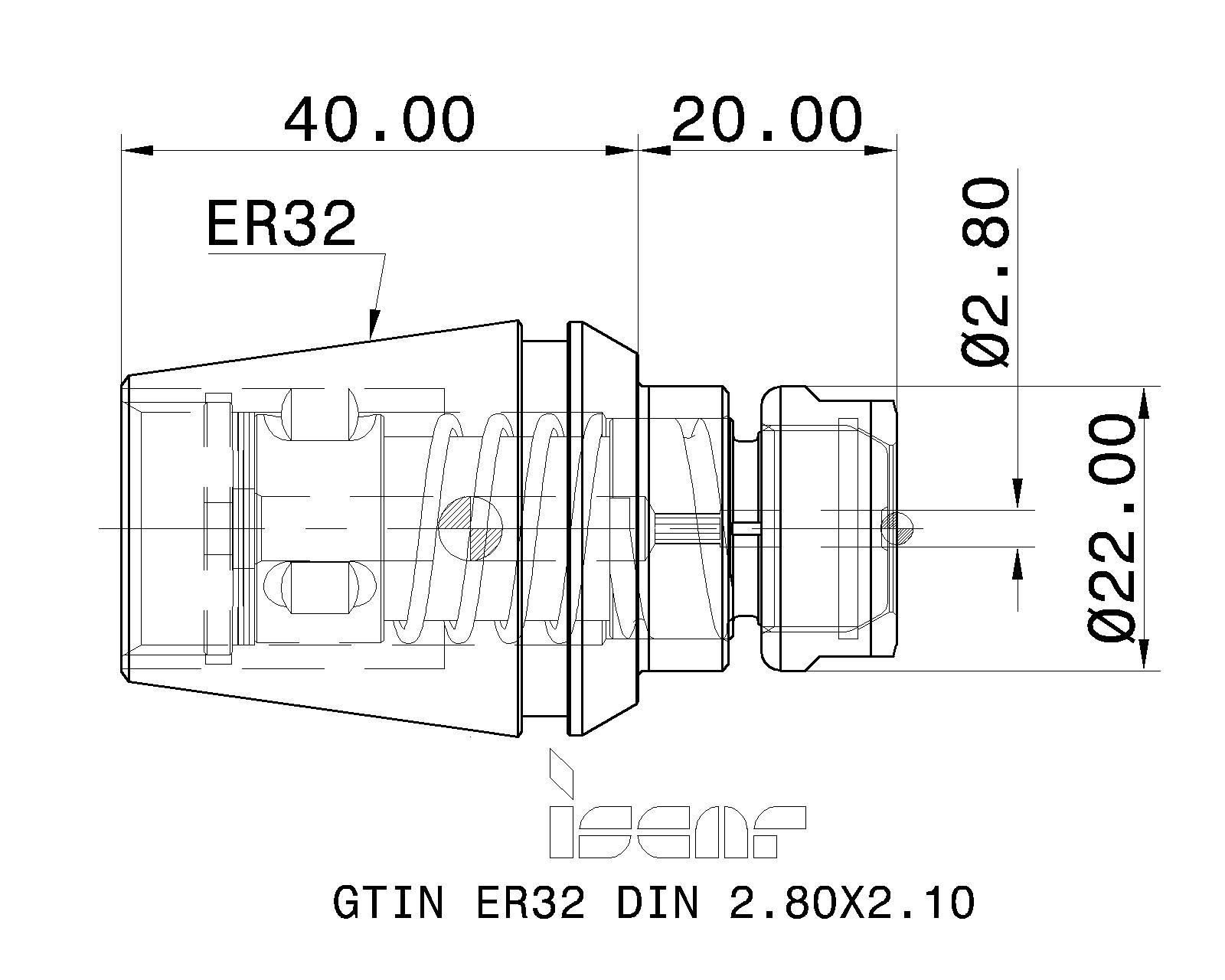

Item Designation: GTIN ER32 DIN 2.80X2.10
SS DCONWS DCONMS S Tap min Tap max DRVS  OAL DCP  GICATGIREMgiic
ER322.800.00~2.10M2M420.060.00~00.224548060 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4548060 1048<a href="javascript:OpenDxf('4548060', 'GTIN ER32 DIN 2.80X2.10' , 'IscarDxf' , '4548060-GTIN ER32 DIN 2.80X2.10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4548060&itemDesc=GTIN ER32 DIN 2.80X2.10"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=4548060&itemDesc=GTIN ER32 DIN 2.80X2.10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
No coolant should be induced through the tapping collet as it will cause malfunction of the mechanism
Compensates for machine feed and tap pitch variance
Floating mechanism compensates for misalignment between tap and workpiece
Hard start for rigid tapping
When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32
3D Representation
Assembly Video
2D Representation
  Spare Parts
4502930GTIN ER32 NUTER clamping nut
