Family Designation: CATM-MB

MB modular boring connection system with CATM Form AD ANSIB5.5 Caterpillar tapered shanks and metric pull stud threads.

Representative Image

(a)Cutting edge position

Representative Image

(a)Cutting edge position

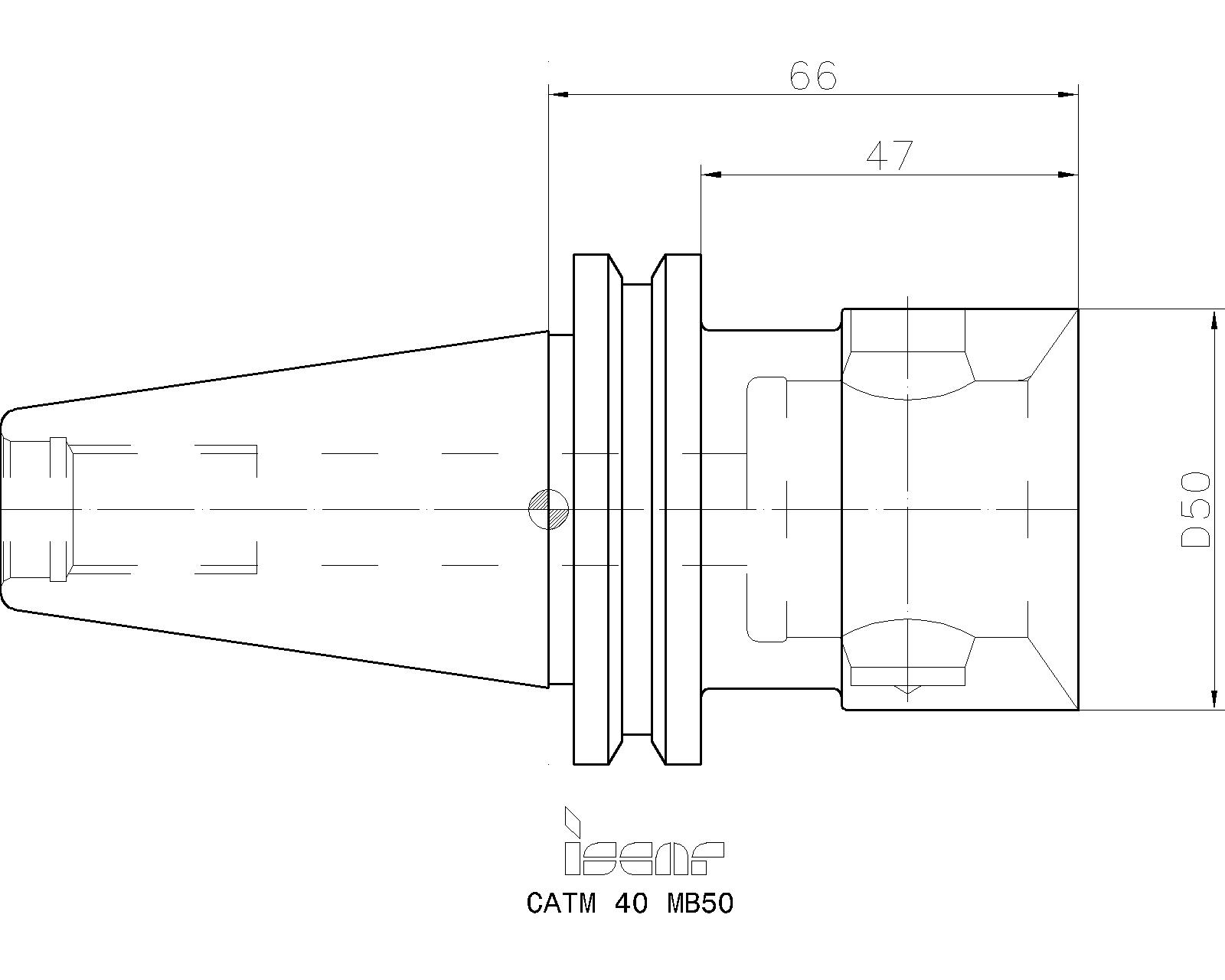

Item Designation: CATM 40 MB50

SS	DCONWS	LB	LPR	CRKS	OAL		CSP	GICAT	GIREM	giic
40	50.00	47.0	66.00	M16	134.25~	1.21	~	4550005		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	GIFUT5	GTC	Stock Availability US EU E. Asia	STP	STPL	StockPerUser
4550005		1	64	64		0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4550005&itemDesc=CATM 40 MB50"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'GTC', 'ItemPage');"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4550005&itemDesc=CATM 40 MB50"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4550005&itemDesc=CATM 40 MB50"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a>

Items Per Package : 1
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.

Spare Parts
	7000049	HW 6.0	Hex key	Details
