Family Designation: CATM-MB

MB modular boring connection system with CATM Form AD ANSIB5.5 Caterpillar tapered shanks and metric pull stud threads.

(a)Cutting edge position

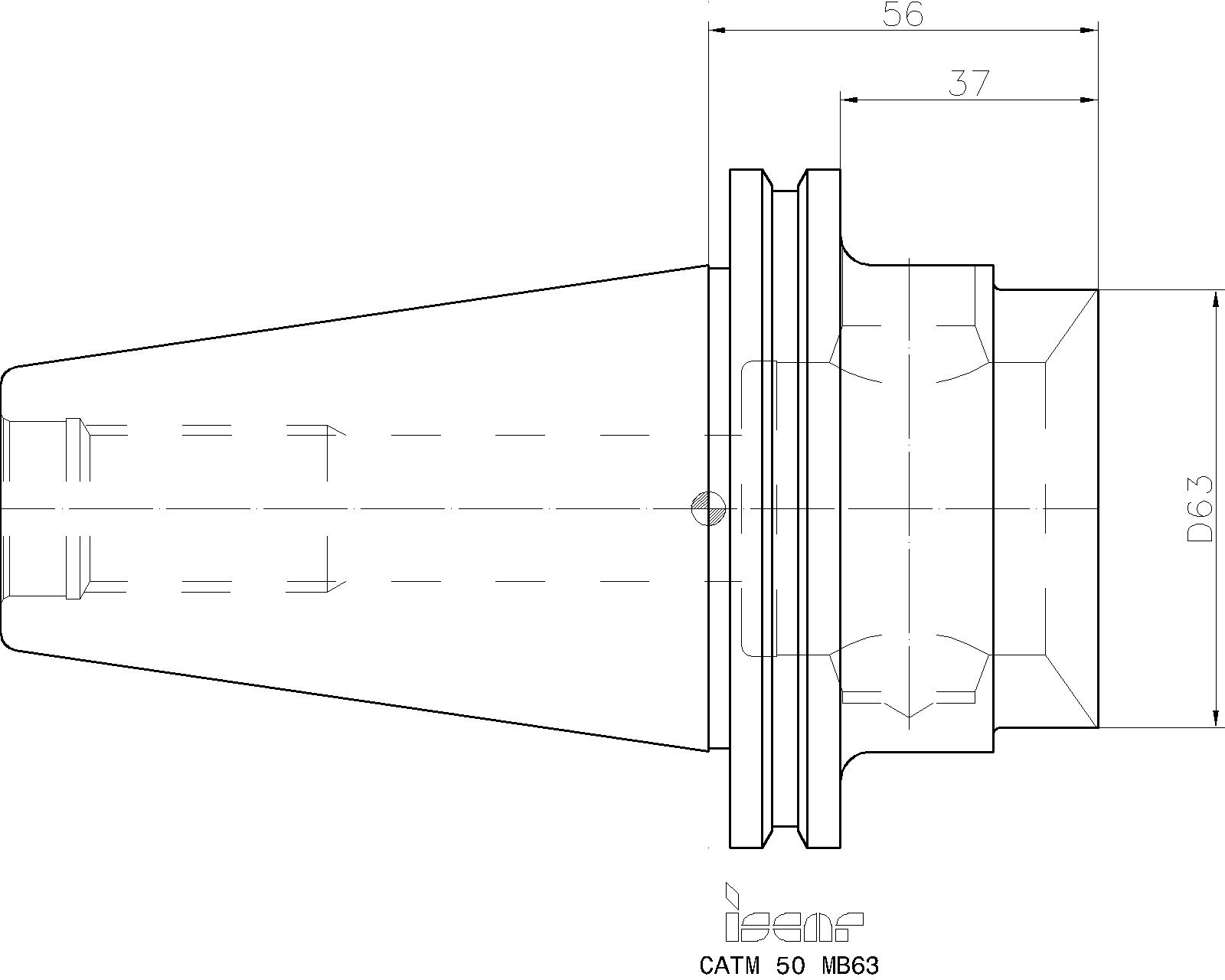

Item Designation: CATM 50 MB63

SS	DCONWS	LB	LPR	CRKS	OAL		CSP	GICAT	GIREM	giic
50	63.00	37.0	56.00	M24	157.60~	3.08	~	4550008		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	GIFUT5	GTC	Stock Availability US EU E. Asia	STP	STPL	StockPerUser
4550008		3	0	0		0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4550008&itemDesc=CATM 50 MB63"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4550008&itemDesc=CATM 50 MB63"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4550008&itemDesc=CATM 50 MB63"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>

Items Per Package : 1
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.

Spare Parts
	7002043	HW 8.0	Hex key	Details
