ISCAR Cutting Tools - Metal Working Tools - EMH MB : 4550171

Geometry Checker ×

Family Designation: EMH MB

Weldon and Whistle Notch side-lock holders with the MB modular boring connection system.

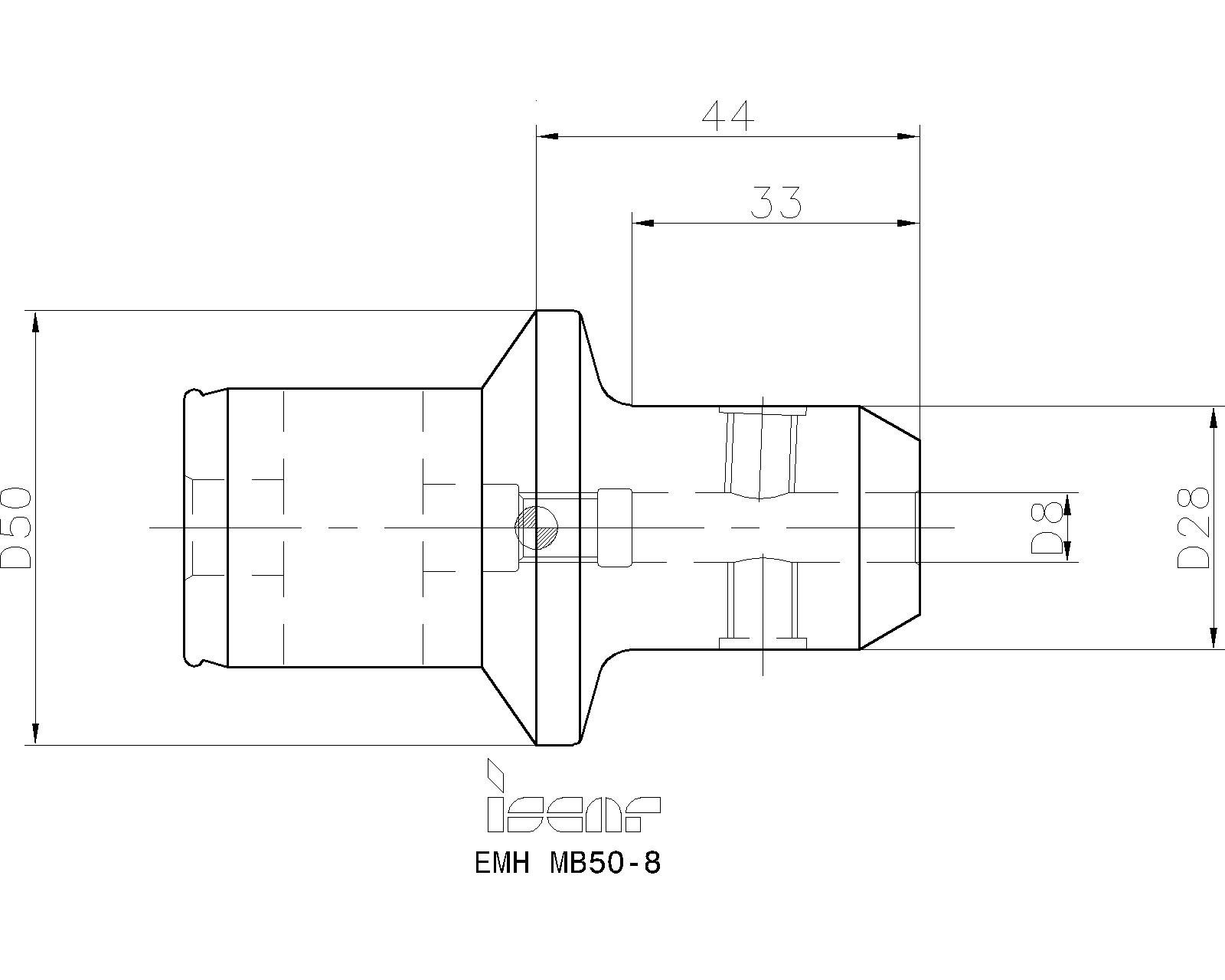

Item Designation: EMH MB50-8

DCONMS	DCONWS	BD	LB	LPR	L5	ADJRGA	Fig.		CCMS	CSP	OAL	GICAT	GIREM	giic
50.00	8.00	28.00	33.0	44.00	7.00	2.0	1.	0.54	IMB01C0500$$$$~	1~	84.50~	4550171		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	STPL	StockPerUser
4550171		3	0	0			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4550171&itemDesc=EMH MB50-8"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4550171&itemDesc=EMH MB50-8"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4550171&itemDesc=EMH MB50-8"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>

Items Per Package : 1
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
