ISCAR Cutting Tools - Metal Working Tools - EMH MB : 4550174

Geometry Checker ×

Family Designation: EMH MB

Weldon and Whistle Notch side-lock holders with the MB modular boring connection system.

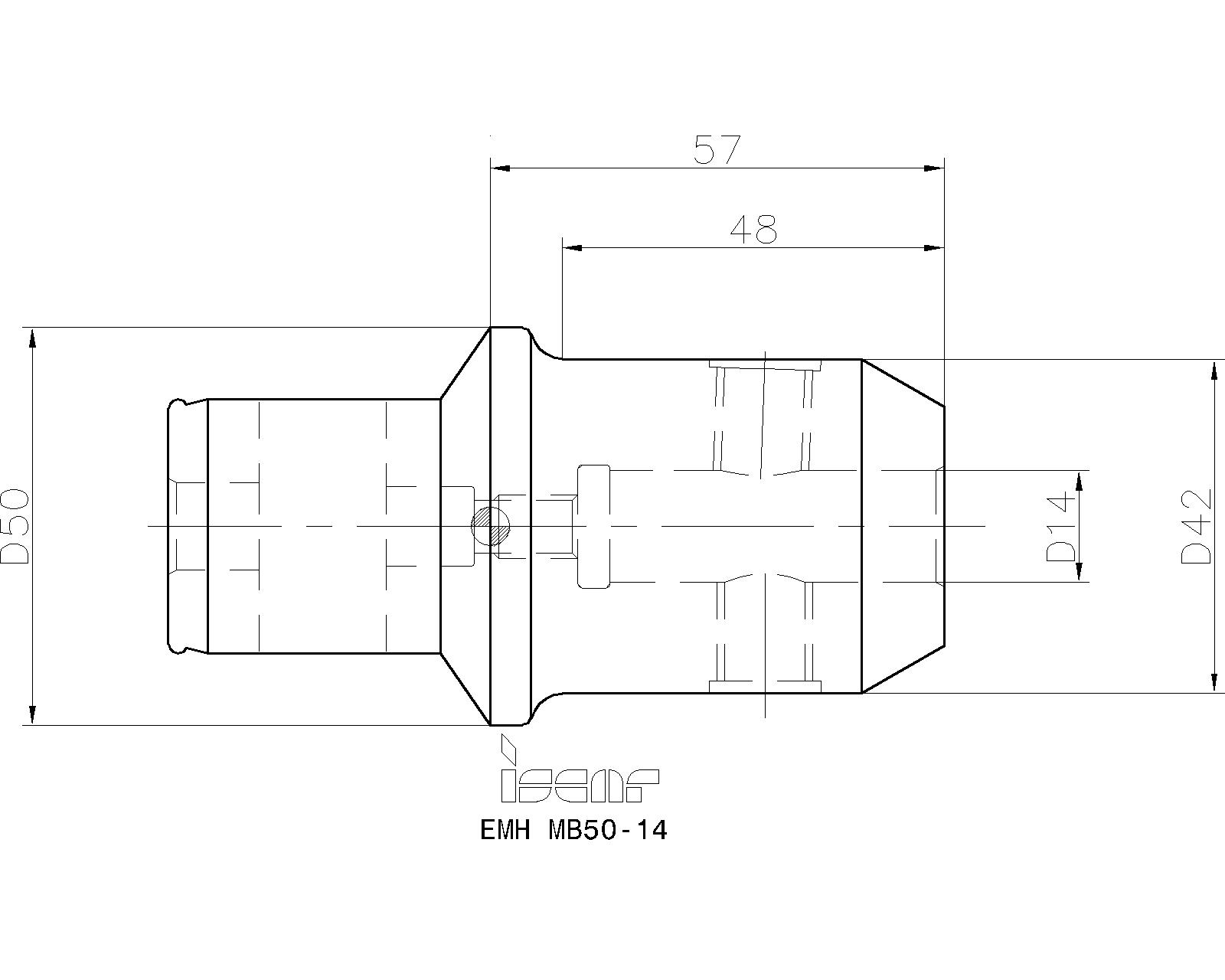

Item Designation: EMH MB50-14

DCONMS	DCONWS	BD	LB	LPR	L5	ADJRGA	Fig.		CCMS	CSP	OAL	GICAT	GIREM	giic
50.00	14.00	42.00	48.0	57.00	11.00	3.0	1.	0.84	IMB01C0500$$$$~	1~	97.50~	4550174		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	STPL	StockPerUser
4550174		3	0	0			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4550174&itemDesc=EMH MB50-14"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4550174&itemDesc=EMH MB50-14"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4550174&itemDesc=EMH MB50-14"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>

Items Per Package : 1
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.

Spare Parts
	4550938	BH EMH M12X15.5	Hex socket pipe plug
	4550927	BH EMH PRST M8X10B	Hex socket pipe plug
