Family Designation: EMH MB

Weldon and Whistle Notch side-lock holders with the MB modular boring connection system.

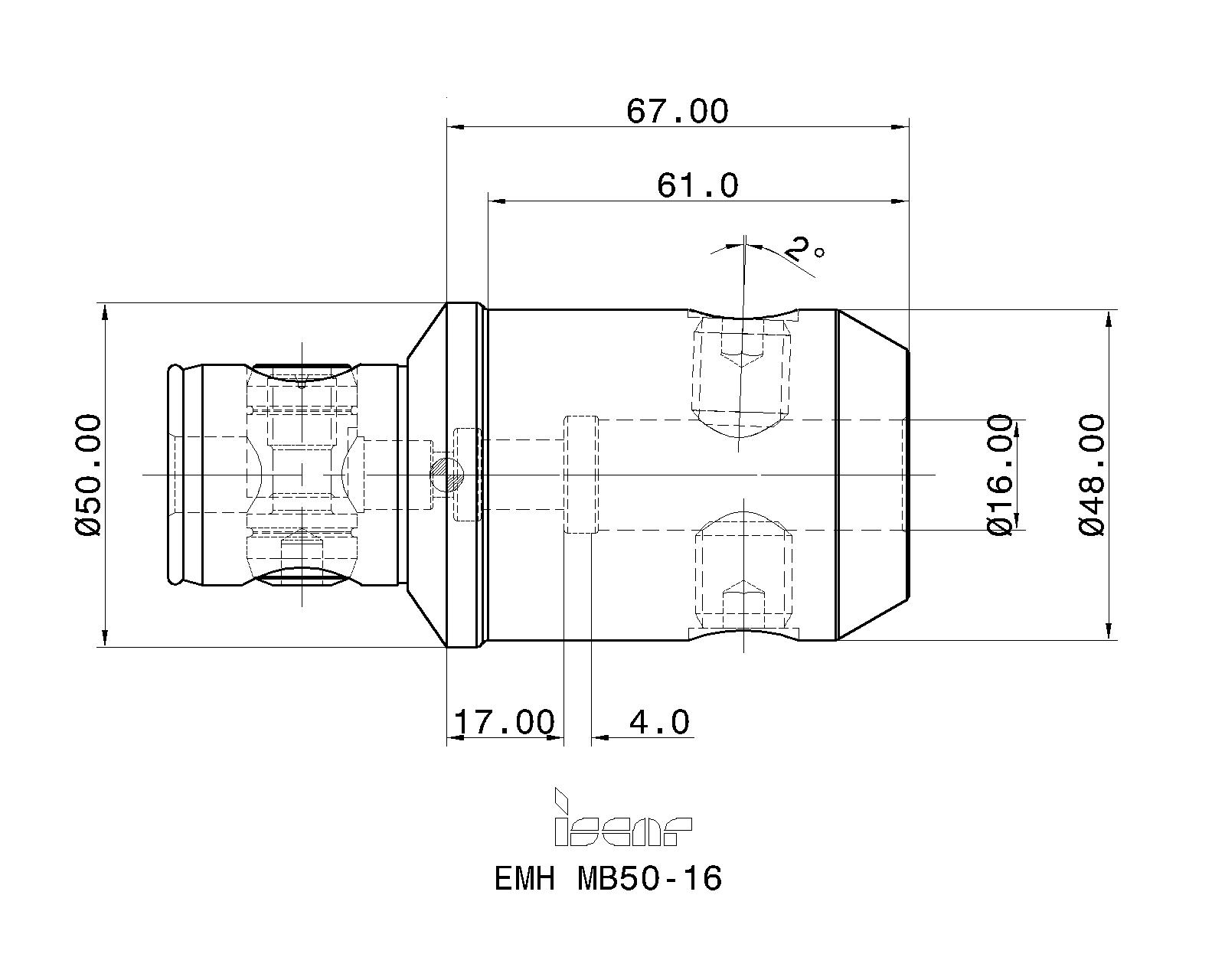

Item Designation: EMH MB50-16

DCONMS	DCONWS	BD	LB	LPR	L5	ADJRGA	Fig.		CCMS	CSP	OAL	GICAT	GIREM	giic
50.00	16.00	48.00	61.0	67.00	17.00	4.0	1.	1.12	IMB01C0500$$$$~	1~	107.50~	4550175		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	STPL	StockPerUser
4550175		3	0	0			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4550175&itemDesc=EMH MB50-16"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4550175&itemDesc=EMH MB50-16"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4550175&itemDesc=EMH MB50-16"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>

Items Per Package : 1
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
