ISCAR Cutting Tools - Metal Working Tools - EMH MB : 4550178

Geometry Checker ×

Family Designation: EMH MB

Weldon and Whistle Notch side-lock holders with the MB modular boring connection system.

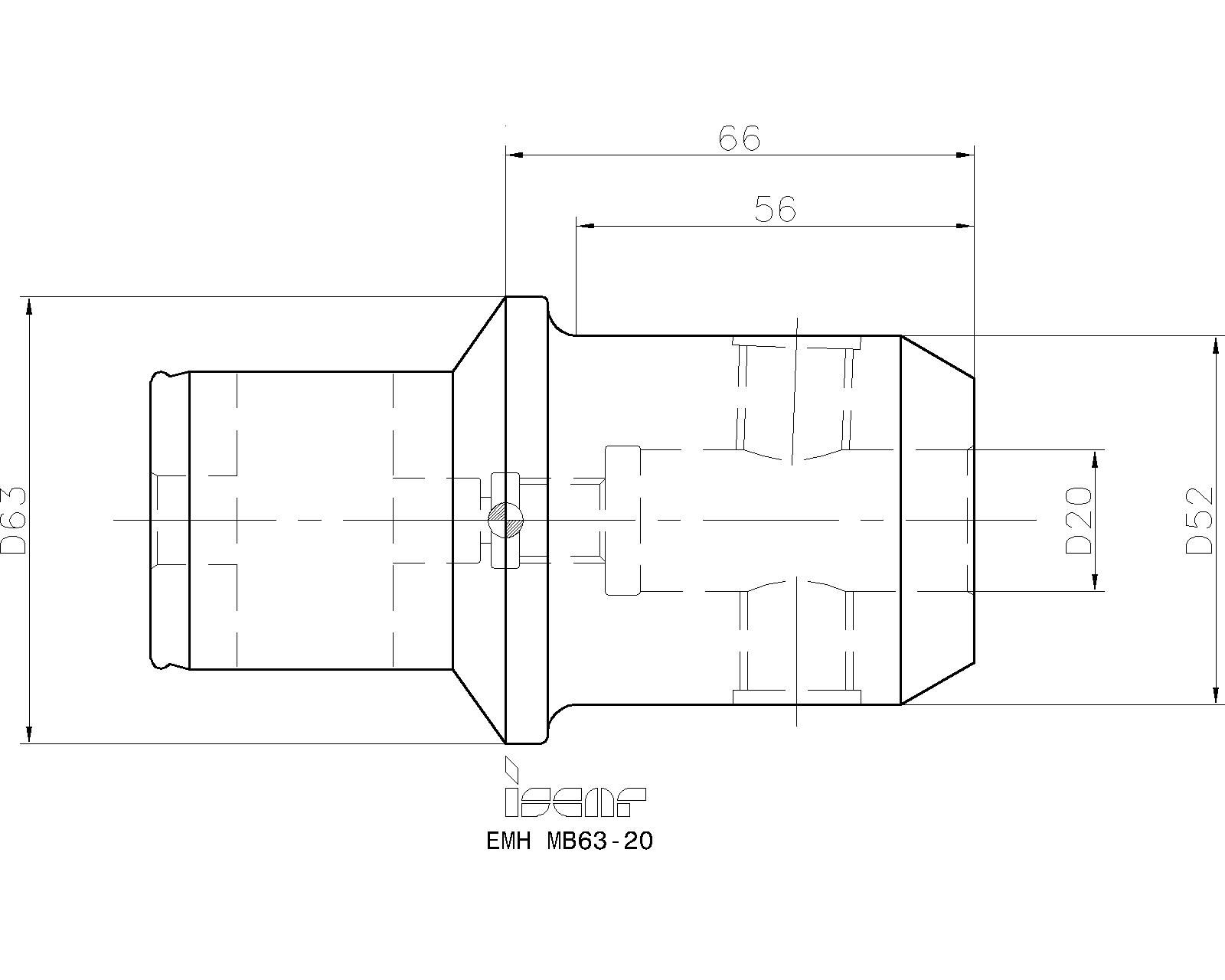

Item Designation: EMH MB63-20

DCONMS	DCONWS	BD	LB	LPR	L5	ADJRGA	Fig.		CCMS	CSP	OAL	GICAT	GIREM	giic
63.00	20.00	52.00	56.0	66.00	14.00	4.0	1.	1.55	IMB01C0630$$$$~	1~	116.00~	4550178		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	STPL	StockPerUser
4550178		1	0	80			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4550178&itemDesc=EMH MB63-20"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4550178&itemDesc=EMH MB63-20"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4550178&itemDesc=EMH MB63-20"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>

Items Per Package : 1
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.

Spare Parts
	4550940	BH EMH M16X15.5	Hex socket pipe plug
