Family Designation: EMH MB

Weldon and Whistle Notch side-lock holders with the MB modular boring connection system.

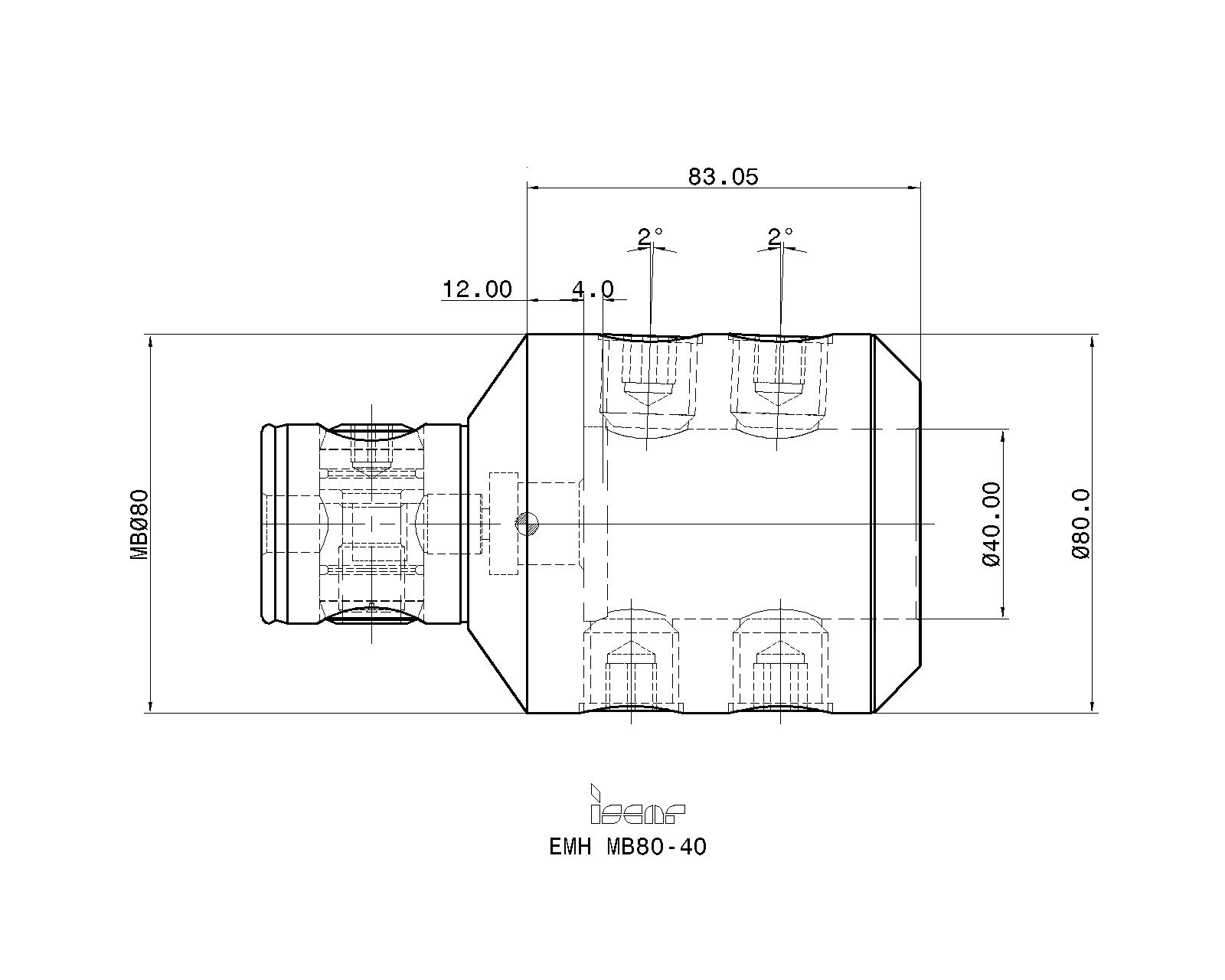

Item Designation: EMH MB80-40

DCONMS	DCONWS	BD	LB	LPR	L5	ADJRGA	Fig.		CCMS	CSP	OAL	GICAT	GIREM	giic
80.00	40.00	80.00	-	83.00	12.00	4.0	2.	3.21	IMB01C0800$$$$~	1~	138.95~	4550181		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	STPL	StockPerUser
4550181		3	0	8			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4550181&itemDesc=EMH MB80-40"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4550181&itemDesc=EMH MB80-40"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4550181&itemDesc=EMH MB80-40"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>

Items Per Package : 1
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.

Spare Parts
	4550942	BH EMH M20X19.5	Hex socket pipe plug	Details
