Family Designation: BHR MB Rough boring heads for diameter range 18-200 mm used on the MB modular boring system.
Representative Image

Representative Image

 COOLANT THROUGH TOOL
Item Designation: BHR MB16-16X34
BD DCONMS LF DCN  DCX  L1 IH  OAL RPMX  CSP  GICATGIREMgiic
16.0016.0034.0018.022.0-IH...18-2242.10~120000.06~4550231 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesGIFUT5GTCStock Availability
   US        EU     E. Asia		STPSTPLStockPerUser
4550231 148960<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4550231&itemDesc=BHR MB16-16X34"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'GTC', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4550231&itemDesc=BHR MB16-16X34"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4550231&itemDesc=BHR MB16-16X34"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a>
Items Per Package : 1
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
Click on individual item, then on "More Info" to see split view of its spare parts.
3D Representation

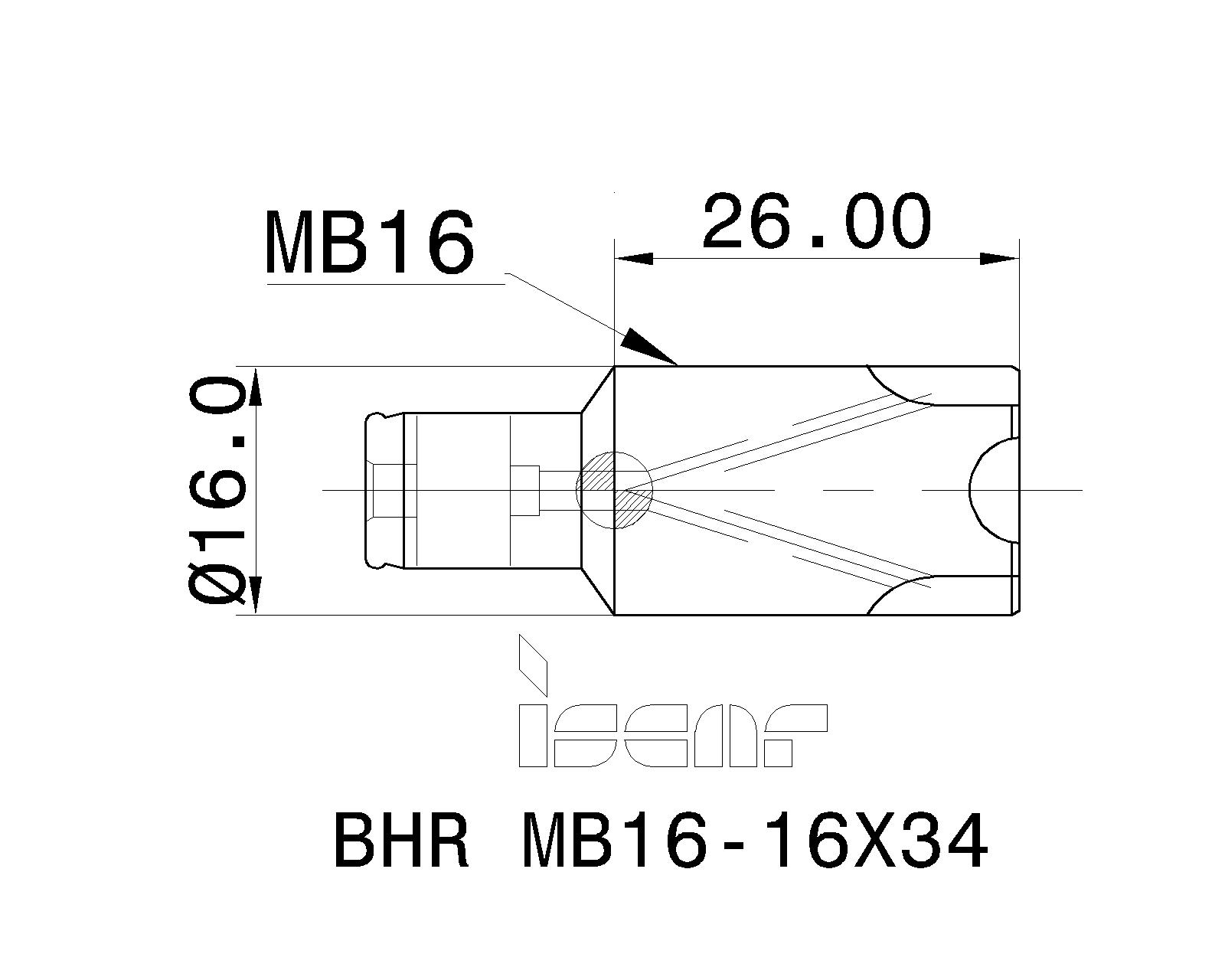

2D Representation
  Spare Parts
4550625BH NUT BHR MB16Rectangular nut
Details
4550337PLT 16
(Optional, should be ordered separately)		Rectangular nut
7002242SR M3X14 DIN912Socket head cap screw
Details
7000615SR M3X8 DIN913Socket set with flat
Details
