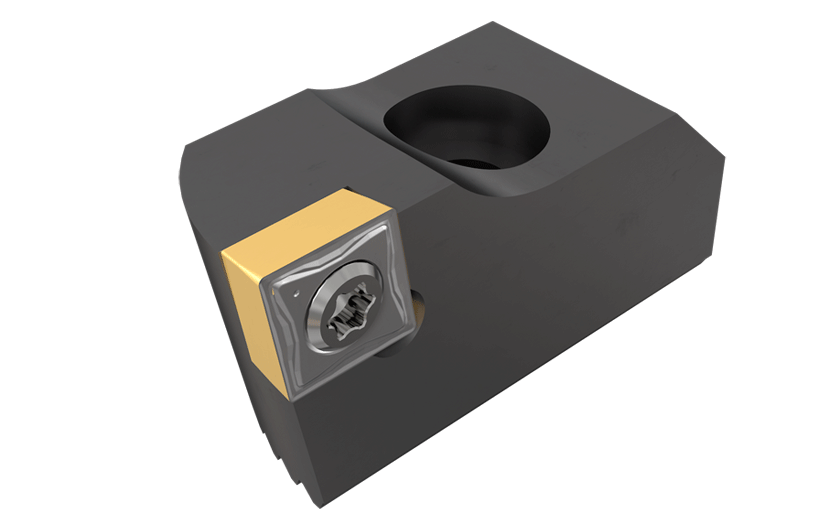

Family Designation: IHSR Rough boring tools for twin cutter configuration. Radial and axial edge positioned on the inner side of the opposite finishing tool of the MB modular boring system.


Item Designation: IHSR 28-38

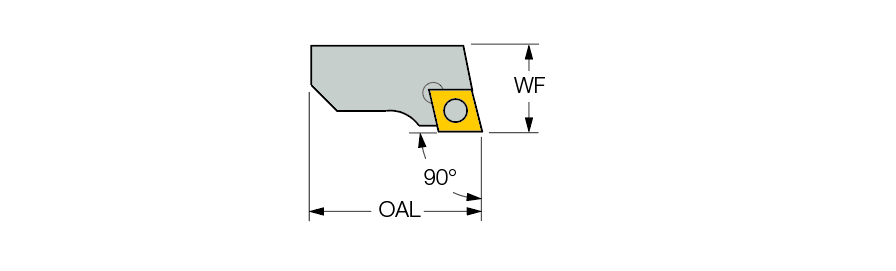

DCN  DCX  WF OAL Insert IC D1 GICATGIREMgiic
28.038.012.5023.00CCMT 0602...6.35~2.80~4550306 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4550306 124448<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=4550306&cat=4550306&itemDesc=IHSR 28-38"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a><a href="javascript:OpenDxf('4550306', 'IHSR 28-38' , 'IscarDxf' , '4550306-IHSR 28-38');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4550306&itemDesc=IHSR 28-38"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=4550306&itemDesc=IHSR 28-38"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
3D Representation

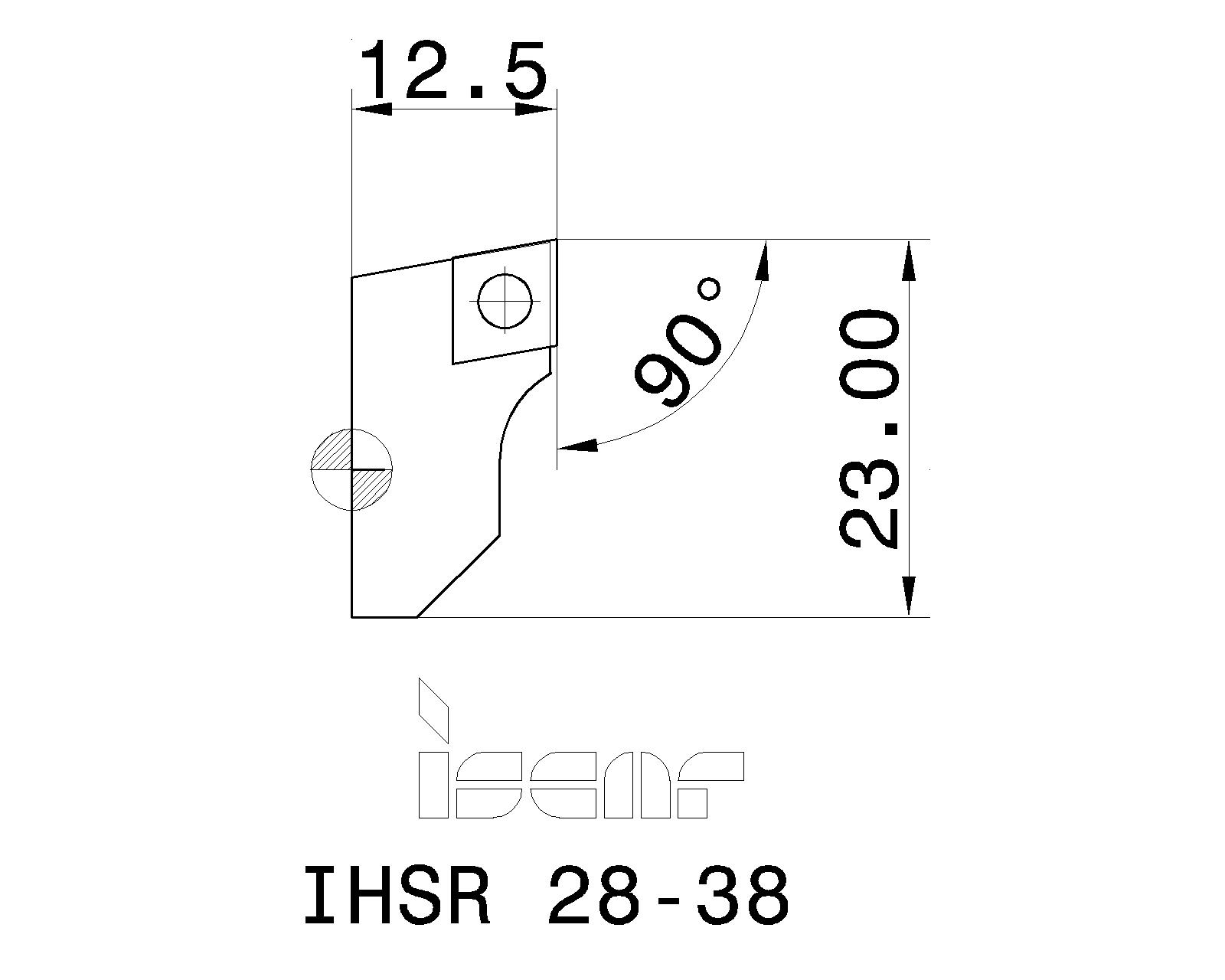

2D Representation
  Spare Parts
7000217SR 14-548Torx screw
Details
Recommended tightening torque:0.9 N*m
7000271T-7/5Torx key flag
Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
