Family Designation: BT-HYDRO

Hydraulic chucks with MASBT form AD shanks. for Semi-Finish and finish applications

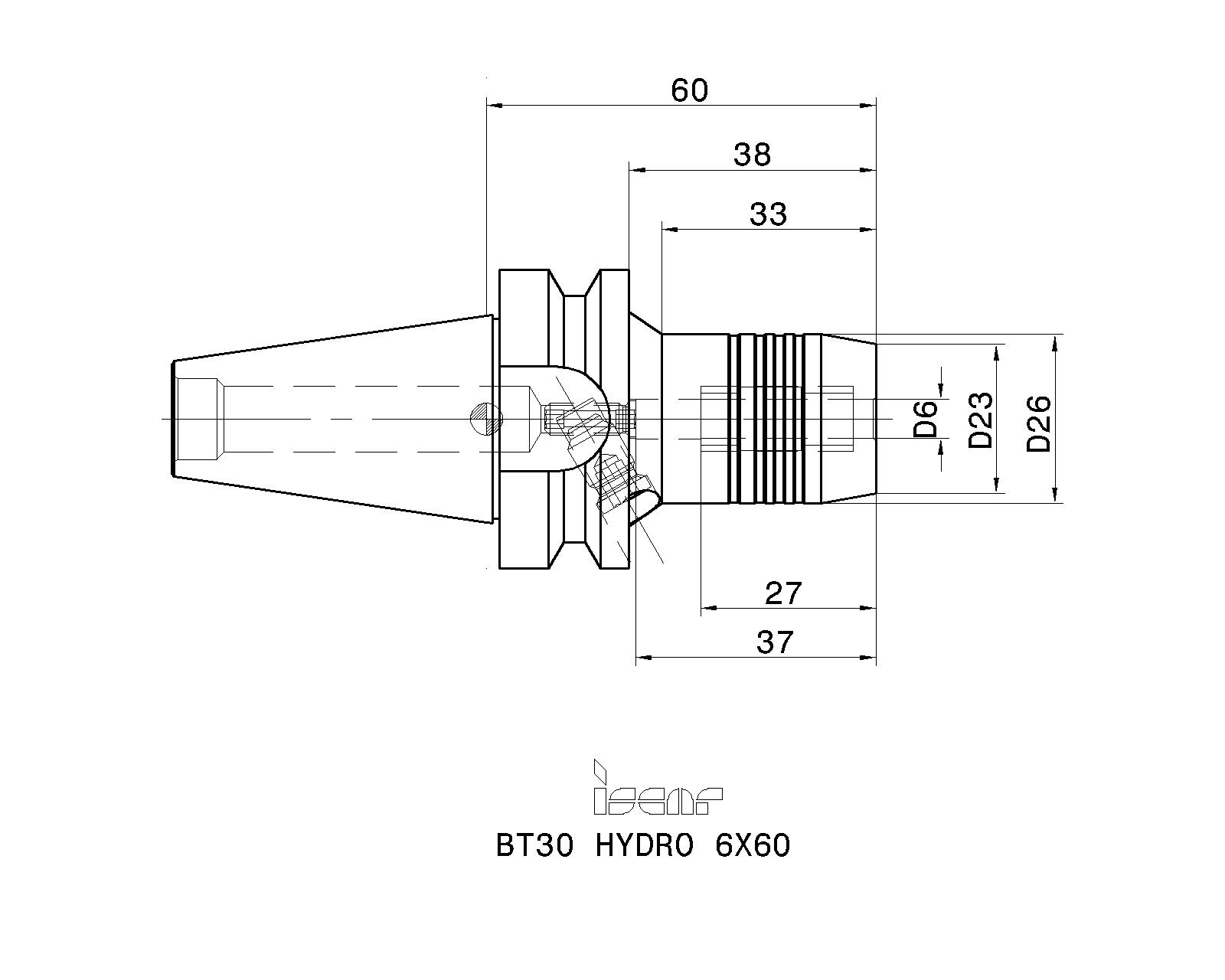

Item Designation: BT30 HYDRO 6X60

SS	CSI	DCONMS	DCONWS	BTED	BD	BD_2	LPR	LBX	LB	L min	ADJRGA	LSCWS	THID	CRKS	OAL	CDI		CCTMS	S. Std.	Shank	Mod	UST	BMC	DF		CSP	CZCMS	CCFWS	ISYC	CCFMS	CCTWS	LS	ISCTMP	BSC	CCFWS_2	CCMS	CCTWS_2	CCWS	CCWS_2	ClssID	CMCS	CNSC	CUBPMS	CUBPWS	CUBPWS_2	CXSC	CZCWS	CZCWS_2	GTC	GTC_2	HTA	LTA	TCDCNWS2	TCDCONMS	TCDCONWS	WTA	GICAT	GIREM	giic
30	6~	30.00~	6.00	23.00	26.00	-	60.00	38.0	-	27.0~	10.00	37.0	M5	M12	108.40~	0	0.58	SKG~	BT~	C~	002~	M~	S~	46.00~	Y~	1~	0300~	01~	401-01~	51~	ZYL~	48.4~	BT-HYDRO~	2~	~	SKG51C0300$$$$~	~	ZYL01F6000h$06~	F6000h$06~	71EAD3871D313~	5~	1~	C~	F~	F~	1~	6000~	6000~	-~	ADPRS_MSKG51_WZYL01~	~	60.00~	h6~	$$$$~	h6~	~	4559238		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
4559238		3	0	0				<a href="javascript:OpenDxf('4559238', 'BT30 HYDRO 6X60' , 'IscarDxf' , '4559238-BT30 HYDRO 6X60');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4559238&itemDesc=BT30 HYDRO 6X60"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4559238&itemDesc=BT30 HYDRO 6X60"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Chucking forces will be reduced by 25% if reduction sleeves are used.
Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (order separately).
The coolant passages in the B type flange are blocked with screws which can be removed when required.

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required


4517189	HYDRO CLAMP SCREW M8X14	Socket flat head screw
4517188	WRENCH HYDRO HEX 4 (Optional, should be ordered separately)	Clamping key	Details
4559432	TEST BAR HYDRO 6 (Optional, should be ordered separately)	Test bushing
