Family Designation: BT-HYDRO Hydraulic chucks with MAS­BT form AD shanks. for Semi-Finish and finish applications


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  SURFACE FINISH N5  G2.5/SIZE30,40=18K/SIZE50=12K  COOLANT THROUGH TOOL

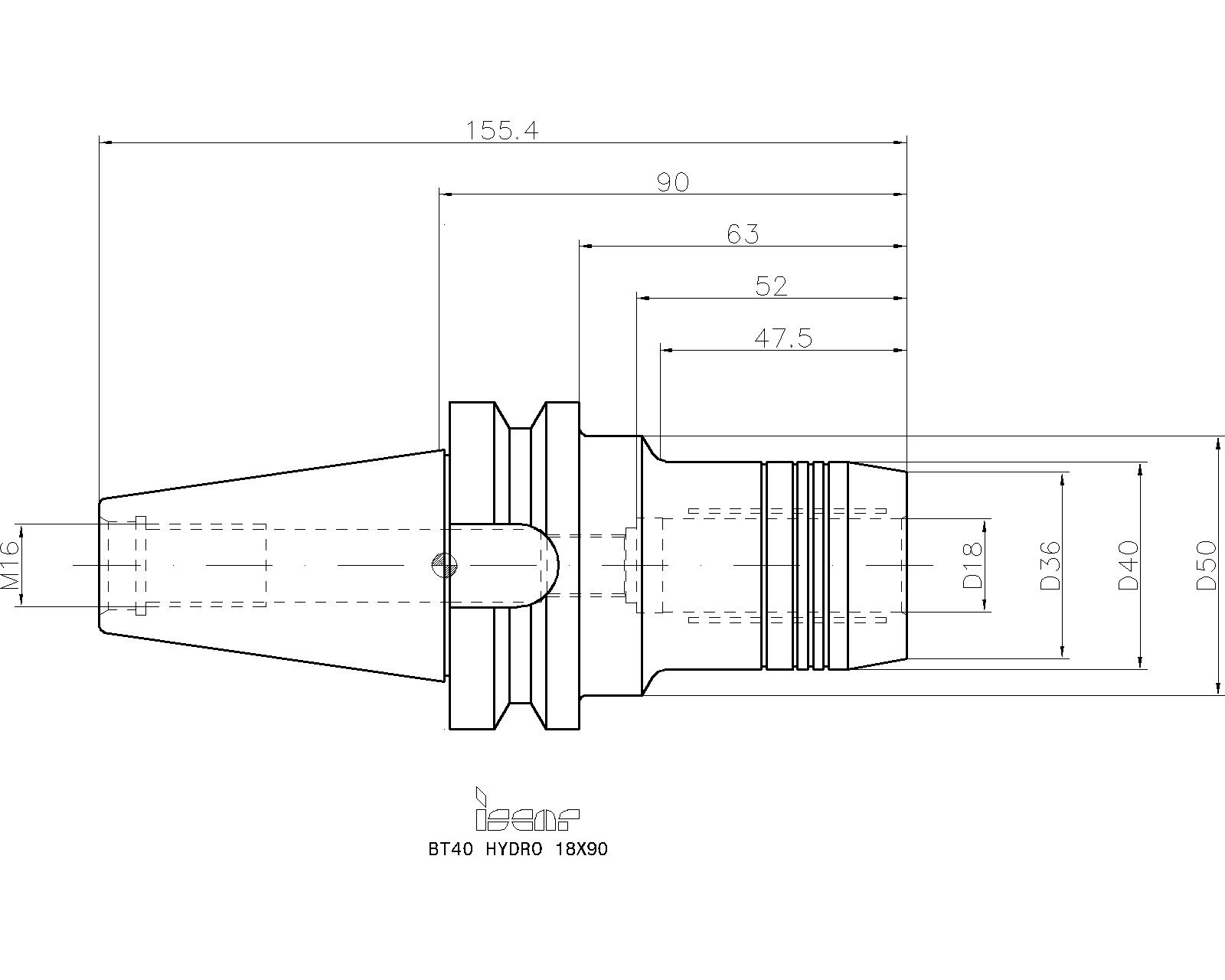

Item Designation: BT40 HYDRO 18X90
SS DCONMS DCONWS BTED BD BD_2 LPR LBX LB ADJRGA LSCWS THID CRKS OAL CDI  CSP  CCMS GICATGIREMgiic
4040.00~18.0036.0040.0050.0090.0063.047.5010.0052.0M12X1M16155.40~01.541~SKG51C0400$$$$~4559252 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4559252 300<a href="javascript:OpenDxf('4559252', 'BT40 HYDRO 18X90' , 'IscarDxf' , '4559252-BT40 HYDRO 18X90');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4559252&itemDesc=BT40 HYDRO 18X90"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4559252&itemDesc=BT40 HYDRO 18X90"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
Chucking forces will be reduced by 25% if reduction sleeves are used.
Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (order separately).
The coolant passages in the B type flange are blocked with screws which can be removed when required.
3D Representation
Assembly Video
2D Representation
  Spare Parts
4517189HYDRO CLAMP SCREW M8X14Socket flat head screw
4517188WRENCH HYDRO HEX 4
(Optional, should be ordered separately)		Clamping key
Details
4559438TEST BAR HYDRO 18
(Optional, should be ordered separately)		Test bushing
