Family Designation: DIN69871-HYDRO

Hydraulic chucks with DIN69871 Form ADB shanks (HYDROFIT).for SemiFinish and finish applications

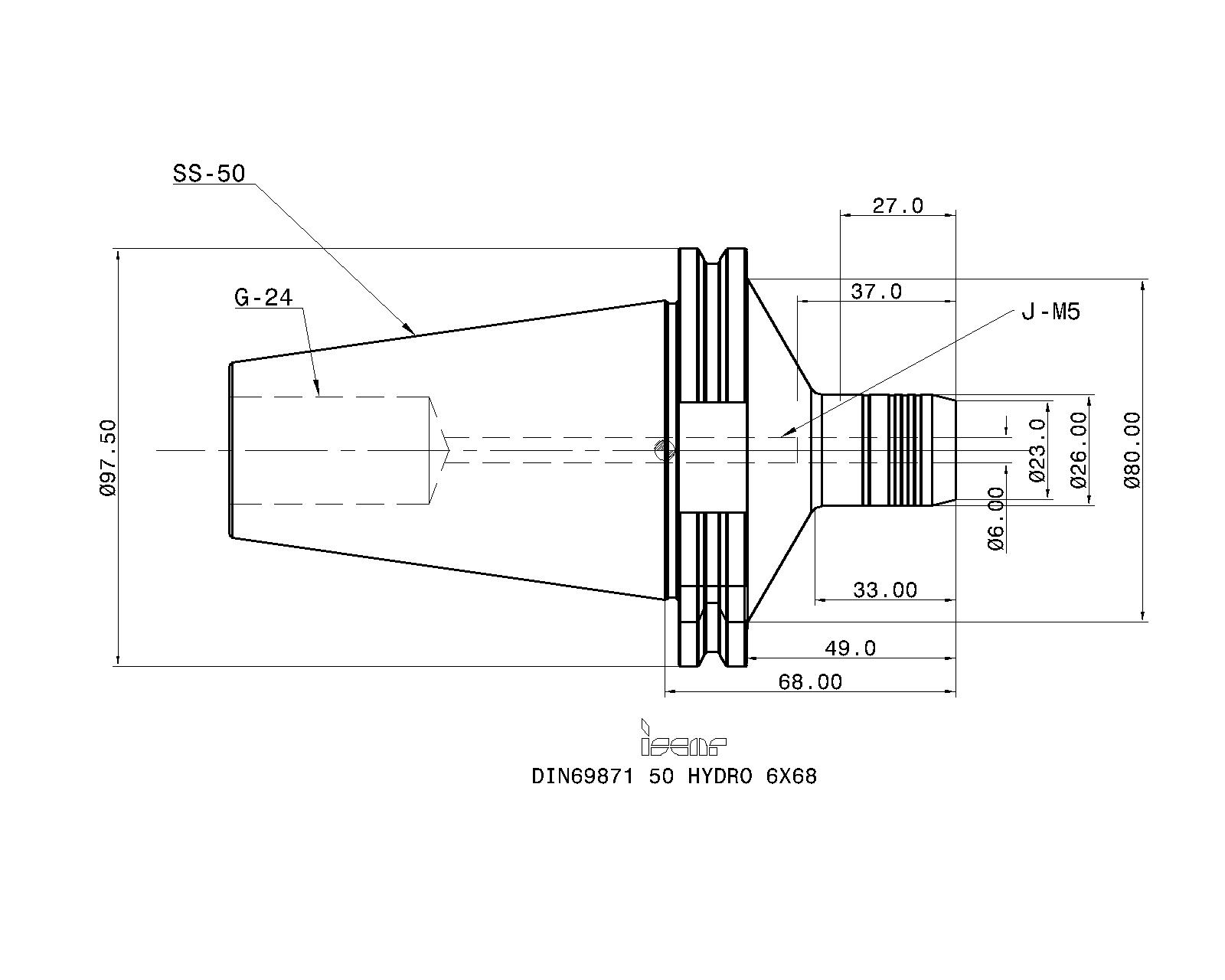

Item Designation: DIN69871 50 HYDRO 6X68

SS	DCONWS	DCONMS	CSI	BTED	BD	BD_2	LPR	LBX	LB	L min	ADJRGA	LSCWS	THID	CRKS	OAL	CDI		UST	S. Std.	BMC	Shank	DF		Mod	CSP	CCTMS	CCFMS	CUBPMS	CZCMS	TCDCONMS	ISYC	CCTWS	CCFWS	CUBPWS	CZCWS	TCDCONWS	CCMS	CCWS	ISCTMP	BSC	CCFWS_2	CCTWS_2	CCWS_2	ClssID	CMCS	CNSC	CUBPWS_2	CXSC	CZCWS_2	GTC	GTC_2	HTA	ISCTMP_2	LS	LTA	TCDCNWS2	WTA	GICAT	GIREM	giic
50	6.00	50.00~	6~	23.00	26.00	80.00	68.00	49.0	33.00	27.0~	10.00	37.0	M5	M24	169.75~	1	3.10	M~	DIN69871~	S~	C~	97.50~	Y~	002~	1~	SKG~	17~	C~	0500~	$$$$~	401-01~	ZYL~	01~	F~	6000~	h6~	SKG17C0500$$$$~	ZYL01F6000h$06~	-~	3~	~	~	F0060h$06~	71EAD3871D313~	5~	7~	F~	1~	0060~	-~	ADPRS_MSKG17_WZYL01~	~	-~	101.8~	68.00~	h6~	~	4559294	Balanced to G2.5/12,000 RPM.	0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
4559294		3	0	8				<a href="javascript:OpenDxf('4559294', 'DIN69871 50 HYDRO 6X68' , 'IscarDxf' , '4559294-DIN69871 50 HYDRO 6X68');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4559294&itemDesc=DIN69871 50 HYDRO 6X68"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4559294&itemDesc=DIN69871 50 HYDRO 6X68"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
Balanced to G2.5/12,000 RPM.

Items Per Package : 1
Chucking forces will be reduced by 25% if reduction sleeves are used.
Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately).
The coolant passages in the B type flange are blocked with screws which can be removed when required.

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required


4517189	HYDRO CLAMP SCREW M8X14	Socket flat head screw
4559432	TEST BAR HYDRO 6 (Optional, should be ordered separately)	Test bushing
4517188	WRENCH HYDRO HEX 4 (Optional, should be ordered separately)	Clamping key	Details
