Family Designation: DIN69871-HYDRO Hydraulic chucks with DIN69871 Form ADB shanks (HYDROFIT).for Semi­Finish and finish applications


 RUNOUT (INT) 0.003MM(.00012  TAPER  HARDNESS 58-60  SURFACE FINISH N5  G2.5/SIZE30,40=18K/SIZE50=12K  COOLANT THROUGH TOOL

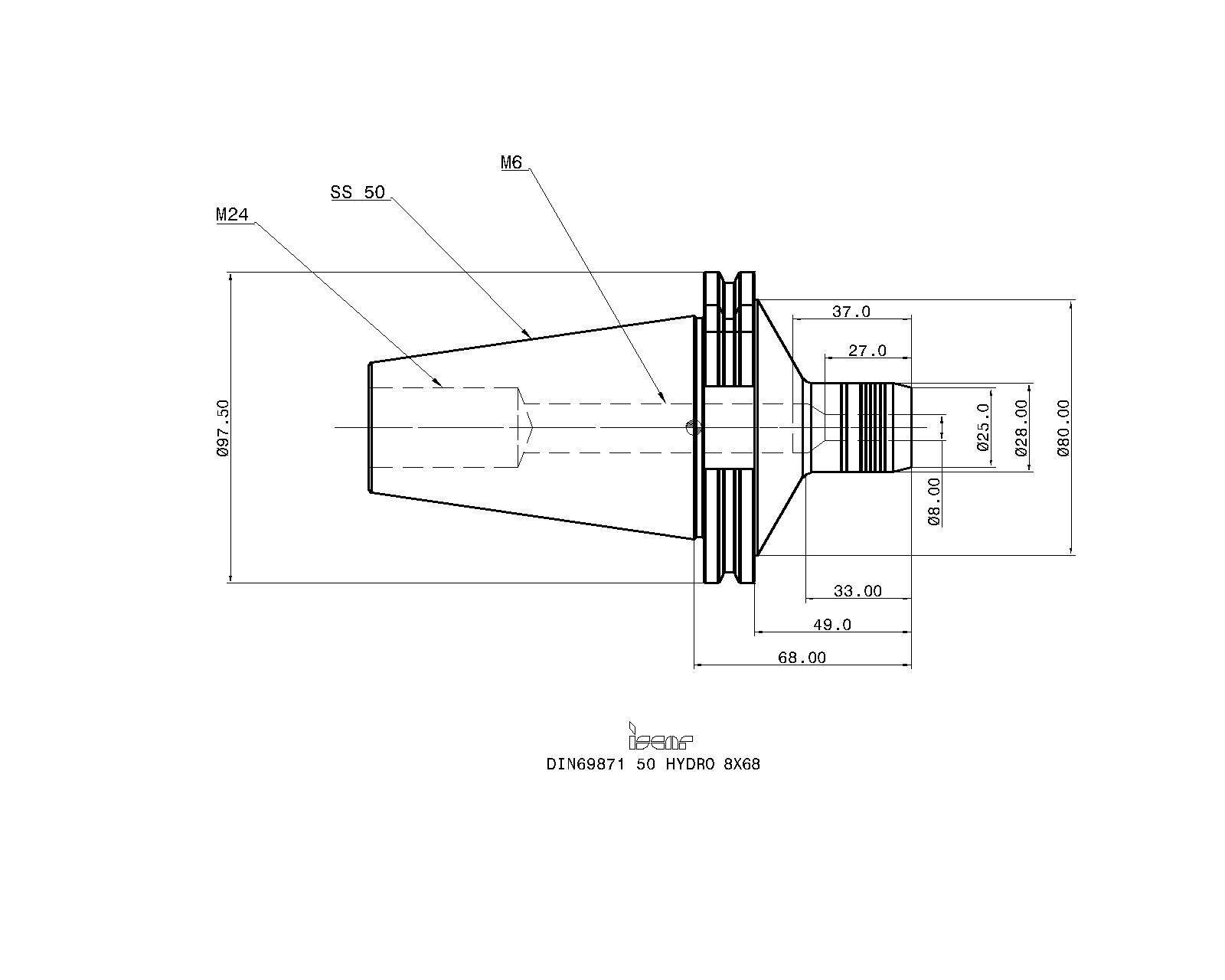

Item Designation: DIN69871 50 HYDRO 8X68
SS DCONWS DCONMS BTED BD BD_2 LPR LBX LB ADJRGA LSCWS THID CRKS OAL CDI  CSP  CCMS GICATGIREMgiic
508.0050.00~25.0028.0080.0068.0049.033.0010.0037.0M6M24169.75~13.101~SKG17C0500$$$$~4559295 Balanced to G2.5/12,000 RPM. 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4559295 300<a href="javascript:OpenDxf('4559295', 'DIN69871 50 HYDRO 8X68' , 'IscarDxf' , '4559295-DIN69871 50 HYDRO 8X68');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4559295&itemDesc=DIN69871 50 HYDRO 8X68"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4559295&itemDesc=DIN69871 50 HYDRO 8X68"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Balanced to G2.5/12,000 RPM.
Items Per Package : 1
Chucking forces will be reduced by 25% if reduction sleeves are used.
Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately).
The coolant passages in the B type flange are blocked with screws which can be removed when required.
3D Representation
Assembly Video
2D Representation
  Spare Parts
4517189HYDRO CLAMP SCREW M8X14Socket flat head screw
4559433TEST BAR HYDRO 8
(Optional, should be ordered separately)		Test bushing
4517188WRENCH HYDRO HEX 4
(Optional, should be ordered separately)		Clamping key
