ISCAR Cutting Tools - Metal Working Tools - HSK A-HYDRO (long) : 4559309 - HSK A63 HYDRO 10X200
Geometry Checker ×

Family Designation: HSK A-HYDRO (long) Long projection hydraulic chucks with HSK DIN69893 form A tapered shanks. for Semi-Finish and finish applications
.

.

 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  SURFACE FINISH N5  G2.5/HSK A50/63 25K/HSK A80/100 18K  COOLANT THROUGH TOOL
Item Designation: HSK A63 HYDRO 10X200
DCONMS DCONWS BTED BD BD_2 LPR LBX LB ADJRGA LSCWS THID OAL CDI  CSP  CCMS GICATGIREMgiic
63.0010.0027.0030.0050.00200.00174.0154.0010.0042.0M8X1232.00~11.741~HSK01C0630$$$$~4559309 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesAdd to AssemblyGTCStock Availability
   US        EU     E. Asia		STPSTPLStockPerUser
4559309 308<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4559309&itemDesc=HSK A63 HYDRO 10X200"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4559309&itemDesc=HSK A63 HYDRO 10X200"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4559309&itemDesc=HSK A63 HYDRO 10X200"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>
Items Per Package : 1
Chucking forces will be reduced by 25% if reduction sleeves are used.
A cooling tube must be used with coolant through HSK spindles (order separately).
Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (must be ordered separately).
3D Representation
Assembly Video

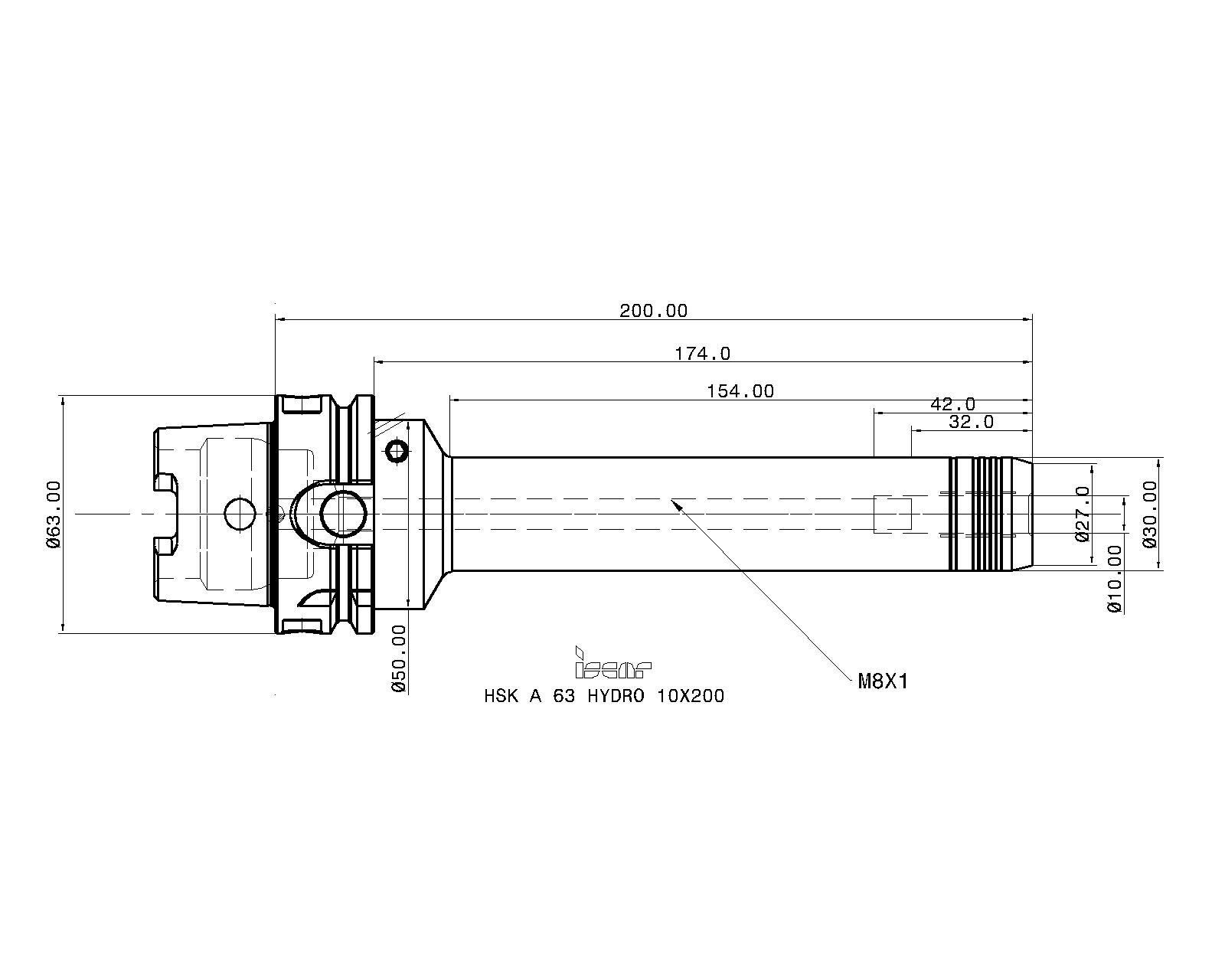

2D Representation
  Spare Parts
4517189HYDRO CLAMP SCREW M8X14Socket flat head screw
4559434TEST BAR HYDRO 10
(Optional, should be ordered separately)		Test bushing
4517188WRENCH HYDRO HEX 4
(Optional, should be ordered separately)		Clamping key
Details
4561256COOLING TUBE HSK A63
(Optional, should be ordered separately)		Cooling tube
4561258WRENCH COOL TUBE HSK63
(Optional, should be ordered separately)		Cooling tube wrench
