Family Designation: HSK A-HYDRO (long) Long projection hydraulic chucks with HSK DIN69893 form A tapered shanks. for Semi-Finish and finish applications
.

.

 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  SURFACE FINISH N5  G2.5/HSK A50/63 25K/HSK A80/100 18K  COOLANT THROUGH TOOL

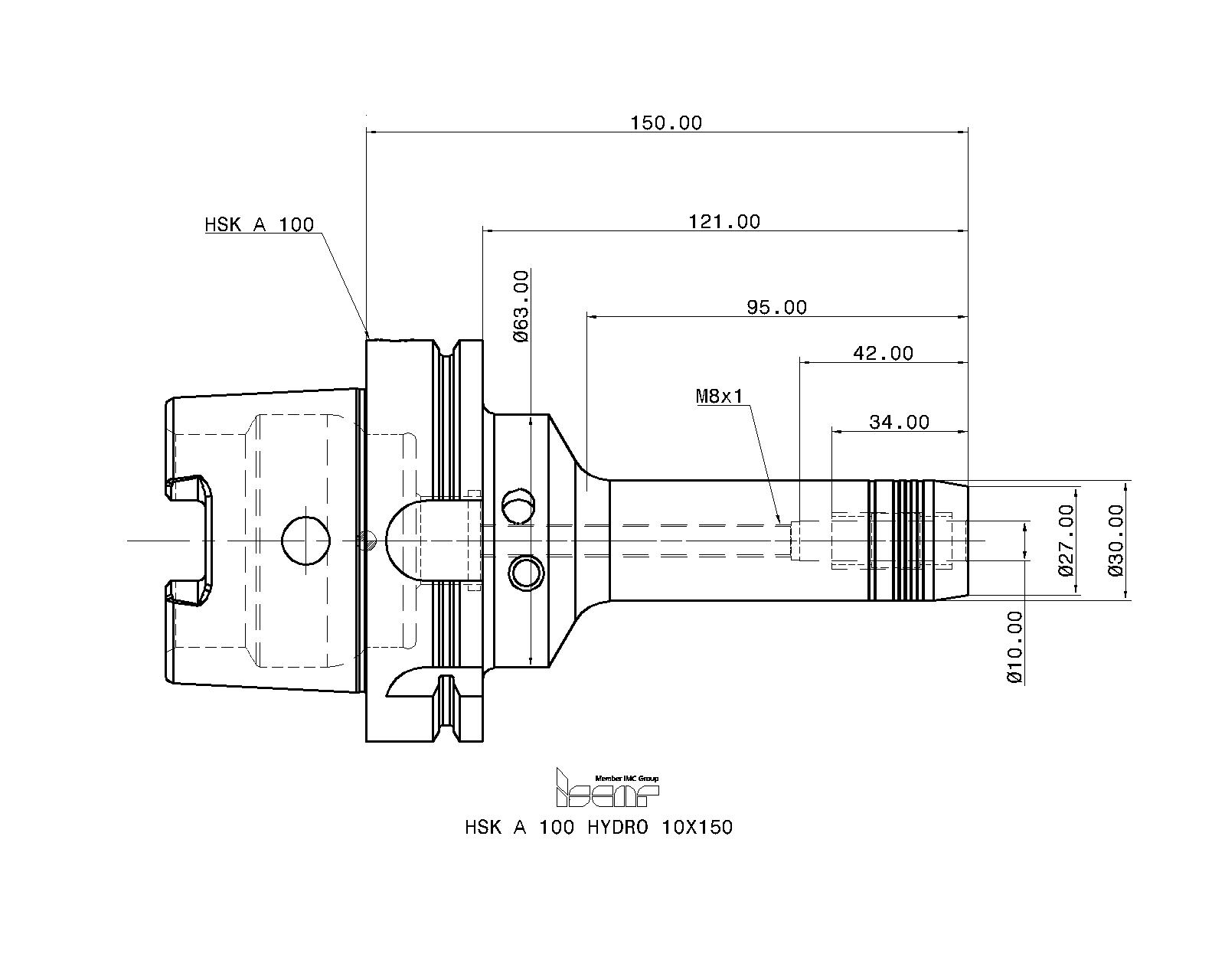

Item Designation: HSK A100 HYDRO 10X150
DCONMS DCONWS BTED BD BD_2 LPR LBX LB ADJRGA LSCWS THID OAL CDI  CSP  CCMS GICATGIREMgiic
100.0010.0027.0030.0063.00150.00121.095.0010.0042.0M8X1200.00~13.111~HSK01C1000$$$$~4559326 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesAdd to AssemblyGTCStock Availability
   US        EU     E. Asia		STPSTPLStockPerUser
4559326 300<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4559326&itemDesc=HSK A100 HYDRO 10X150"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4559326&itemDesc=HSK A100 HYDRO 10X150"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4559326&itemDesc=HSK A100 HYDRO 10X150"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>
Items Per Package : 1
Chucking forces will be reduced by 25% if reduction sleeves are used.
A cooling tube must be used with coolant through HSK spindles (order separately).
Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (must be ordered separately).
3D Representation
Assembly Video
2D Representation
  Spare Parts
4517189HYDRO CLAMP SCREW M8X14Socket flat head screw
4559434TEST BAR HYDRO 10
(Optional, should be ordered separately)		Test bushing
4517188WRENCH HYDRO HEX 4
(Optional, should be ordered separately)		Clamping key
Details
4511691COOLING TUBE HSK A100
(Optional, should be ordered separately)		Cooling tube
4561259WRENCH COOL TUBE HSK100
(Optional, should be ordered separately)		Cooling tube wrench
