Family Designation: HSK A-ER DIN6499 ER collet chucks with HSK DIN69893 form A tapered shanks.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  SURFACE FINISH N5  G2.5/25000 RPM  COOLANT THROUGH TOOL
Item Designation: HSK A63 ER40X100

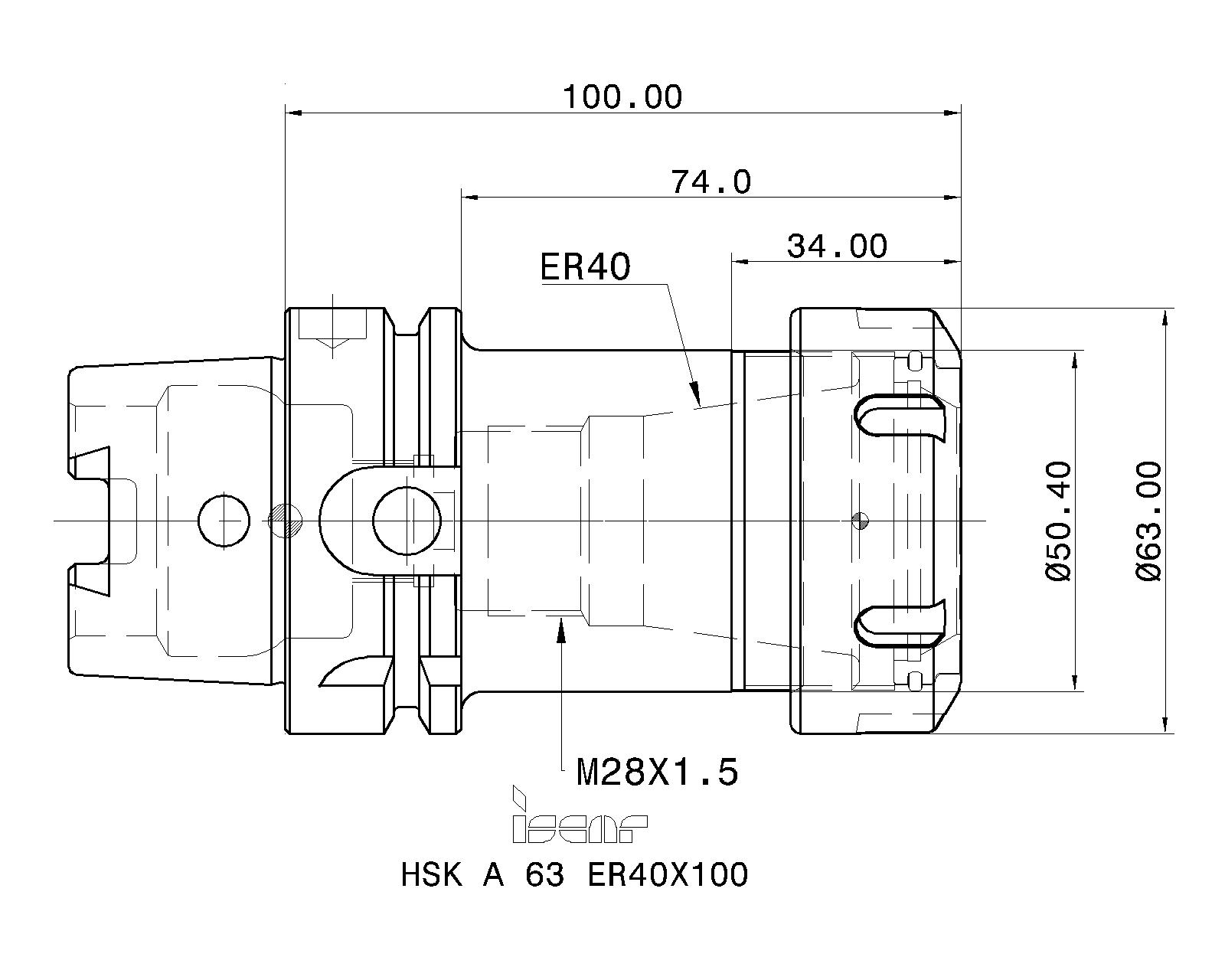

DCONMS CSI DCONNWS  DCONXWS  BD BD_2 LPR LBX LB THID OAL DCP  CSP  CCMS GICATGIREMgiic
63.00ER403.026.063.0050.40100.0074.034.00M28X1.5132.00~11.161~01C$$$$~4561153 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
4561153 1056<a href="javascript:OpenDxf('4561153', 'HSK A63 ER40X100' , 'IscarDxf' , '4561153-HSK A63 ER40X100');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4561153&itemDesc=HSK A63 ER40X100"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=4561153&itemDesc=HSK A63 ER40X100"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (to be ordered separately).
For shank dimensions, Click on "More Info".
3D Representation
Assembly Video
2D Representation
  Spare Parts
4513028NUT ER40 TOPER clamping TOP nut
4513015WRENCH ER40
(Optional, should be ordered separately)
Wrench for ER chuck nut
Details
4502580PRESET ER-JET 28X1.5
(Optional, should be ordered separately)
Preset screw
Details
4561256COOLING TUBE HSK A63
(Optional, should be ordered separately)
Cooling tube
Details
4561258WRENCH COOL TUBE HSK63
(Optional, should be ordered separately)
Cooling tube wrench
Details
