ISCAR Cutting Tools - Metal Working Tools - HSK A-ER : 4561217 - HSK A63 ER20X120
Geometry Checker ×

Family Designation: HSK A-ER DIN6499 ER collet chucks with HSK DIN69893 form A tapered shanks.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  SURFACE FINISH N5  G2.5/25000 RPM  COOLANT THROUGH TOOL
Item Designation: HSK A63 ER20X120
DCONMS CSI DCONNWS  DCONXWS  BD BD_2 LPR LBX LB THID OAL CDI  CSP  CCMS GICATGIREMgiic
63.00ER201.013.034.0034.00120.0094.028.00M12152.00~11.091~01C$$$$~4561217 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4561217 11281072<a href="javascript:OpenDxf('4561217', 'HSK A63 ER20X120' , 'IscarDxf' , '4561217-HSK A63 ER20X120');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4561217&itemDesc=HSK A63 ER20X120"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4561217&itemDesc=HSK A63 ER20X120"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (to be ordered separately).
For shank dimensions, Click on "More Info".

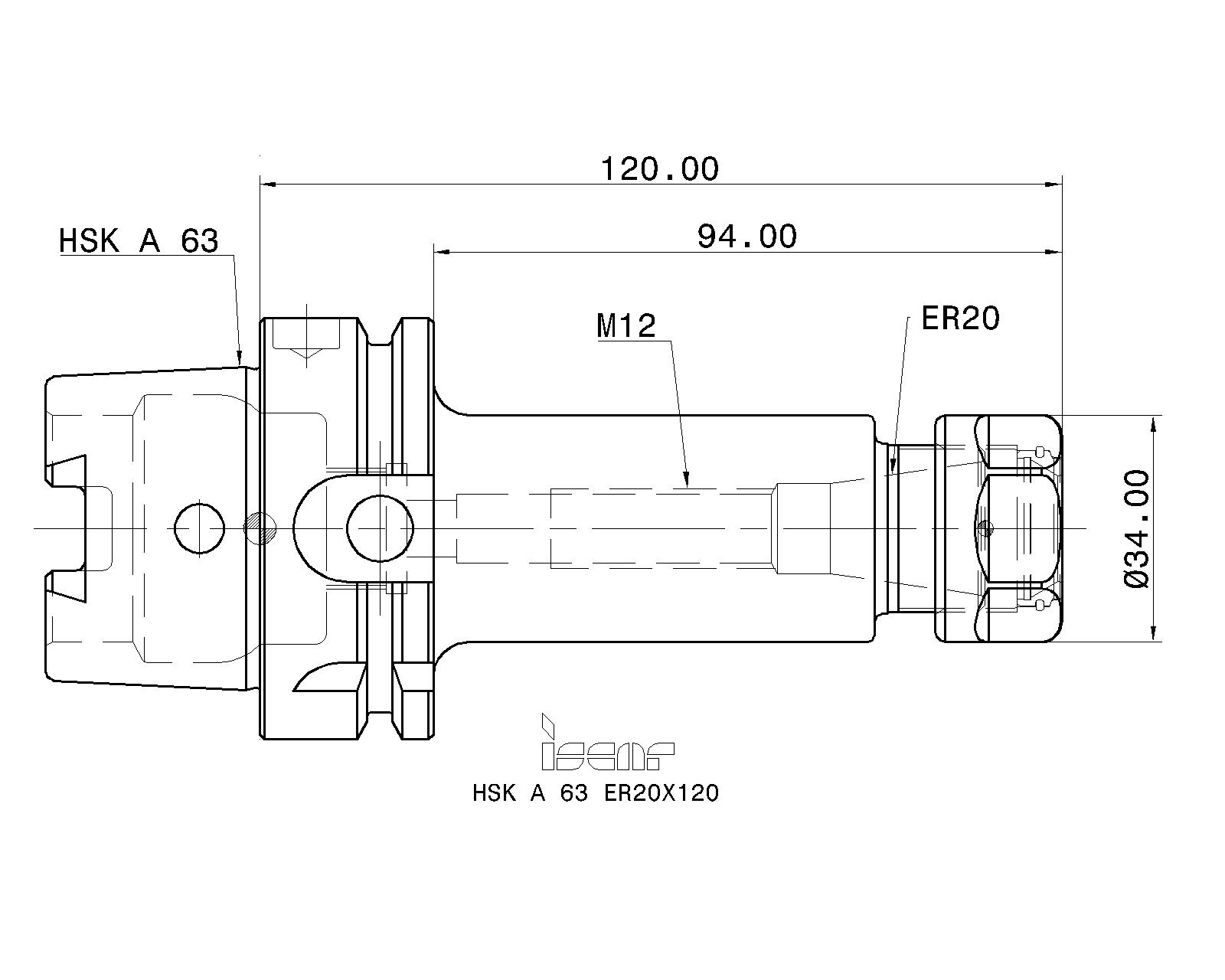

3D Representation
Assembly Video
2D Representation
  Spare Parts
4513025NUT ER20 TOPER clamping TOP nut
4513012WRENCH ER20
(Optional, should be ordered separately)		Wrench for ER chuck nut
4502384PRESET ER-JET 12X1.75
(Optional, should be ordered separately)		Preset screw
4561256COOLING TUBE HSK A63
(Optional, should be ordered separately)		Cooling tube
4561258WRENCH COOL TUBE HSK63
(Optional, should be ordered separately)		Cooling tube wrench
4513094PRESET ER-JET 12X1.75L
(Optional, should be ordered separately)		Preset screw
