Family Designation: MULTI-CLAMP C#

Rotary clamping fixtures for CAMFIX (ISO 26623-1) tapered shank toolholders.

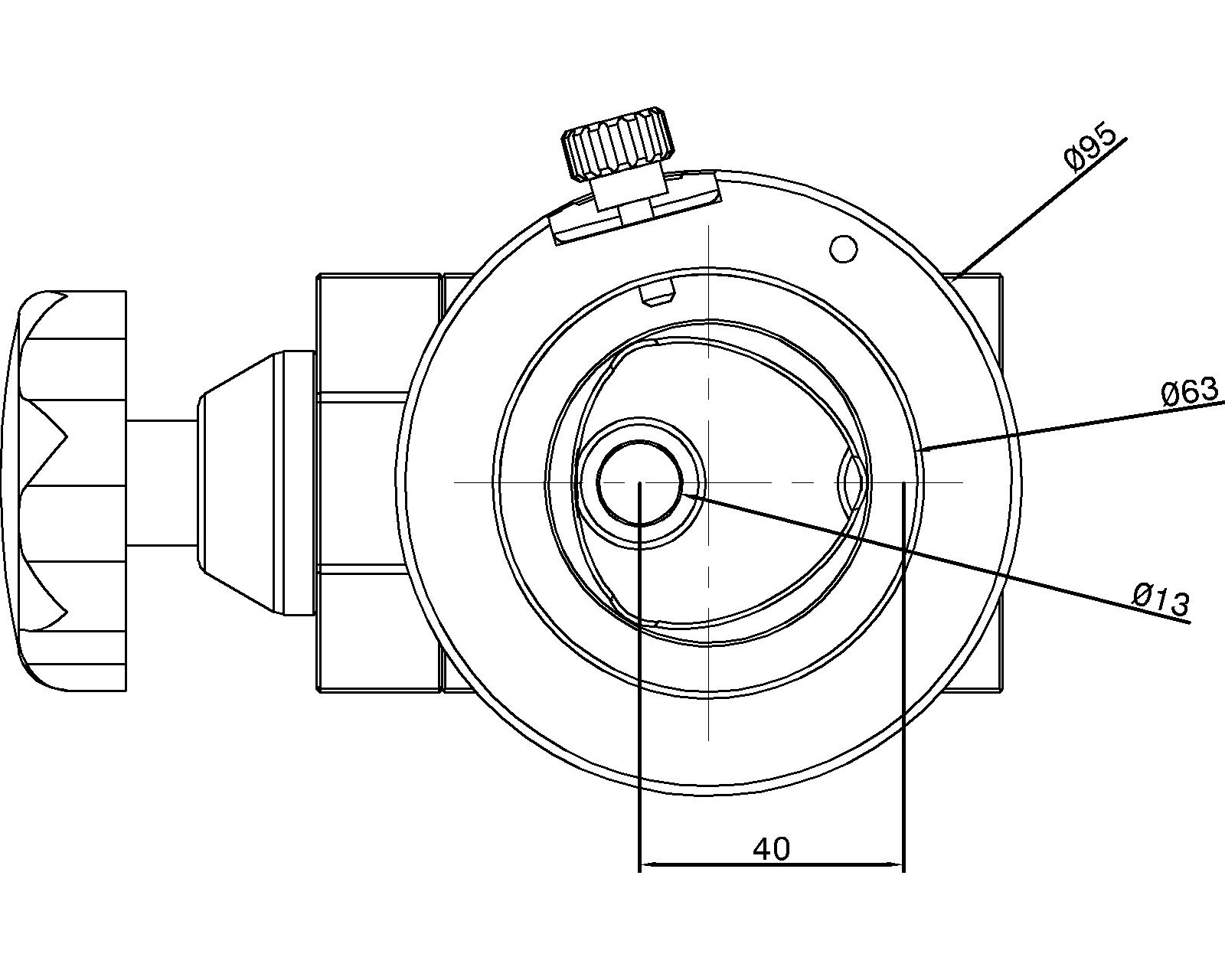

Representative Image

Item Designation: MULTI CLAMP C6

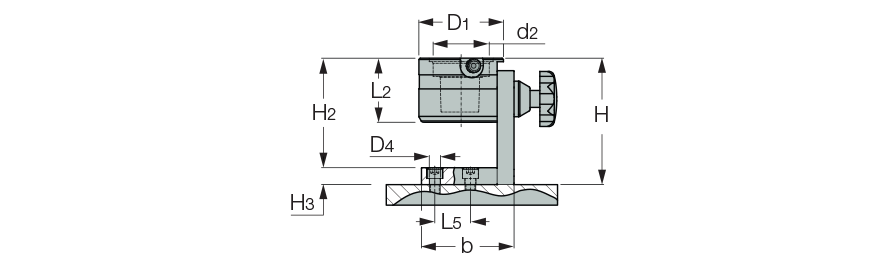

S. Std.	SS	d2	D1	L2	H	H2	H3	b	L5	D4	DCONMS	GICAT	GIREM	giic
C6	63	63.00	95.00	72.00	142.0	123.0	19.0	104.0	40.00	12.50	63.00~	4561418		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	STPL	StockPerUser
4561418		1	224	232			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=0&cat=4561418&itemDesc=MULTI CLAMP C6"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'GTC', 'ItemPage');"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4561418&itemDesc=MULTI CLAMP C6"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4561418&itemDesc=MULTI CLAMP C6"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a>

Items Per Package : 1
