Family Designation: C#-SRKIN

Thermal shrink chucks with integral CAMFIX (ISO26623-1 standard) tapered shanks, for solid carbide, HSS and steel tools with h6 tolerance.

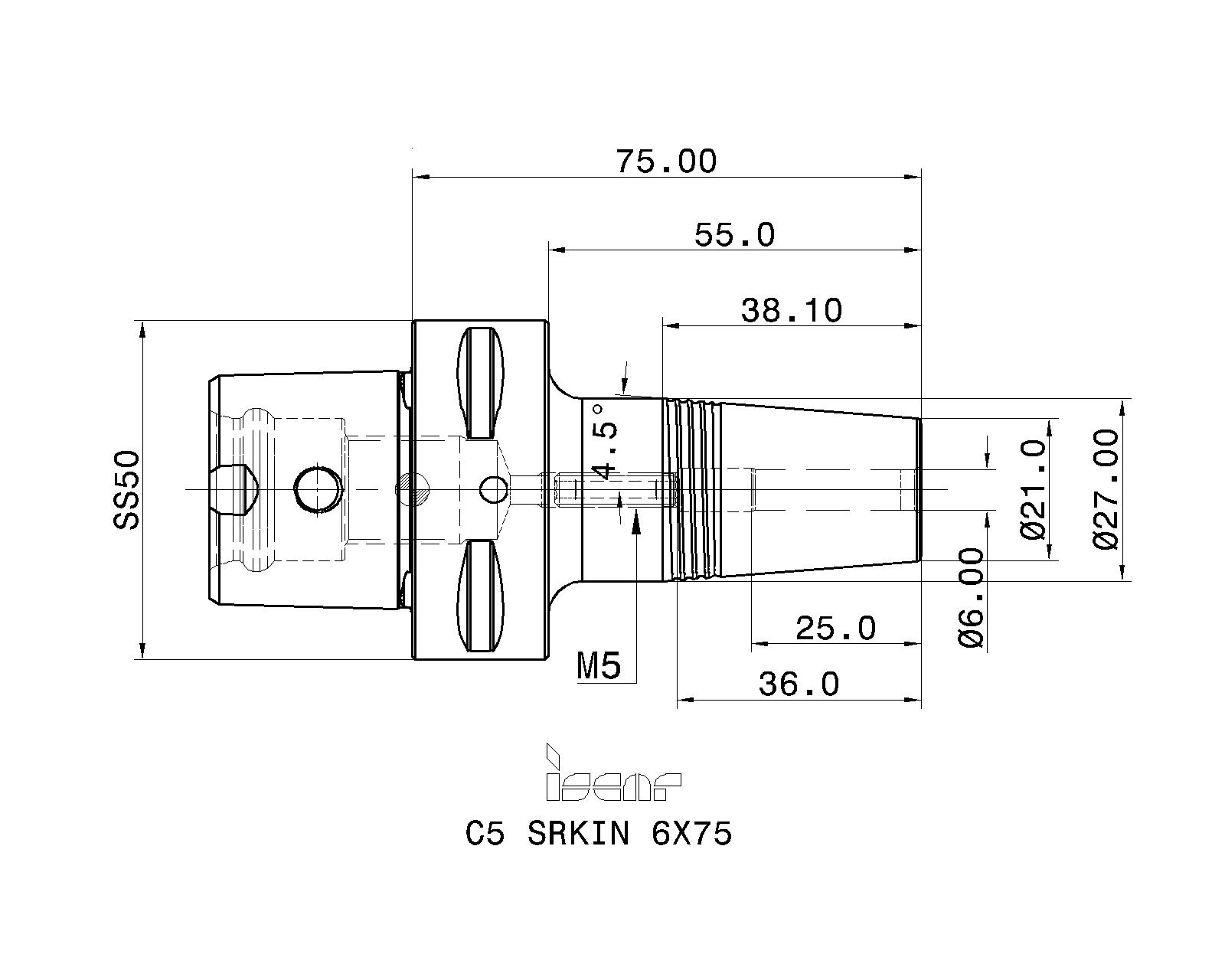

Item Designation: C5 SRKIN 6X75

DCONMS	DCONWS	SS	BTED	BD	LPR	LBX	LB	L min	ADJRGA	LSCWS	THID	Key	OAL	CDI		CSt	Shank	Mod	MINI	UST	BMC	ISYC	CCTMS	CCFMS	CUBPMS	CZCMS	TCDCONMS	CCTWS	CCFWS	CUBPWS	CZCWS	TCDCONWS		CSP	ISCTMP	BSC	CCFWS_2	CCFWS_3	CCMS	CCTWS_2	CCTWS_3	CCWS	CCWS_2	CCWS_3	ClssID	ClssID_2	ClssID_3	CMCS	CNSC	CRKS	CUBPWS_2	CUBPWS_3	CXSC	CZCWS_2	CZCWS_3	GTC	GTC_2	GTC_3	HTA	ISCTMP_2	ISCTMP_3	ISYC_2	ISYC_3	LTA	S. Std.	TCDCNWS2	TCDCNWS3	TDZ	WTA	GICAT	GIREM	giic
50.00	6.00	50~	21.00	27.00	75.00	55.0	38.10	25.0~	11.00	36.0	M5	2.50	105.00~	1	0.62	CAMFIX~	C~	006~	-~	M~	S~	401-02~	CCS~	01~	C~	0500~	$$$$~	ZYL~	01~	F~	6000~	h6~	Y~	1~	CAMFIX To Cylindric~	3~	-~	-~	CCS01C0500$$$$~	-~	-~	ZYL01F6000h$06~	-----~	-~	71EAD3871D313~	-~	-~	4~	1~	-~	-~	-~	1~	-~	-~	ADPRS_MCCS01_WZYL01~	-~	-~	~	-~	-~	-~	-~	75.00~	CAMFIX~	-~	-~	-~	~	4561470		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
4561470		3	0	136				<a href="javascript:OpenDxf('4561470', 'C5 SRKIN 6X75' , 'IscarDxf' , '4561470-C5 SRKIN 6X75');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4561470&itemDesc=C5 SRKIN 6X75"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4561470&itemDesc=C5 SRKIN 6X75"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
The adjustment screw has an internal coolant hole
Use only inductive heating device for SRKIN holders
For shrink units information, Click on "More Info"

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required


4503915	PRESET M5X18B	SRKIN preset screw	Details
4561605	COOLING TUBE C5 (Optional, should be ordered separately)	Cooling tube
3313025	WRENCH COOL TUBE C5 (Optional, should be ordered separately)	Cooling tube wrench
