ISCAR Cutting Tools - Metal Working Tools - C#-SRKIN : 4561492 - C4 SRKIN 10X75
Geometry Checker ×

Family Designation: C#-SRKIN Thermal shrink chucks with integral CAMFIX (ISO26623-1 standard) tapered shanks, for solid carbide, HSS and steel tools with h6 tolerance.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  COOLANT THROUGH TOOL  G2.5/SIZE 50,63=20K
Item Designation: C4 SRKIN 10X75
DCONMS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS THID Key  OAL CDI  CSP  CCMS TDZ GICATGIREMgiic
40.0010.0024.0032.0075.0055.050.8011.0042.0M84.0099.00~10.491~CCS01C0400$$$$~-~4561492 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4561492 30128<a href="javascript:OpenDxf('4561492', 'C4 SRKIN 10X75' , 'IscarDxf' , '4561492-C4 SRKIN 10X75');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4561492&itemDesc=C4 SRKIN 10X75"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4561492&itemDesc=C4 SRKIN 10X75"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
The adjustment screw has an internal coolant hole
Use only inductive heating device for SRKIN holders
For shrink units information, Click on "More Info"
3D Representation
Assembly Video

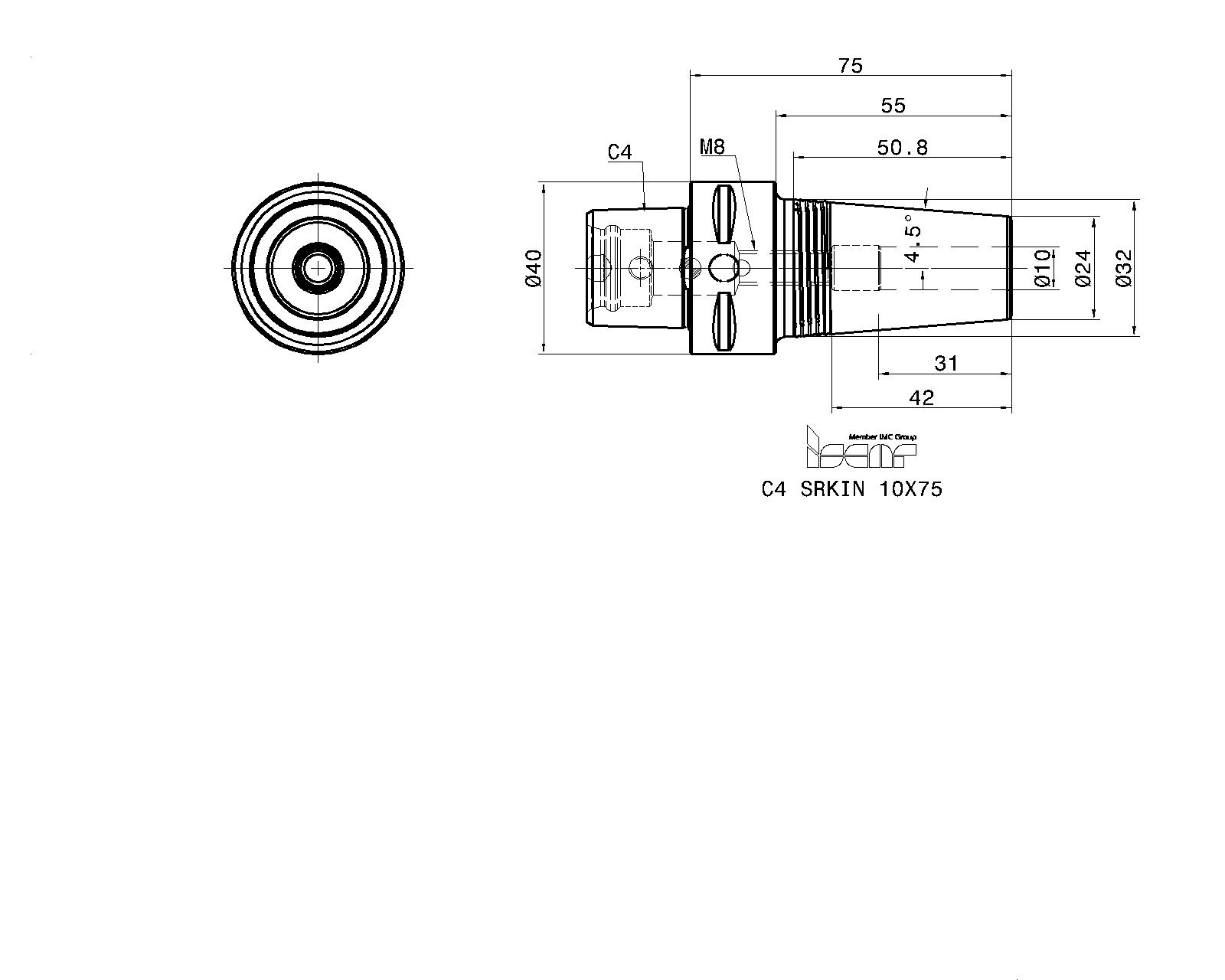

2D Representation
  Spare Parts
7007533PRESET CX M8X16Preset screw
Details
4561604COOLING TUBE C4
(Optional, should be ordered separately)		Cooling tube
3313024WRENCH COOL TUBE C4
(Optional, should be ordered separately)		Cooling tube wrench
