ISCAR Cutting Tools - Metal Working Tools - MULTI-CLAMP C# : 4561516

Geometry Checker ×

Family Designation: MULTI-CLAMP C#

Rotary clamping fixtures for CAMFIX (ISO 26623-1) tapered shank toolholders.

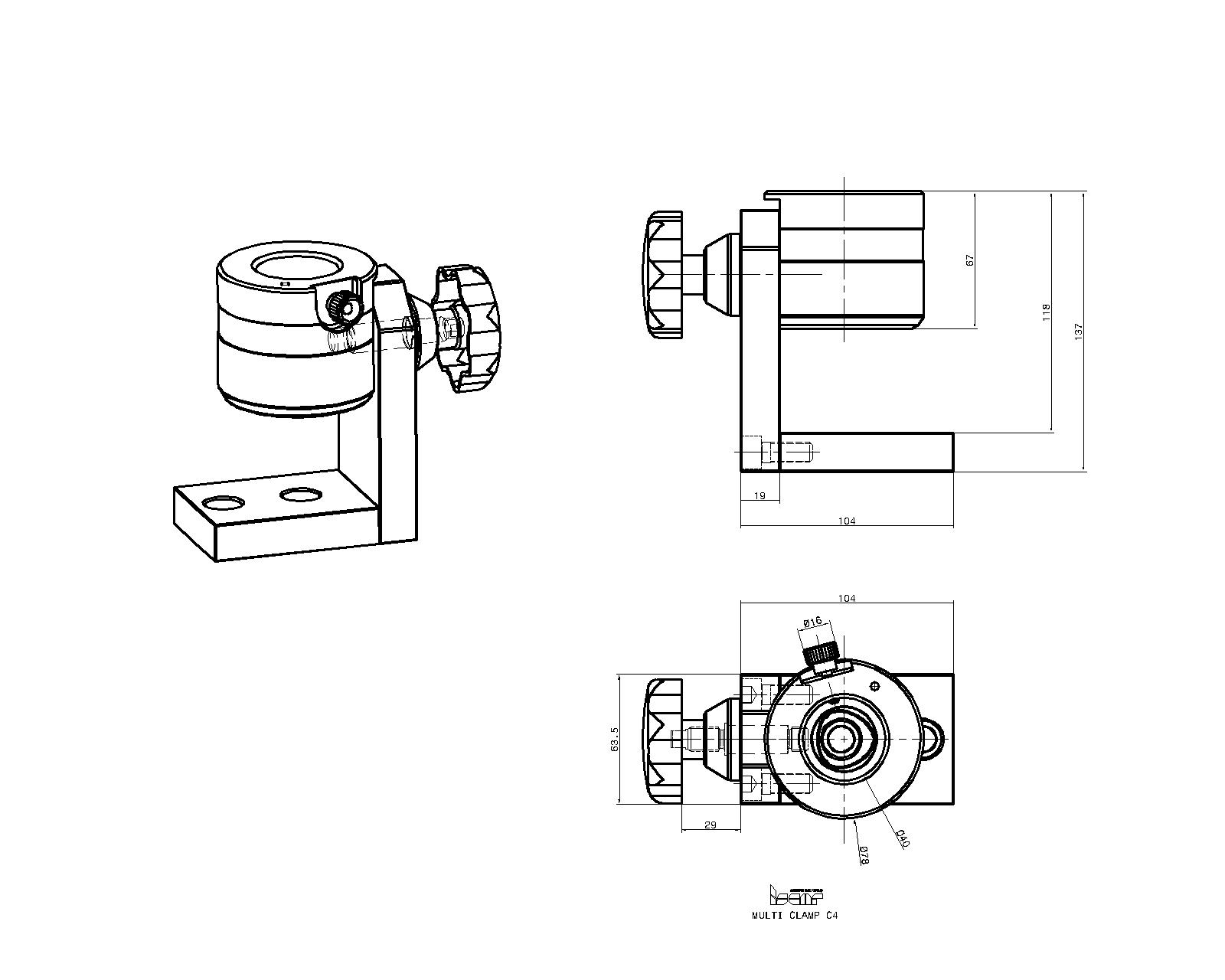

Representative Image

Item Designation: MULTI CLAMP C4

S. Std.	SS	d2	D1	L2	H	H2	H3	b	L5	D4	DCONMS	GICAT	GIREM	giic
C4	40	40.00	78.00	67.00	137.0	118.0	19.0	104.0	40.00	12.50	40.00~	4561516		0

Catalog No	Files Package	GISC	Add to favorites	AvailEU	AvailFarEast	Stock Availability US EU E. Asia	GTC	DXF	StockPerUser
4561516		1		216	0		<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=0&stplFolder=0&p21=0&cat=4561516&itemDesc=MULTI CLAMP C4"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'GTC', 'ItemPage');"></a>	<a href="javascript:OpenDxf('4561516', 'MULTI CLAMP C4' , 'IscarDxf' , '4561516-MULTI CLAMP C4');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>

Items Per Package : 1
