ISCAR Cutting Tools - Metal Working Tools - TR45 MAHDR-#-XL-JHP : 4715573

Geometry Checker ×

Family Designation: TR45 MAHDR-#-XL-JHP

Toolholders for TRAUB TNK45 / TNK 65 machines with directed internal coolant for MODULAR-GRIP-XL adapters.

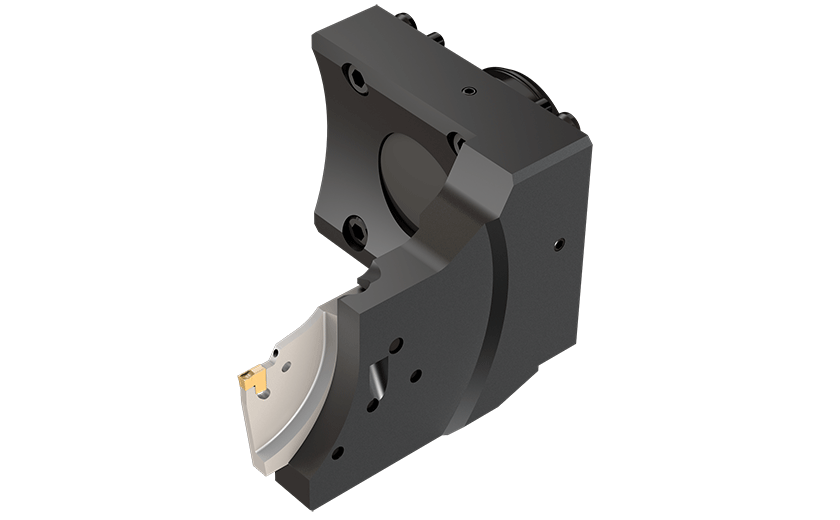

Representative Image

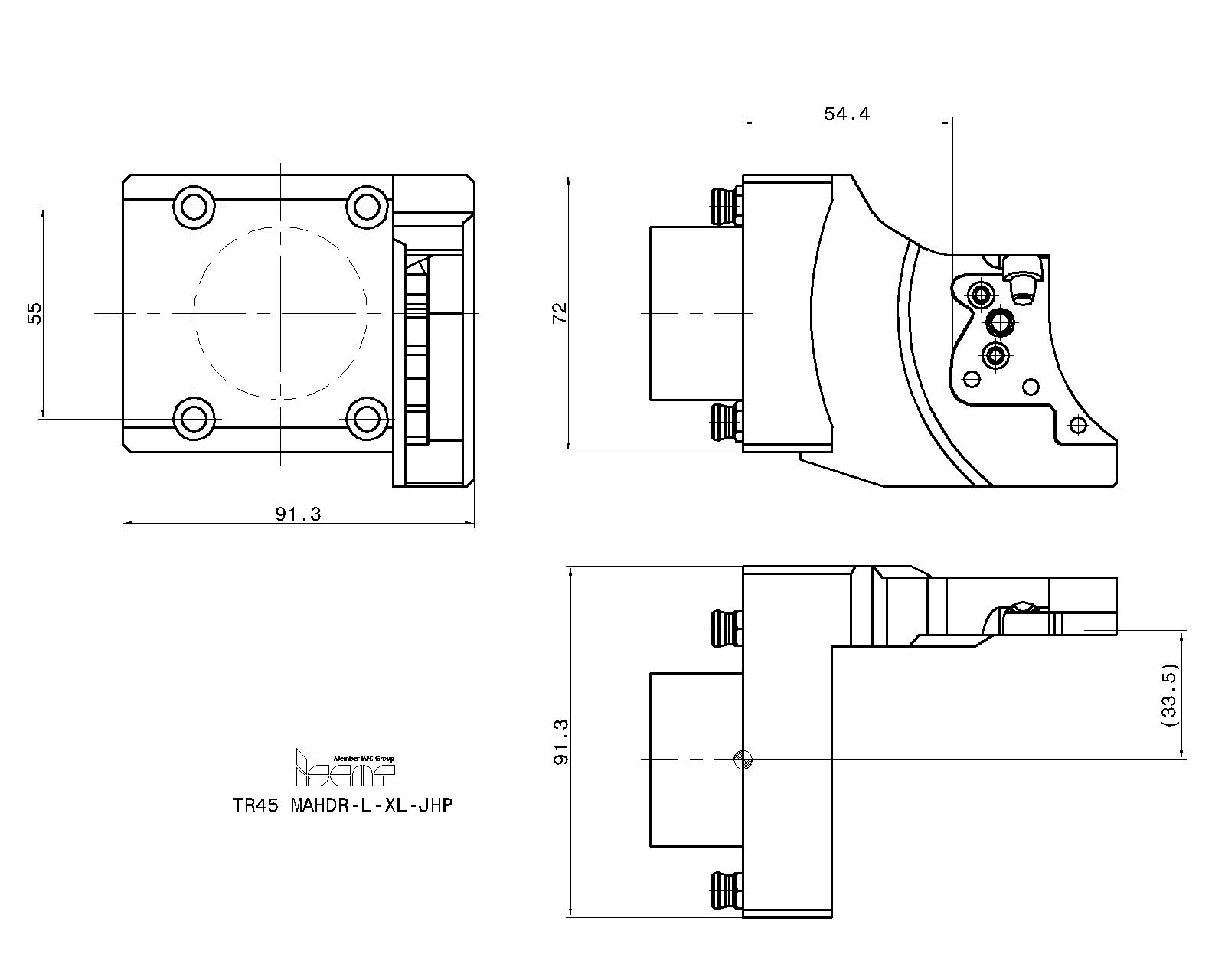

Item Designation: TR45 MAHDR-L-XL-JHP

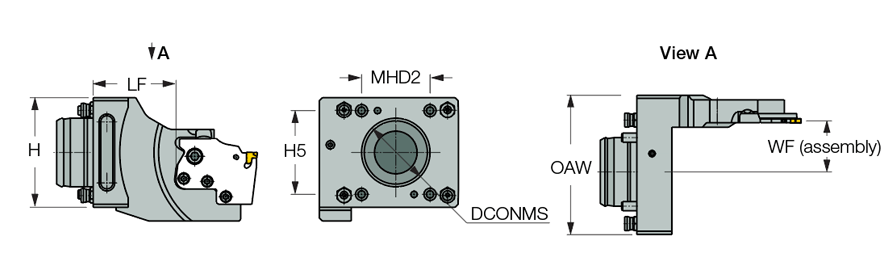

H	OAW	H5	MHD2	DCONMS	LF	WF	HAND	CSP	GICAT	GIREM	giic
72.0	91.50	55.00	45.0	45.00	54.40	33.50	L~	1~	4715573		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4715573		3	0	0				<a href="javascript:OpenDxf('4715573', 'TR45 MAHDR-L-XL-JHP' , 'IscarDxf' , '4715573-TR45 MAHDR-L-XL-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4715573&itemDesc=TR45 MAHDR-L-XL-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4715573&itemDesc=TR45 MAHDR-L-XL-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>

Items Per Package : 1
