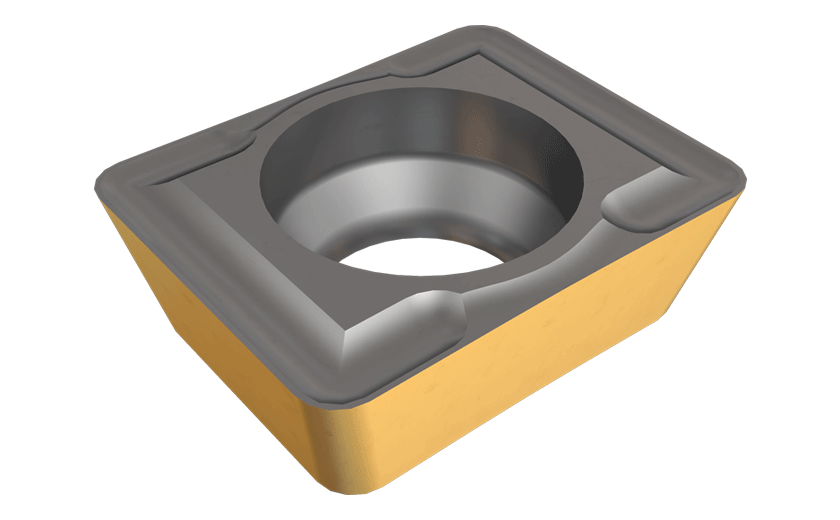

Family Designation: AOMT/AOGT

Inserts for DR drills with DT chipformer, for general applications at medium-to-high feed rates and HD chipformer for carbon steel and soft materials.

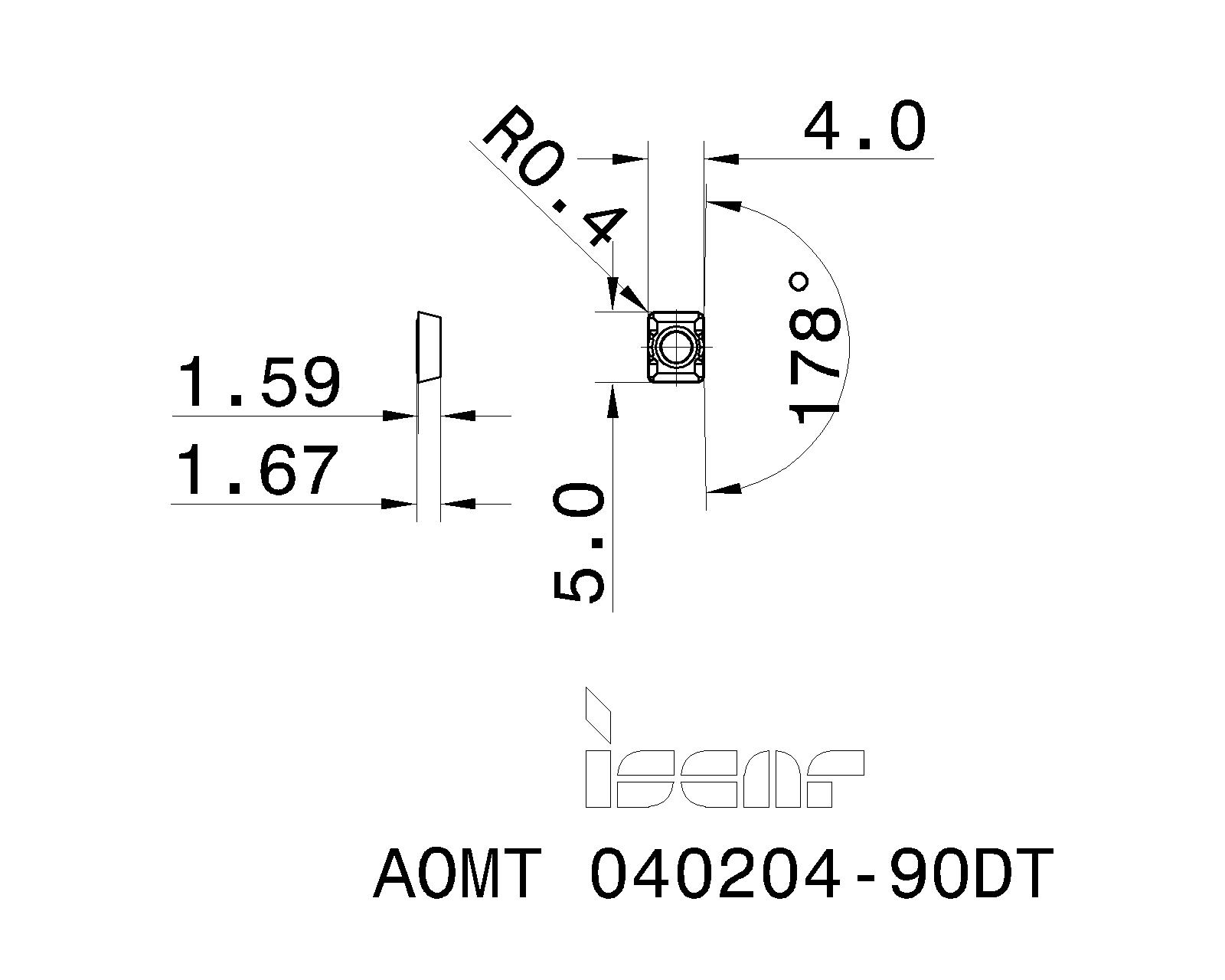

Item Designation: AOMT 040204-90DT

L	S	RE	CBMD	Mod	INSL	ISYC	CEDC	SC	Ins. ftr	ISCTMP		ClssID	GRDMFG	GTC	IIC	LOGH	LOGL	LOGW	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
4.00	1.60	0.40	DT~	HM200~	5.00	201-04~	2~	L~	T~	~	0.00~	71DD68D91938A~	IC1008~	NSCDRL_SD~	IS$$215341778819530~	0.00~	0.00~	0.00~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	TiAlN ~	5507955		3

Catalog No	Grade & Vc	AvailUSA	AvailEU	DXF	P21	ITA
5507144	IC1008	2560	20480	<a href="javascript:OpenDxf('5507144', 'AOMT 040204-90DT' , 'IscarDxf' , '5507144-AOMT 040204-90DT');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5507144&itemDesc=AOMT 040204-90DT"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:window.open('https://www.iscar.com/ITA?sid=77&item=5507144&lang=EN','','width=1400,height=800')"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
5507954	IC808	6080	57920	<a href="javascript:OpenDxf('5507954', 'AOMT 040204-90DT' , 'IscarDxf' , '5507954-AOMT 040204-90DT');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5507954&itemDesc=AOMT 040204-90DT"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:window.open('https://www.iscar.com/ITA?sid=77&item=5507954&lang=EN','','width=1400,height=800')"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
5507955	IC908	6192	52960	<a href="javascript:OpenDxf('5507955', 'AOMT 040204-90DT' , 'IscarDxf' , '5507955-AOMT 040204-90DT');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5507955&itemDesc=AOMT 040204-90DT"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:window.open('https://www.iscar.com/ITA?sid=77&item=5507955&lang=EN','','width=1400,height=800')"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 10
Used on 12-13.5 mm DR drills

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
