Family Designation: SCD-AP3 (3xD)

DIN 6537 solid carbide drills without coolant holes, drilling depth 3xD.

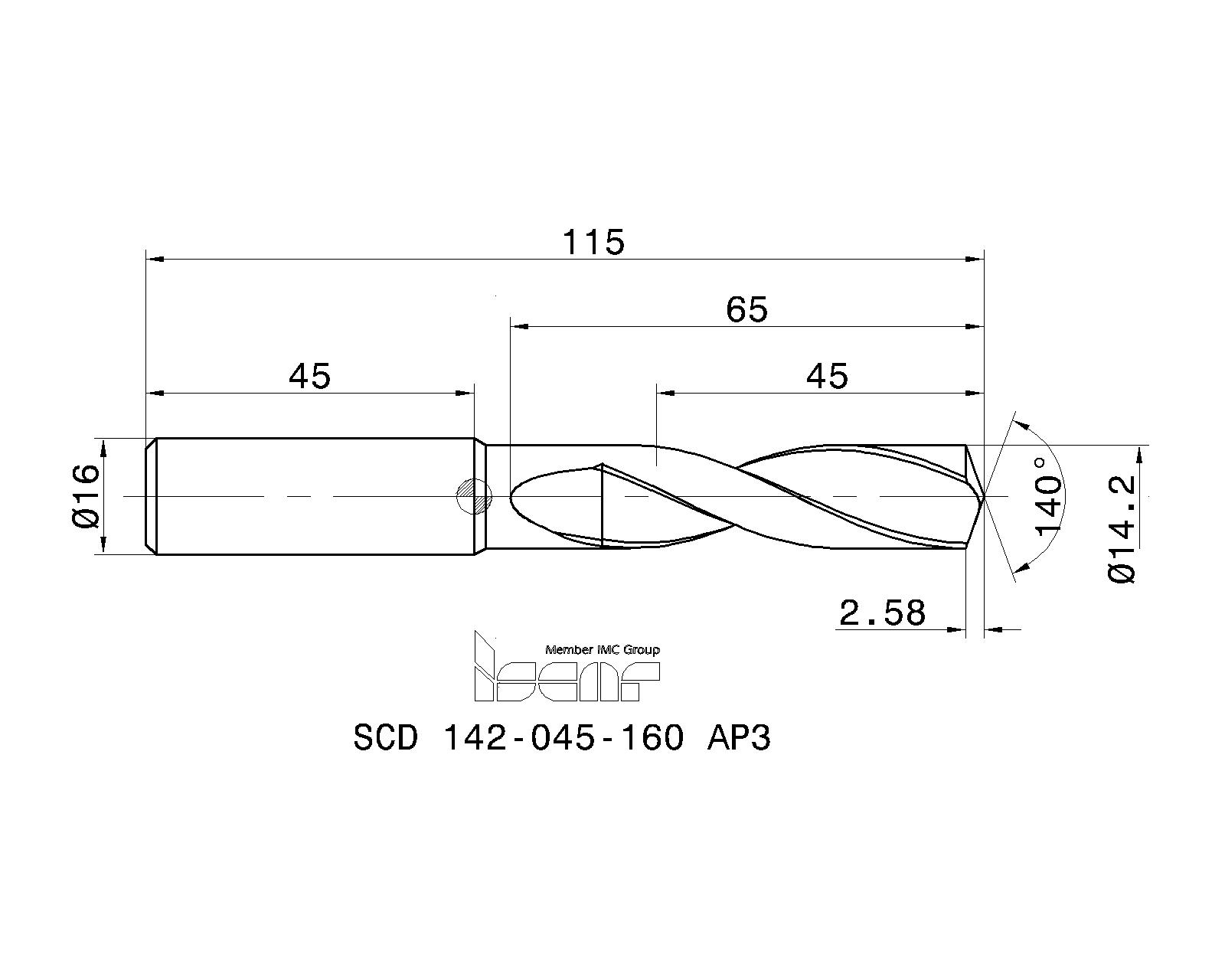

Item Designation: SCD 142-045-160 AP3

DC	DCONMS	LU	LCF	OAL	LS	FTDZ	PL	ZEFF	CBMD	NOF	CSP	HAND	CCMS	GRDMFG	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
14.20	16.00	45.0	65.0	115.00	45.0	-	2.580	2~	P~	2~	0~	R~	ZYL01G1600h$06~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5530428		1

Catalog No	Grade & Vc	Alternative	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA	StockPerUser
5530428	IC908				0	0	0				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5530428&itemDesc=SCD 142-045-160 AP3"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=P&cat=5530428&itemDesc=SCD 142-045-160 AP3"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=5530428&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
