Family Designation: SCD-ACP5 (5xD)

Solid carbide drills with coolant holes. Drilling depth 5xD.

COOLANT THROUGH TOOL

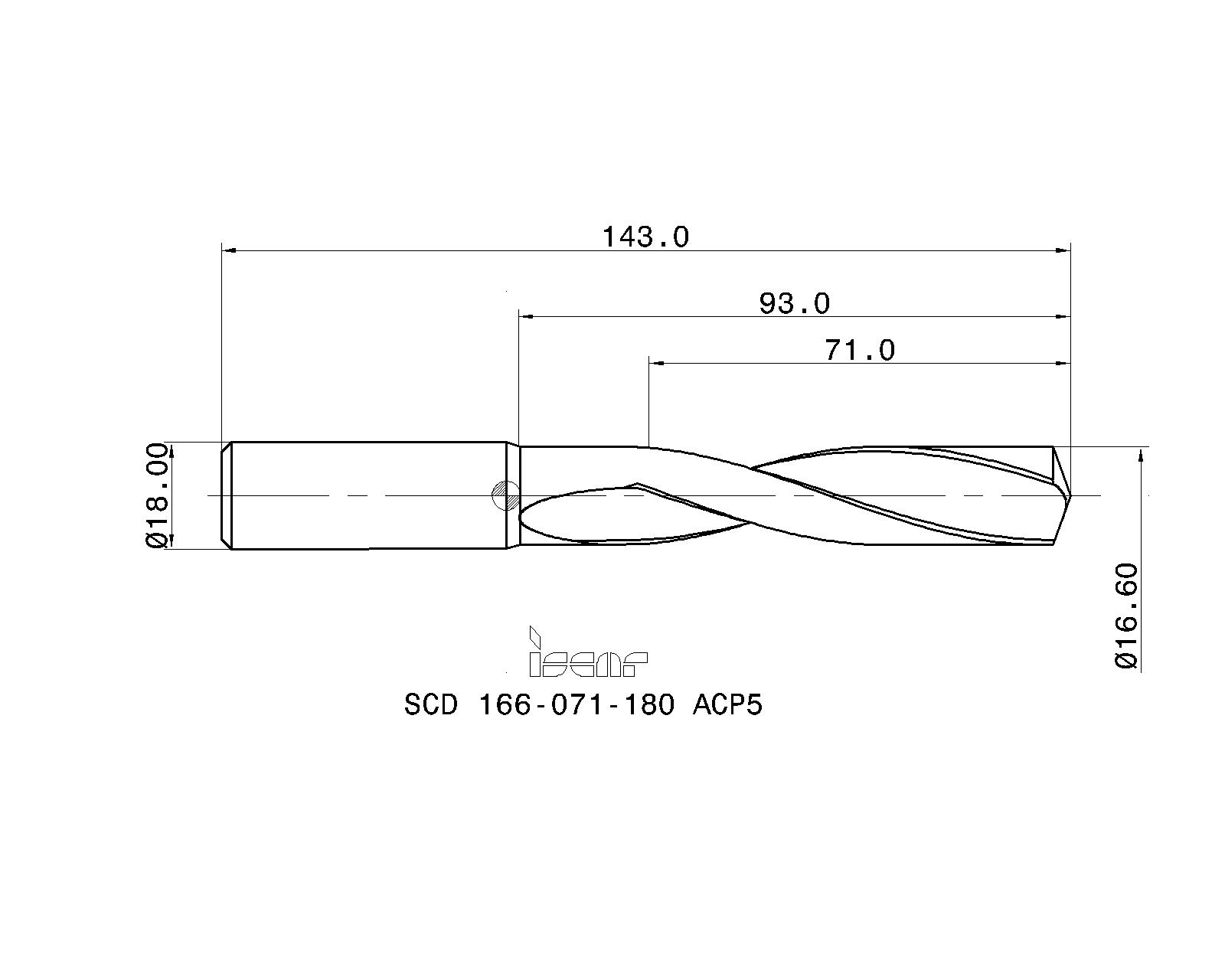

Item Designation: SCD 166-071-180 ACP5

DC	DCONMS	LU	LCF	OAL	FTDZ	CBMD	CSP	ZEFF	LS	HAND	NOF	CCMS	PL	GRDMFG	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
16.60	18.00	71.0	93.0	143.00		G~	1~	2~	48.0	R~	2~	ZYL01G1800h$06~	3.020	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5531862		1

Catalog No	Grade & Vc	Alternative	ITA	Files Package	AvailUSA	AvailEU	AvailFarEast	Add to favorites	P21 Properties File	Add to Assembly	STP	Stock Availability US EU E. Asia	P21	ITA	StockPerUser
5531862	IC908				0	0	0				<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5531862&itemDesc=SCD 166-071-180 ACP5"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=P&cat=5531862&itemDesc=SCD 166-071-180 ACP5"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>	<a href="javascript:disblayChooseApp1('https://www.iscar.com/ITA?item=5531862&lang=EN&sid=');"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
