Family Designation: TPKN/TPKR

General use milling inserts. The -42 design has an improved tool life. The -HS has a serrated cutting edge for chip splitting and reduced chatter, the -76 has ribs along the cutting edge for reduced heat transfer in heavy machining.

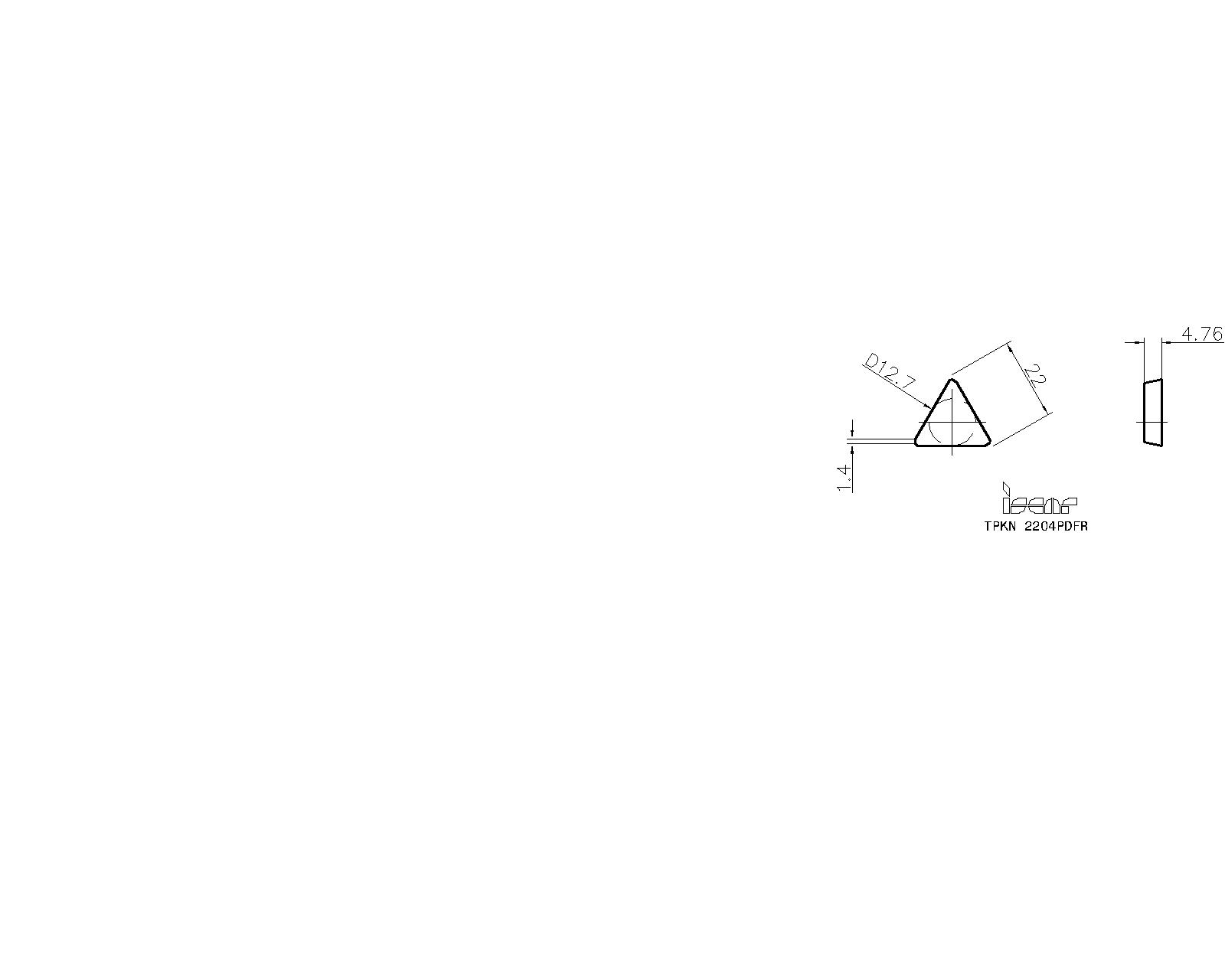

Item Designation: TPKN 2204PDFR

IC	L	S	BS	APMX	CBMD	HAND	CEDC	fz (min)	fz (max)	SC	CNC	COATP	GRDMFG	IFS	NIS	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
12.70	22.00	4.76	1.40	15.00~	~	R~	3~	0.10	0.15	T~	3~	OTH~	IC20 ~	1~	1~	0~		Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	Uncoated ~	5600404		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	Add to favorites	P21 Properties File	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	P21	StockPerUser
5600404	IC20			1	1120				<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5600404&cat=5600404&itemDesc=TPKN 2204PDFR"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5600404&itemDesc=TPKN 2204PDFR"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5600404&itemDesc=TPKN 2204PDFR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
