Family Designation: TPKN/TPKR

General use milling inserts. The -42 design has an improved tool life. The -HS has a serrated cutting edge for chip splitting and reduced chatter, the -76 has ribs along the cutting edge for reduced heat transfer in heavy machining.

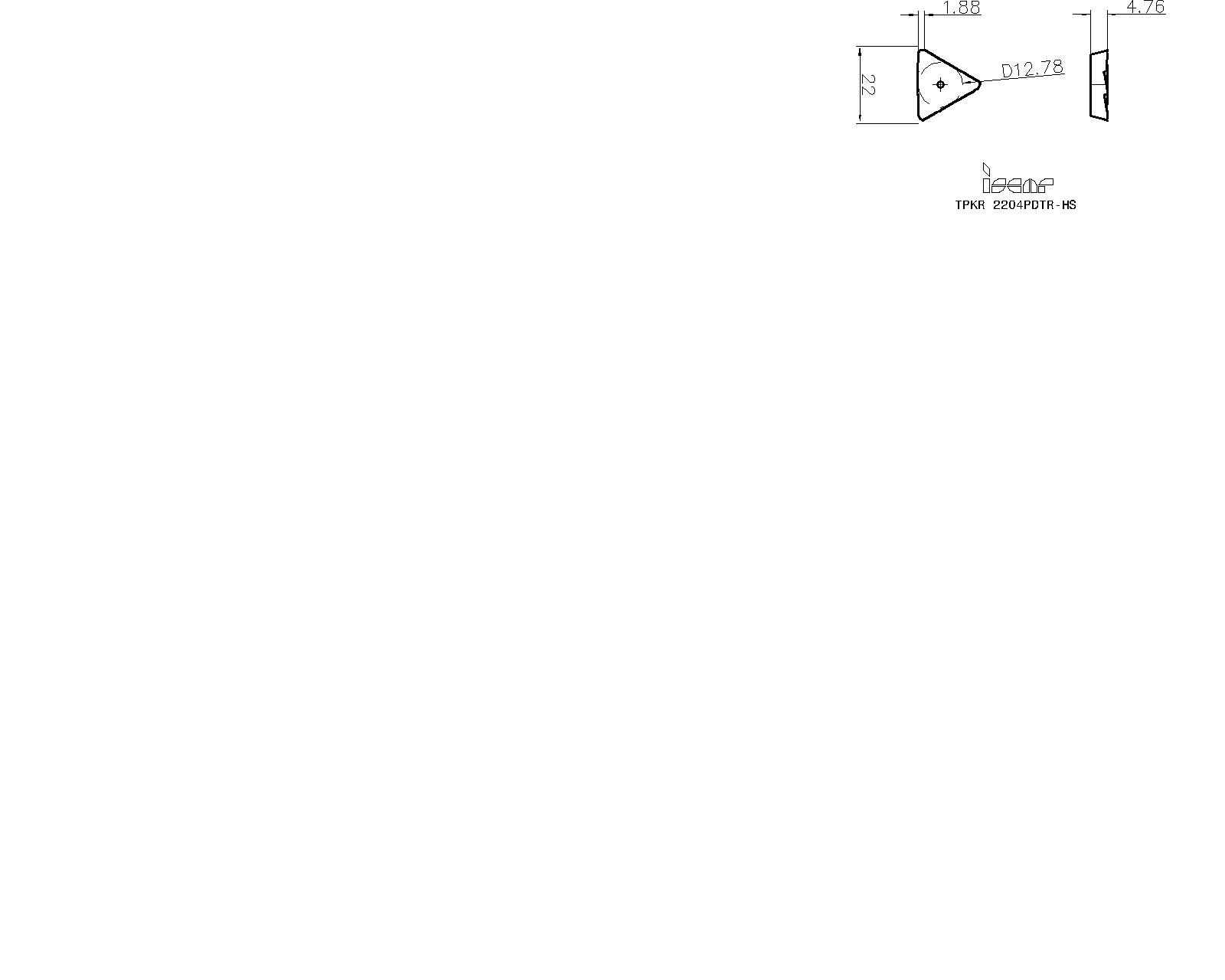

Item Designation: TPKR 2204PDTR-HS

IC	L	S	BS	APMX	CBMD	HAND	CEDC	fz (min)	fz (max)	SC	CNC	COATP	GRDMFG	IFS	NIS	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
12.70	22.00	4.76	1.88	15.00~	HS~	R~	3~	0.12	0.20	T~	3~	CVD~	IC250 ~	1~	1~	0~	Steel~	Stainless Steel~	Cast Iron~			Superalloys and titanium~	Carbide~	TiAlN ~	5667621		4

Catalog No	Grade & Vc	Alternative	GISC	GTC	STP	P21
5600786	IC250		3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5600786&cat=5600786&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5600786&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5600786&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
5600788	IC520M		1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5600788&cat=5600788&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5600788&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5600788&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
5604707	IC928	Alternative	1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5604707&cat=5604707&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5604707&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5604707&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
5667621	IC328	Alternative	1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5667621&cat=5667621&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5667621&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5667621&itemDesc=TPKR 2204PDTR-HS"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
