Family Designation: TPKN/TPKR

General use milling inserts. The -42 design has an improved tool life. The -HS has a serrated cutting edge for chip splitting and reduced chatter, the -76 has ribs along the cutting edge for reduced heat transfer in heavy machining.

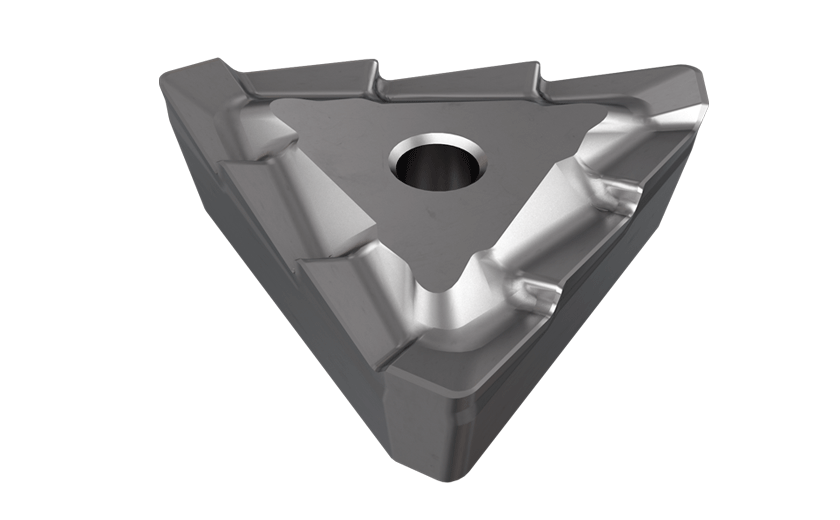

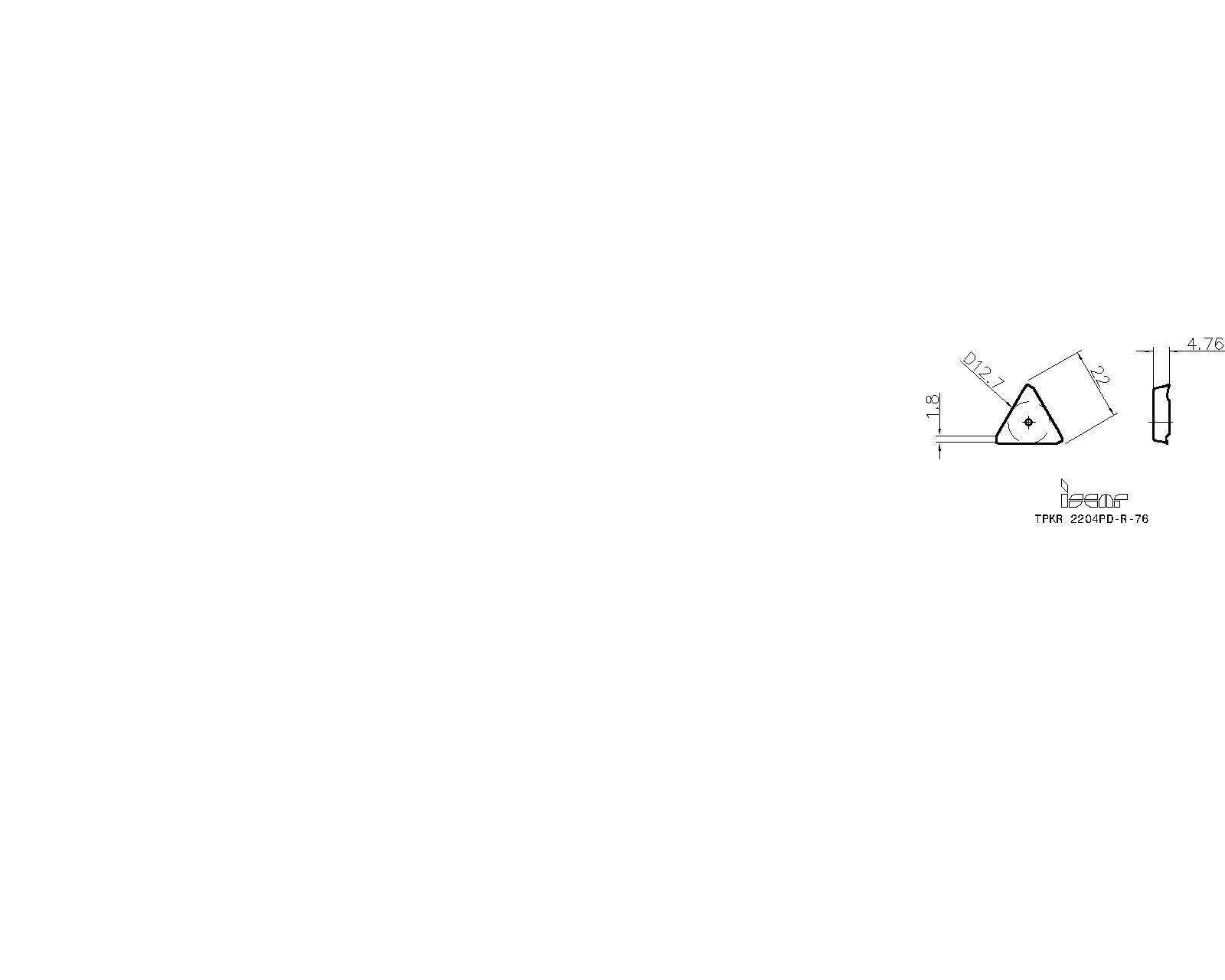

Item Designation: TPKR 2204PD-R-76

IC	L	S	BS	ap (min)	APMX	Fzm (min)	Fzm (max)	Fzh (min)	Fzh (max)	SF	CBMD	HAND	CEDC	fz (min)	fz (max)	e	ESP	SC	Ins. ftr		ClssID	CNC	COATP	GRDMFG	GTC	IFS	IIC	ISCTMP	ISYC	KRINS	LOGH	LOGL	LOGW	NIS	UST	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
12.70	22.00	4.76	1.80	3.00~	15.00~	0.10~	0.15~	0.00~	0.00~	~	76~	R~	3~	0.10	0.15	3~	U70~	T~	N~	0.01~	71DD68D8446CE~	3~	PVD~	IC328 ~	INSCMIL_$T~	1~	IS$$48053388359706~	GEMLI01021010~	201-01~	-~	0.00~	0.00~	0.00~	1~	C~	0~	Steel~	Stainless Steel~	Cast Iron~			Superalloys and titanium~	Carbide~	TiCN ~	5602097		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	Add to favorites	P21 Properties File	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	P21
5601816	IC328			1	2240				<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5601816&cat=5601816&itemDesc=TPKR 2204PD-R-76"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5601816&itemDesc=TPKR 2204PD-R-76"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5601816&itemDesc=TPKR 2204PD-R-76"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
5602097	IC950			1	0				<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5602097&cat=5602097&itemDesc=TPKR 2204PD-R-76"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5602097&itemDesc=TPKR 2204PD-R-76"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5602097&itemDesc=TPKR 2204PD-R-76"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 10
