Family Designation: HM90 ADKT 1505 HELI2000 milling inserts with various corner radii for general use.

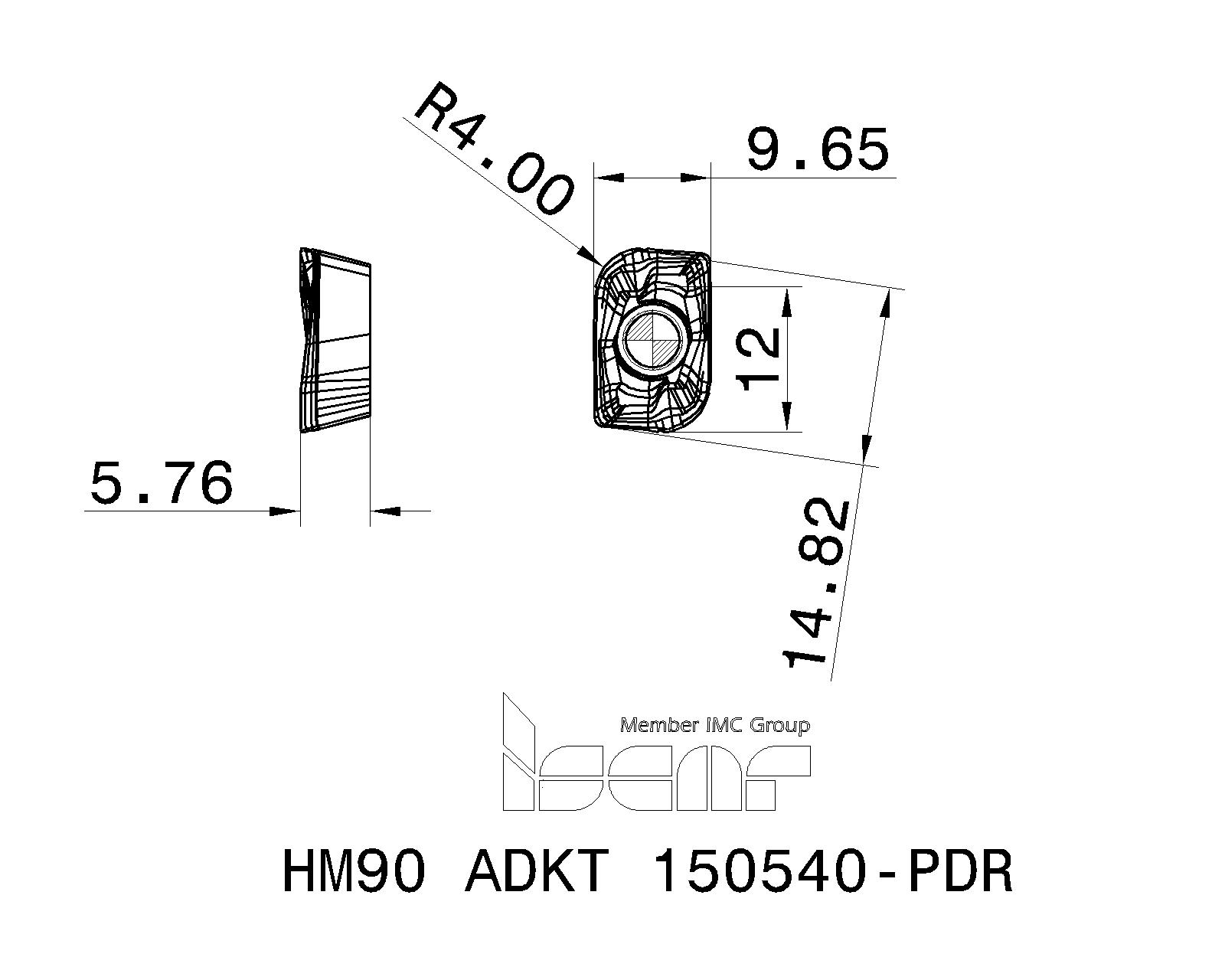

Item Designation: HM90 ADKT 150540PDR
W1 INSL APMX S RE BS Fig. fz
(min) 		fz
(max) 		CEDC SC AN CBMD CNC COATP D1 GRDMFG IFS L LE NIS SSC  WEP ApplMat StaSteelCastIronHardMa SupTit CutEdMatCoating GICATGIREMgiic
9.6514.8312.005.804.00-20.080.152~A~15.0~-~2~~~IC5600~3~14.83~13.90~1~15~0~Steel~Stainless Steel~Cast Iron~Hard Materials~Superalloys and titanium~Carbide~TiAlN ~5603478 2
Catalog NoGrade & VcAlternativeFiles PackageGISCAvailUSAAdd to favoritesP21 Properties FileAdd to AssemblyGTCStock Availability
   US        EU     E. Asia		STPP21StockPerUser
3427979 IC56006100<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3427979&cat=3427979&itemDesc=HM90 ADKT 150540PDR"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3427979&itemDesc=HM90 ADKT 150540PDR"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3427979&itemDesc=HM90 ADKT 150540PDR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
5603478 IC9081340<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5603478&cat=5603478&itemDesc=HM90 ADKT 150540PDR"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5603478&itemDesc=HM90 ADKT 150540PDR"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a><a href="FilesDownload.aspx?FileType=P&cat=5603478&itemDesc=HM90 ADKT 150540PDR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 10
For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified
Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter.
